Baxi Main Combi Eco User Manual

11

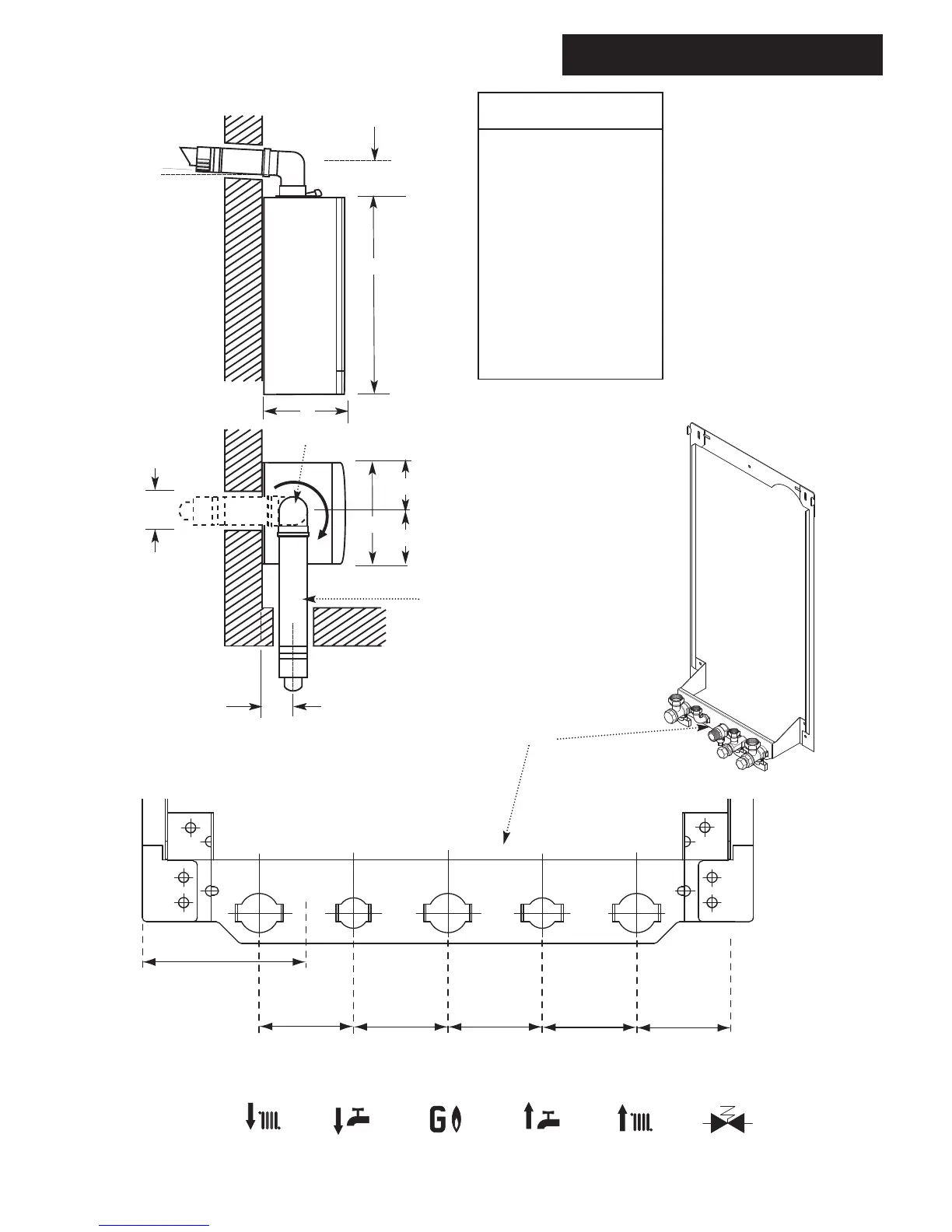

5.0 Dimensions and Fixings
© Baxi Heating UK Ltd 2011
Dimensions
A 780mm
B 345mm
C 450mm
D 116mm Ø Min.
F 145mm
G 132mm
210mm (80/125)
H 225mm
Domestic Hot
Water Outlet
(15mm)
Cold Water
Inlet
(15mm)
Heating
Return
(22mm)
Heating
Flow
(22mm)
Pressure Relief
Valve
(15mm)
Gas
Inlet
(22mm)
65 mm
65 mm 65 mm
65 mm
65 mm
127 mm
Condensate
Drain
Tap Rail
360° Orientation
Tube Ø 100mm
D
C
B
A
G
F
At Least 1.5
o
H
H
