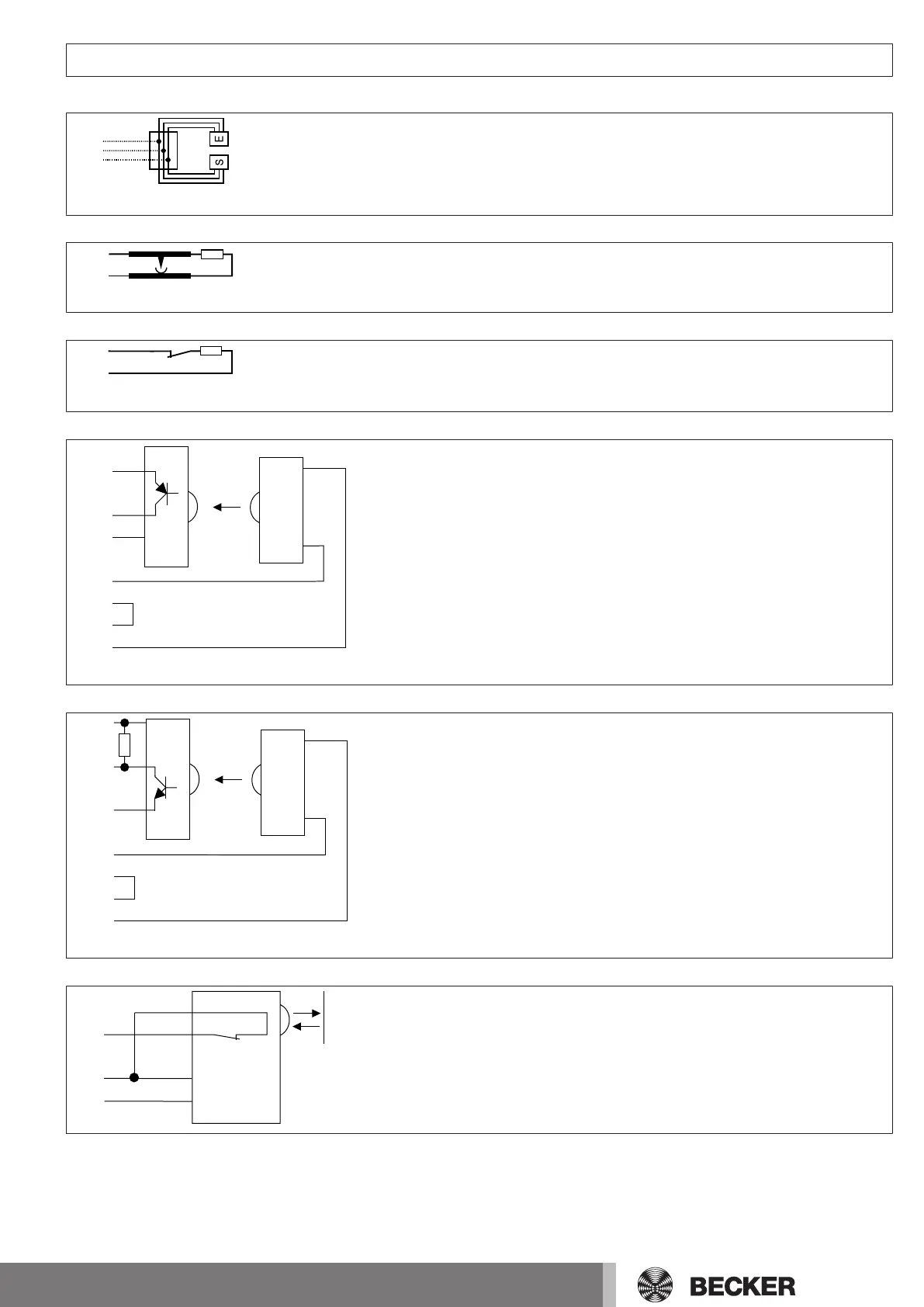

Circuit diagrams for electrical accessories
OSE connection
12 V
SE1
0 V
SE1 P.4E0: 2.00
OSE
Green = SE 1
White = 0 V
Brown = 12 V
Electric safety edge
8K2
12 V
SE1
SE1 P.4E0: 1.00
Pneumatic safety edge
12 V
SE1
8K2
SE1 P.4E0: 1.02
Safety device with PNP output
12 V
SE1
0 V
24V
0V
REL3 P.730: 17 / SE1 P.4E0: 1.04
24V
C
NO
0 V
Safety device with NPN output
12 V
SE1
0 V
24V
0V
8K2
REL3 P.730: 17 / SE1 P.4E0: 1.05
24V
C
NO
0 V
Reflector light barrier
1 0V
2 24V
3 NO
4 C
FE2
24V
0V
59
