Beckhoff CP6202 User Manual

Installation Instructions
Assembly dimensions
Build-in Panel PC CP62xx

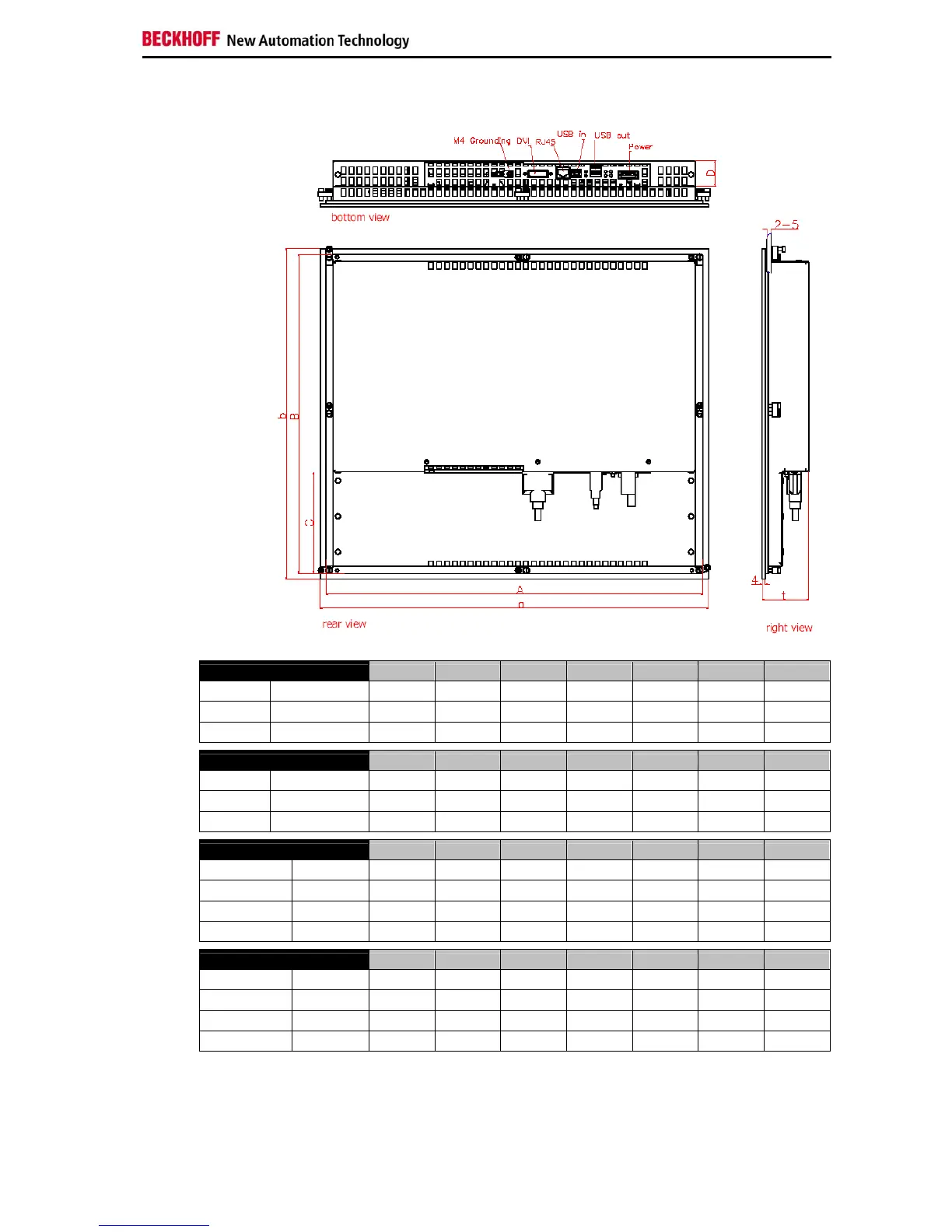

All dimensions are in mm, Similar picture.
Dimensions CP620x a b t A B C D
CP6201 12"-Display 330 275 58 316 261 24.6 32.5
CP6202 15"-Display 380 315 59 366 301 41.2 33
CP6203 19"-Display 455 390 67 441 376 77.2 33
Dimensions CP621x a b t A B C D
CP6211
12"-Display 372.2 342.2 58 358.2 328.2 67 32.5
CP6212
15"-Display 430.4 403 59 416.4 389 86.5 33
CP6213
19"-Display 508.4 463 67 494.4 449 116.2 33
Dimensions CP622x a b t A B C D
CP6221 12"-Display 414 336 58 400 322 51.5 32.5
CP6221-0002 12"-Display 444.2 336 58 430.2 322 51.5 32.5
CP6222 15"-Display 519.4 378.2 59 505.4 364.2 70.9 33
CP6223 19“-Display 567.4 434 67 553.4 420 93.5 33
Dimensions CP623x a b t A B C D
CP6231 12"-Display 410.4 378.2 58 396.4 364.2 115.7 32.5
CP6231-0002 12"-Display 430.4 378.2 58 416.4 364.2 115.7 32.5
CP6232 15"-Display 489.4 418.2 59 475.4 404.2 128.3 33
CP6233 19"-Display 508.4 543 67 494.4 529 195.8 33
