9Quick Start Guide8 MIX-SEQUENCER MODULE 1050
MIX-SEQUENCER MODULE 1050

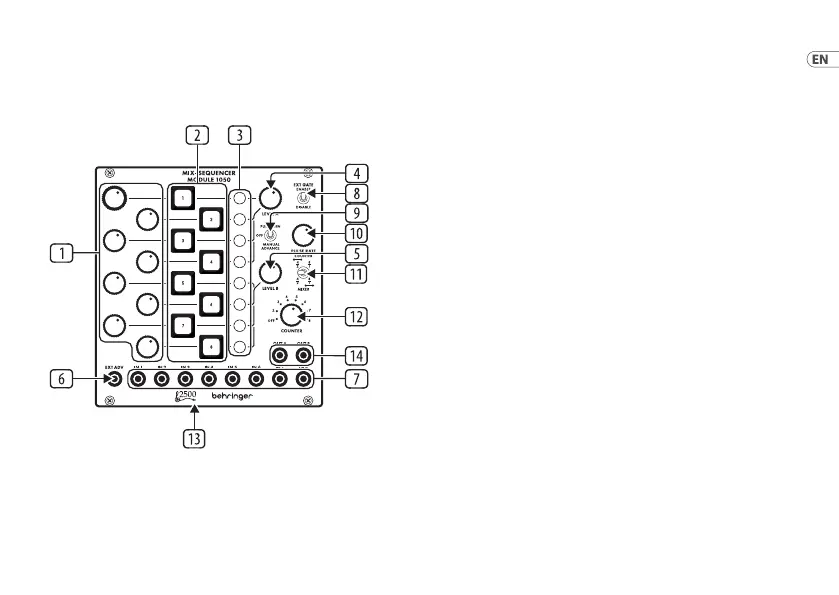

(EN) Controls
(1) CHANNEL LEVEL KNOBS –
Each knob controls the mix
level for its respective mixer
channel, and the knobs are
color-coded into two groups
of four channels each for
further sub-mixing with the
LEVEL A and LEVEL B knobs.
(2) CHANNEL ON/OFF
BUTTONS – These buttons
select and indicate which
mixer channels are on
or o. Press a button to
manually select and activate
a channel. When a channel
is active, the button will
light and the gate for that
channel will be open.
During a sequence, when an
individual channel is active
during its step, the button
for that channel will light for
the duration of the sequence
step. During a sequence, you
can press an on/o button to
manually turn on a channel,
and that channel will stay
on during the sequence until
you press the channel’s on/
o button again.
(3) EXCLUSIVE-ON BUTTONS
– To use this function, the
COUNTER rotary switch
should be set to OFF. Press
one of these red buttons to
solo that button’s respective
channel and preview the
signal. When a channel is
soloed, the CHANNEL ON/OFF
BUTTON for that channel will
light, and the other channels
will be muted. You may also
press the CHANNEL ON/OFF
BUTTONS on other channels
to hear those channels along
with the soloed channel.
When the mixer is in
4-channel mixer mode, the
EXCLUSIVE-ON BUTTONS 1-4
operate independently from
channels 5-8.
(4) LEVEL A – When in
4-channel mixer mode,
use this knob to adjust the
overall mix level for the
channel 1–4 group. When
8-channel mixer mode is
enabled, this knob is master
to all 8 input channels
(5) LEVEL B – When in
4-channel mixer mode,
use this knob to adjust the
overall mix level for the
channel 5-8 group. When
8-channel mixer mode is
enabled, this knob is master
to all 8 input channels.
