11 XENYX X1622USB/X1832USB/X2222USB/X2442USB User Manual
behringer.com
MUTE
Press the MUTE switch to mute the monitor send.
SOLO
The SOLO switch routes the monitor send to the solo bus (post-fader and
post-mute) or to the PFL bus (pre-fader and pre-mute). The position of the
MODE switch in the main section determines which of the buses is selected.
Stereo aux return control2.3.5
STEREO AUX RETURN 1
The STEREO AUX RETURN 1 control determines the level of this signal in the
main mix. If STEREO AUX RETURN 1 is used as eects return, this will determine
the level of the eects when mixed with any “dry” channel signal.
When used in this way, the effects device should be set at 100% effect.◊

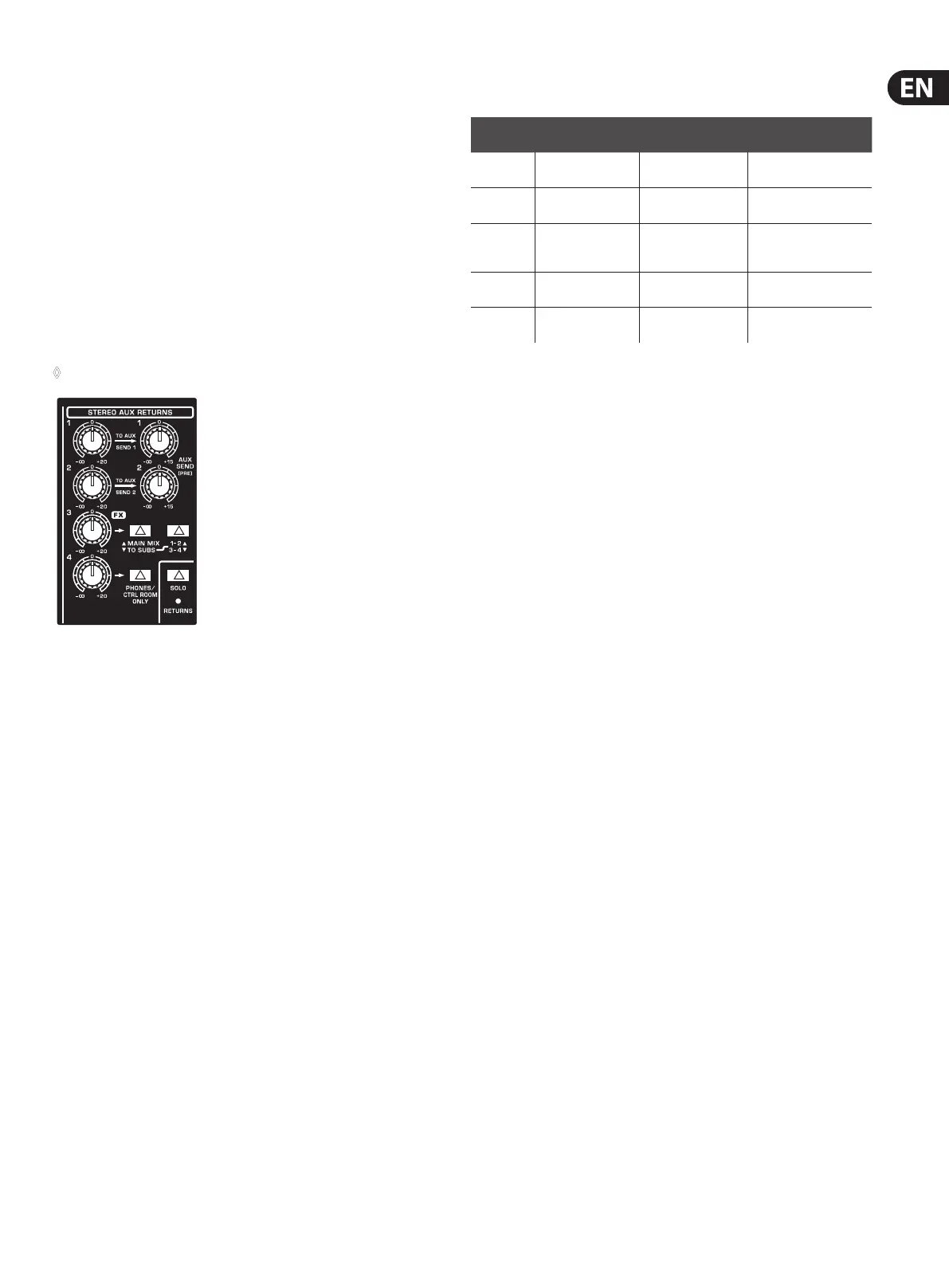

Stereo aux return and stereo aux return (to aux send) controlsFig. 2.12:
STEREO AUX RETURN 1/2 (TO AUX SEND)
The two right-hand STEREO AUX RETURN controls have a special function:
they can be used to add an eect to a monitor mix. An example follows
(X1622USB wired to an eects device):
Monitor mix with eect
In this instance, your eects device should be set up as follows: the AUX SEND 2
jack should be connected to the L/Mono input of your eects device, with its
outputs coming back into the STEREO AUX RETURN 1 jacks.
Connect the AUX SEND 1 jack output to the amplier of your monitor system.
The AUX SEND 1 master control determines the overall volume of the
monitor mix.
Using the STEREO AUX RETURN (TO AUX SEND) control, the eect signal can
now be blended into the monitor mix.
You can easily use the headphones distribution amplier BEHRINGER POWERPLAY
PRO HA4700/HA8000 to provide four (HA8000: eight) stereo headphone mixes for
your studio.
The following table shows which jacks on the console can be used for
this purpose.
External eects device
receives signal from...
External eects device
routes signal back to...
The eect signal reaches the
monitor mix via…
X1622USB AUX SEND 2
STEREO AUX
RETURN 1 connectors
STEREO AUX
RETURN 1 (TO AUX SEND 1) control
X1832USB AUX SEND 1
STEREO AUX
RETURN 2 connectors
MONITOR switch of the FX/AUX
2 RET
X2222USB AUX SEND 2
STEREO AUX
RETURN connectors
1 or 2
STEREO AUX
RETURN 1 (TO AUX SEND 1) control
X2442USB AUX SEND 2
STEREO AUX
RETURN 1 connectors
STEREO AUX
RETURN 1 (TO AUX SEND 1) control
optional: AUX SEND 1
STEREO AUX
RETURN 2 connectors
STEREO AUX
RETURN 2 (TO AUX SEND 2) control
Tab. 2.1: Connectors and controls for monitor mix with eect
STEREO AUX RETURN FX
On consoles X1622USB and X1832USB this is the STEREO AUX RETURN 2,
on consoles X2222USB and X2442USB this is the STEREO AUX RETURN 3.
Use the STEREO AUX RETURN FX control to determine the level of the signal
routed from the AUX RETURN FX jacks to the main mix. If nothing is connected
to these jacks, the output of the built-in eects module will appear.
MAIN MIX / TO SUBS
This switch routes the signal fed in via the STEREO AUX RETURN FX jacks either
to the main mix (not pressed) or to the submix (pressed).
On the X2442USB you can select which subgroup the signal is assigned to
(switches 1-2 / 3-4, to the right of MAIN MIX / TO SUBS).
SOLO RETURNS
Additionally, this model allows you to route the aux returns together to the
solo bus and the PFL bus. The LED lights up when Solo is on.
X2442USB
