User Manual for DP & DPD Beverage-Air
Rev. 05/20 Beverage-Air 9
Drawer models are shipped with the drawers already
installed in the cabinets. Drawers are designed with slides
which have locking mechanisms to prevent drawers from
coming o cabinets during normal opening and closing
operations.

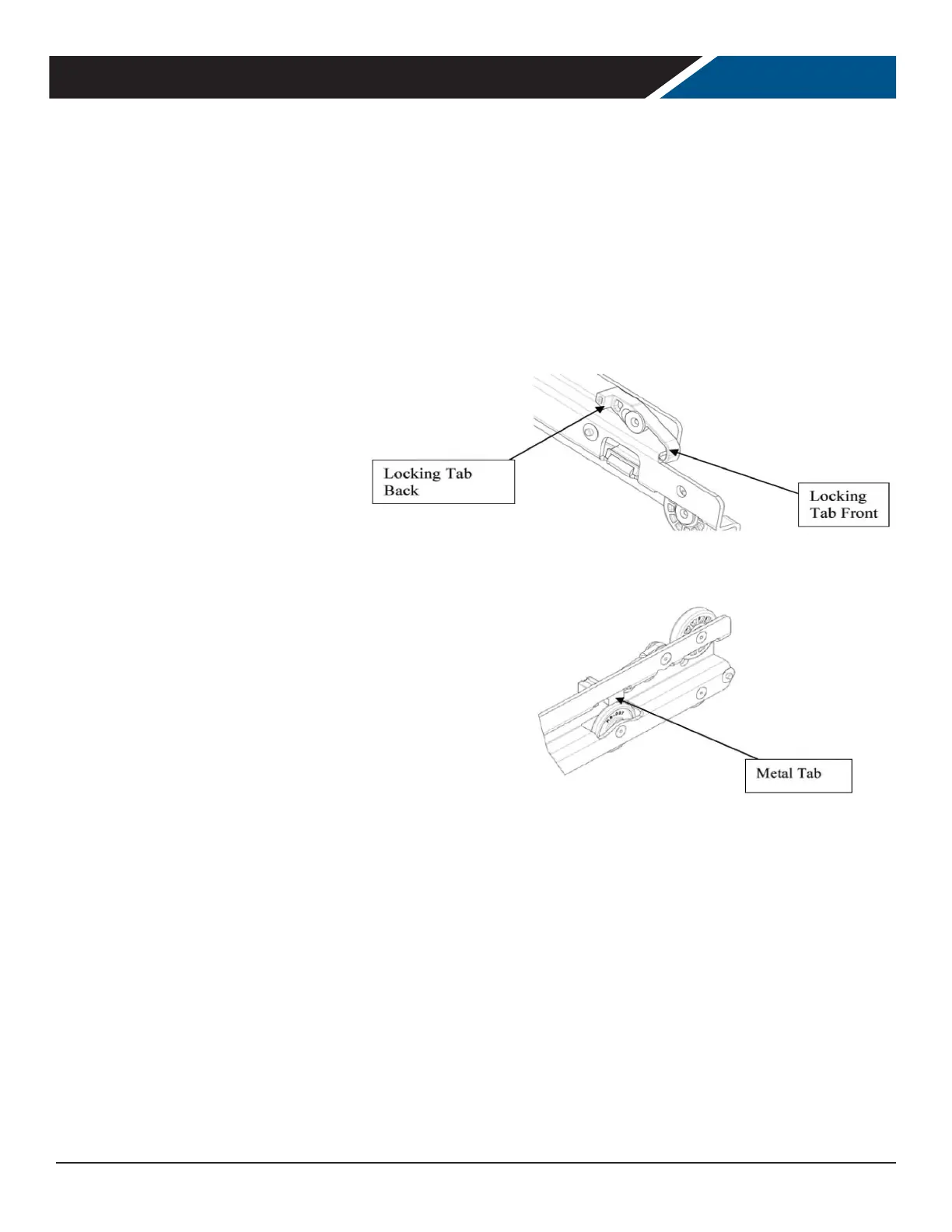

See Illustration:
Drawers and slides can be removed from a
cabinet for cleaning purposes. To remove
a drawer from a cabinet follow these
instructions:
1. Open the drawer to full extension
2. Push the white locking tabs forward
on both sides of the drawer
3. Press down the back of the tabs
4. Slide the drawer out of the cabinet
5. To remove the sliding member (Middle
slide), press the metal tab up and slide
it
6. To reinstall the sliding member, press the metal tab up
and slide it in
7. To reinstall drawer, push the locking tab forward and
press the back of the tab down
8. Align the drawer slide members and moving slide
members
9. Slide the drawer in and lock the slide by pushing the
front of the locking tab down and in
DRAWER MAINTENANCE
