16

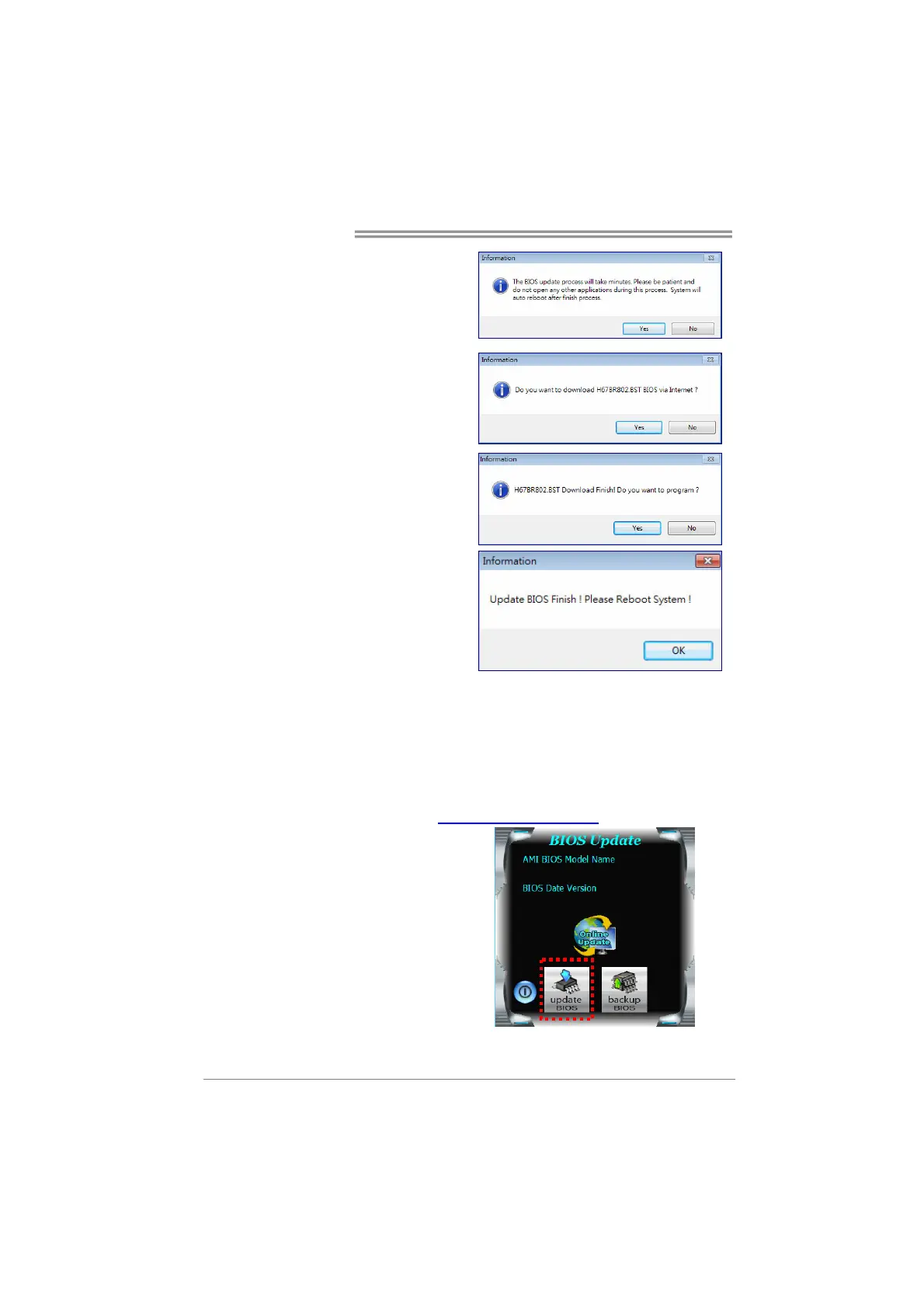

4. An open dialog will show up to
request your agreement to start the
BIOS update. Click Yes to start the
online update procedure.
5. If there is a new BIOS version, the
utility will ask you to download it.
Click Yes to proceed.
6. After the download is completed,
you will be asked to program
(update) the BIOS or not. Click Yes
to proceed.
7. After the updating process is
finished, you will be asked you to
reboot the system. Click OK to
reboot.
8. While the system boots up and the full screen logo shows up, press <DEL> key
to enter BIOS setup.
After entering the BIOS setup, please go to the Save & Exit, using the Restore
Defaults function to load Optimized Defaults, and select Save Changes and
Reset to restart the computer. Then, the BIOS Update is completed.
BIOS Update Utility (through a BIOS file)
1. Installing BIOS Update Utility from the DVD Driver.
2. Download the proper BIOS from http://www.biostar.com.tw/
3. Launch BIOS Update Utility and
click the Update BIOS button on
the main screen.

Biostar A68N-5200 Specifications

General

Form Factor	Mini ITX
Socket Type	Socket FT3
Chipset	AMD A68H
Maximum Memory	32GB
CPU	AMD A4-5000 APU
Memory Slots	2 x DDR3
Memory Speed	1600/1333 MHz
Expansion Slots	1 x PCIe 2.0 x16
Storage	2 x SATA 6Gb/s
USB Ports	4 x USB 3.0, 2 x USB 2.0
Video Output	HDMI, D-Sub
Integrated Graphics	AMD Radeon HD8330 Graphics
Audio	Realtek ALC662
LAN	Realtek RTL8111G
RAID Support	RAID 0, RAID 1
