Biostar G41U3G Setup Manual

G41U3G
3
SPEC
SATA Connector x4 Each connector supports 1 SATA device
Front Panel Connector x1 Supports front panel facilities
Front Audio Connector x1 Supports front panel audio function
CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)
System Fan Header x1 System Fan Power supply
Clear C MOS Header x1 Restore CMOS dat a to factory default
USB 2.0 Connector x2 Each connector supports 2 front panel USB 2.0 ports
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
VGA port x1
LAN port x1
USB 2.0 Port x2
USB 3.0 Port x2
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connect to D-SUB monitor
Connect to RJ-45 ethernet cable
Connect to USB 2.0 devices
Connect to USB3.0 devices (by Asmedia ASM1042)
and USB2.0/USB1.X devices (by Intel ICH7)
Provide Audio-In/Out and microphone connection
Board Size
192 (W) x 235 (L) mm
OS Support
Windows 2000 / XP / Vista / 7
Biostar reserves the right to add or remove support for
any OS with or without notice
1.4 R

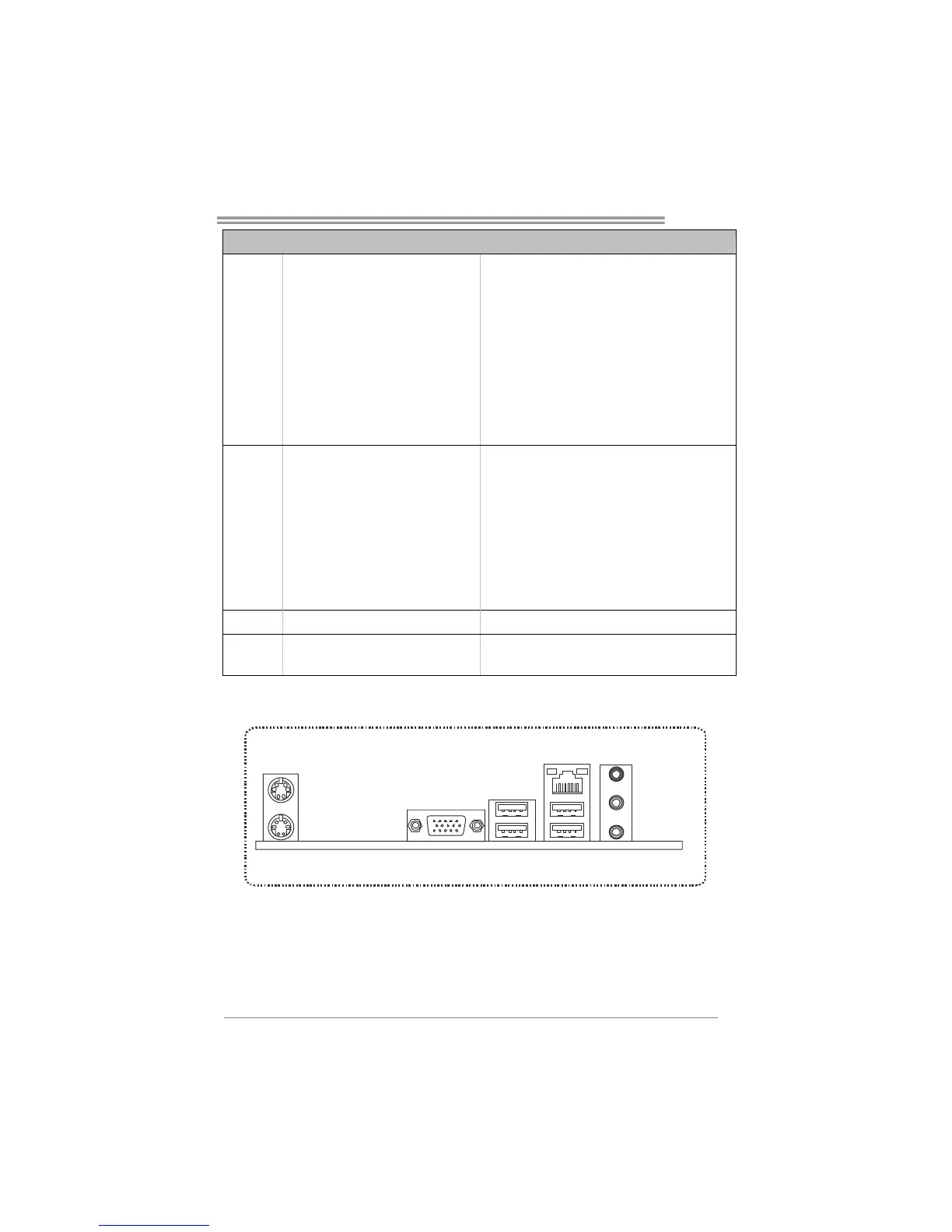

EAR PANEL CONNECTORS
PS/2
Mouse
PS/2
Keyboard
USB2.0X2
USB3.0X2
LAN
VGA
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
NOTE: Since the audio chip supports High Definition Audio Specification, the function of each
audio jack can be defined by software. The input / output function of each audio jack listed
above represents the default setting. However, when connecting external microphone to
the audio port, please use the Line In (blue) and Mic In (Pink) audio jack.
NOTE: USB3.0 ports are backward compatible with USB2.0/USB1.X devices. USB3.0 is
controlled by Asmedia ASM1042, but, USB2.0/USB1.X is controlled by Intel ICH7.

Biostar G41U3G Specifications

General

Brand	Biostar
Model	G41U3G
Category	Motherboard
Language	English
