H61B
3
SPEC
USB2.0 Connector x2 Each connector supports 2 front panel USB2.0 ports
S/PDIF out Connector x1 Supports digital audio out function
Printer Port Connector x1 Each connector supports 1 Printer port
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Rear Panel
I/O
PS/2 Keyboard / Mouse x1
VGA Port x1
Serial Port x1
LAN port x1
USB2.0 Port x4
Audio Jack x3
Connects to PS/2 Keyboard / Mouse
Connect to D-SUB monitor
Provide RS-232 Serial connection
Connect to RJ-45 ethernet cable
Connect to USB2.0 devices
Provide Audio-In/Out and Mic. connection
Board Size
210 (W) x 295 (L) mm
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove support
for any OS with or without notice

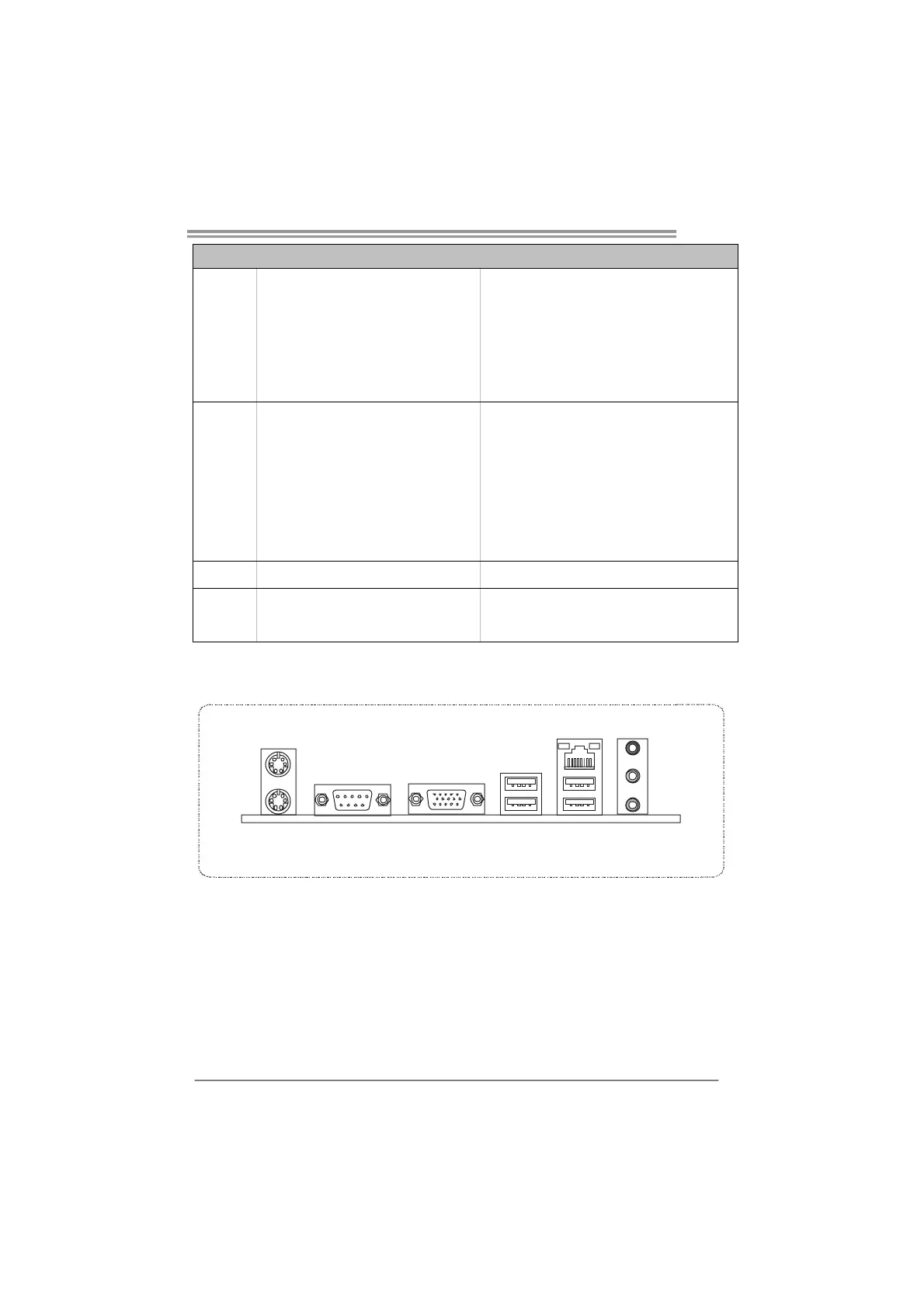

1.4 REAR PANEL CONNECTORS
USB2.0X2
LAN
VGA
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
PS/2
Mo us e
PS/2
Keyboard
USB2.0X2COM Port
NOTE: Maximum resolution:
VGA: 1920 x 1600 @75Hz
To Next Page
