Biostar Hi-Fi A70U3P User Manual

Hi-Fi A70U3P
11
2.6 Jumper Setting

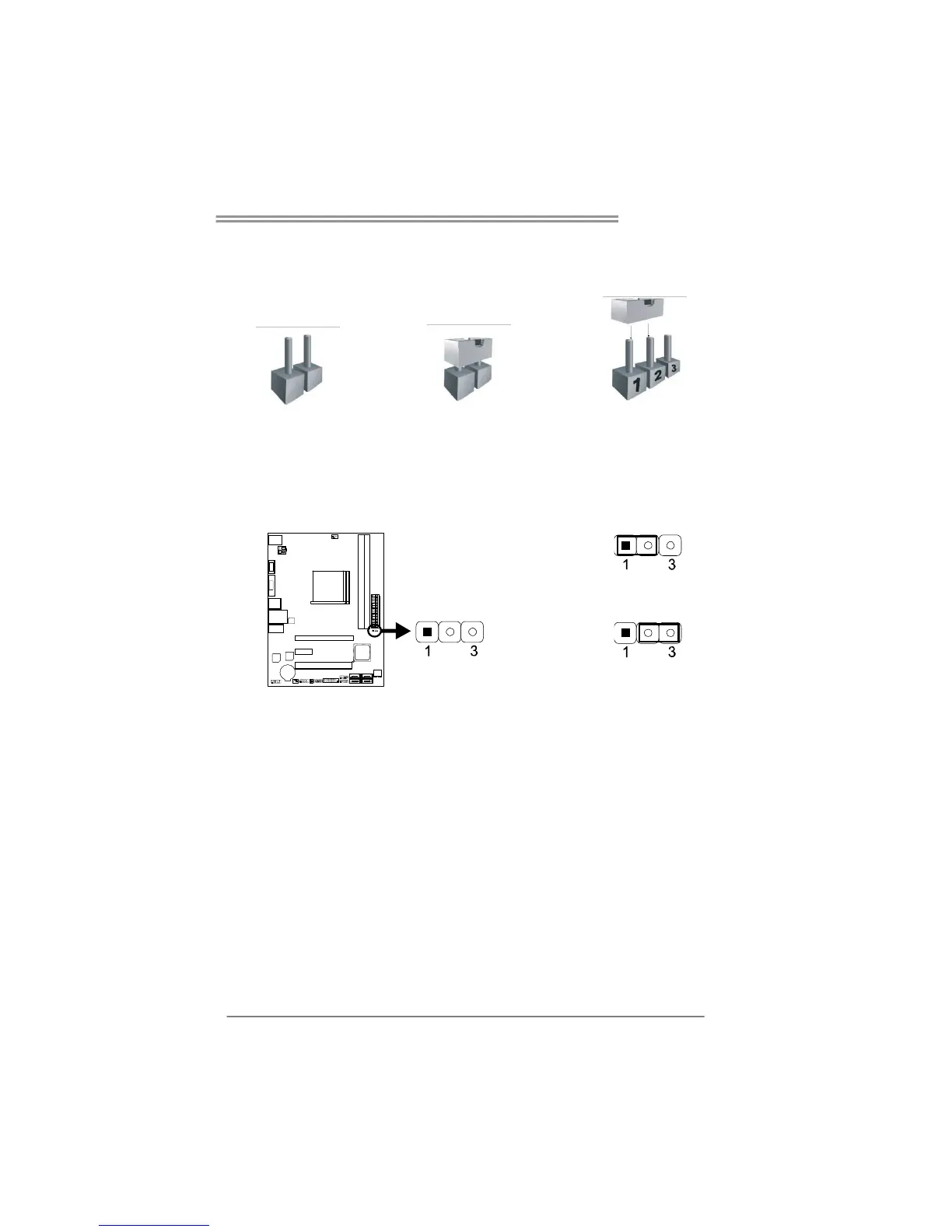

The illustration shows how to set up jumpers. When the jumper cap is placed on
pins, the jumper is “close”, if not, that means the jumper is “open”.
Pin opened Pin closed Pin1-2 closed
JCMOS1: Clear CMOS Header
Placing the jumper on pin2-3, it allows user to restore the BIOS safe setting and
the CMOS data. Please carefully follow the procedures to avoid damaging the
motherboard.
Pin 1-2 Close:
Normal Operation (default).
Pin 2-3 Close:
Clear CMOS data.
※
Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6.
Load Optimal Defaults and save settings in CMOS.

Biostar Hi-Fi A70U3P Specifications

General

Form Factor	Micro ATX
Chipset	AMD A70M
Socket	FM2+
Memory Type	DDR3
Memory Slots	2
Maximum Memory	32 GB
PCIe Slots	1 x PCIe 2.0 x1
SATA Ports	4 x SATA 6Gb/s
USB Ports	8 x USB 2.0
LAN	Realtek RTL8111 Gigabit LAN
