Biostar N68S3B Setup Manual

N68S3B
15

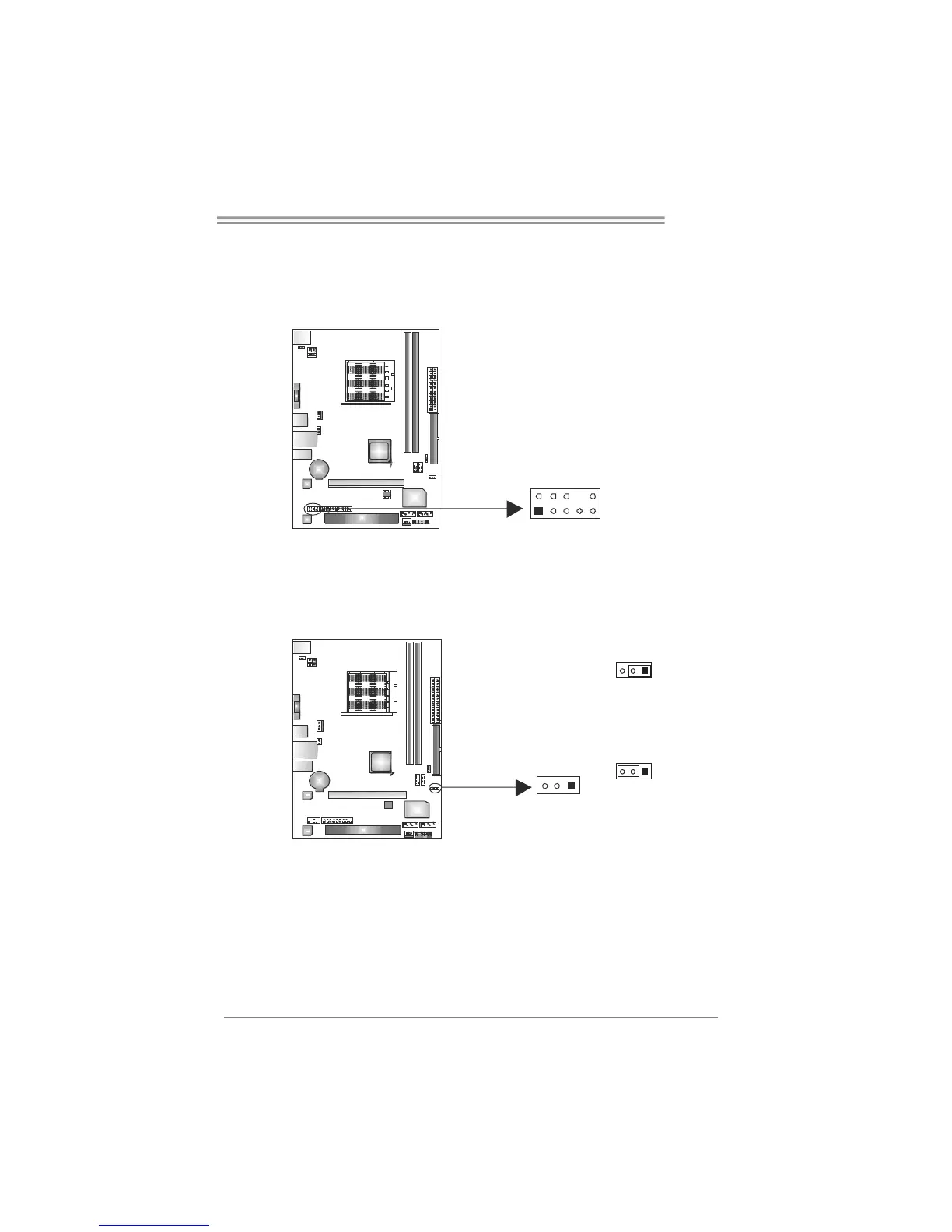

JAUDIOF: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. This header allows only HD audio front panel connector; AC’97 connector
is not acceptable.
Pin Assignment
1 Mic Left in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in
19
210
10 Jack Sense
JCMOS1: Clear CMOS Header
By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting
and the CMOS data, please carefully follow the procedures to avoid damaging
the motherboard.
31
Pin 1-2 Close:
Normal Operation
(default).
31
31
Pin 2-3 Close:
Clear CMOS data.
※ Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.

Biostar N68S3B Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Supported memory clock speeds	800, 1066, 1333 MHz
Processor socket	Socket AM3
Processor manufacturer	AMD
Maximum number of SMP processors	1
Power fan connector	Yes
USB 2.0 ports quantity	4
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Motherboard chipset	Nvidia MCP68S
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows XP/Vista/7
Graphics card	GeForce 7025
Maximum graphics card memory	512 MB
Parallel processing technology support	Not supported
RAID levels	0, 1
LAN controller	Realtek RTL8201CL
Networking features	Fast Ethernet
BIOS type	-

Weight and Dimensions

Depth	170 mm
Width	235 mm
