TA770 A2+ SE

SPEC

Front Audio Connector x1 Supports front panel audio function

CD-in Connector x1 Supports CD audio-in function

S/PDIF out connector x1 Supports digital audio out function

CPU Fan header x1 CPU Fan power supply (with Smart Fan function)

System Fan header x2 System Fan Po wer supply

CMOS clear header x1 Restore CMOS data to factory default

USB connector x3 Each connector supports 2 front panel USB ports

Serial port Connector x1 Connects to RS-232 Port

Power Connector (24pin) x1 Connects to Power supply

Power Connector (4pin) x2 Connects to Power supply

Back Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

LAN port x1

USB Port x6

Audio Jack x3

Connects to PS/2 Keyboard

Connects to PS/2 Mouse

Connect to RJ-45 ethernet cable

Connect to USB devices

Provide Audio-In/Out and microphone connection

Board Size 220 mm (W) x 307 mm (L) ATX

OS Support

Windows XP / VISTA

Biostar Reserves the right to add or remove support

for any OS With or without notice.

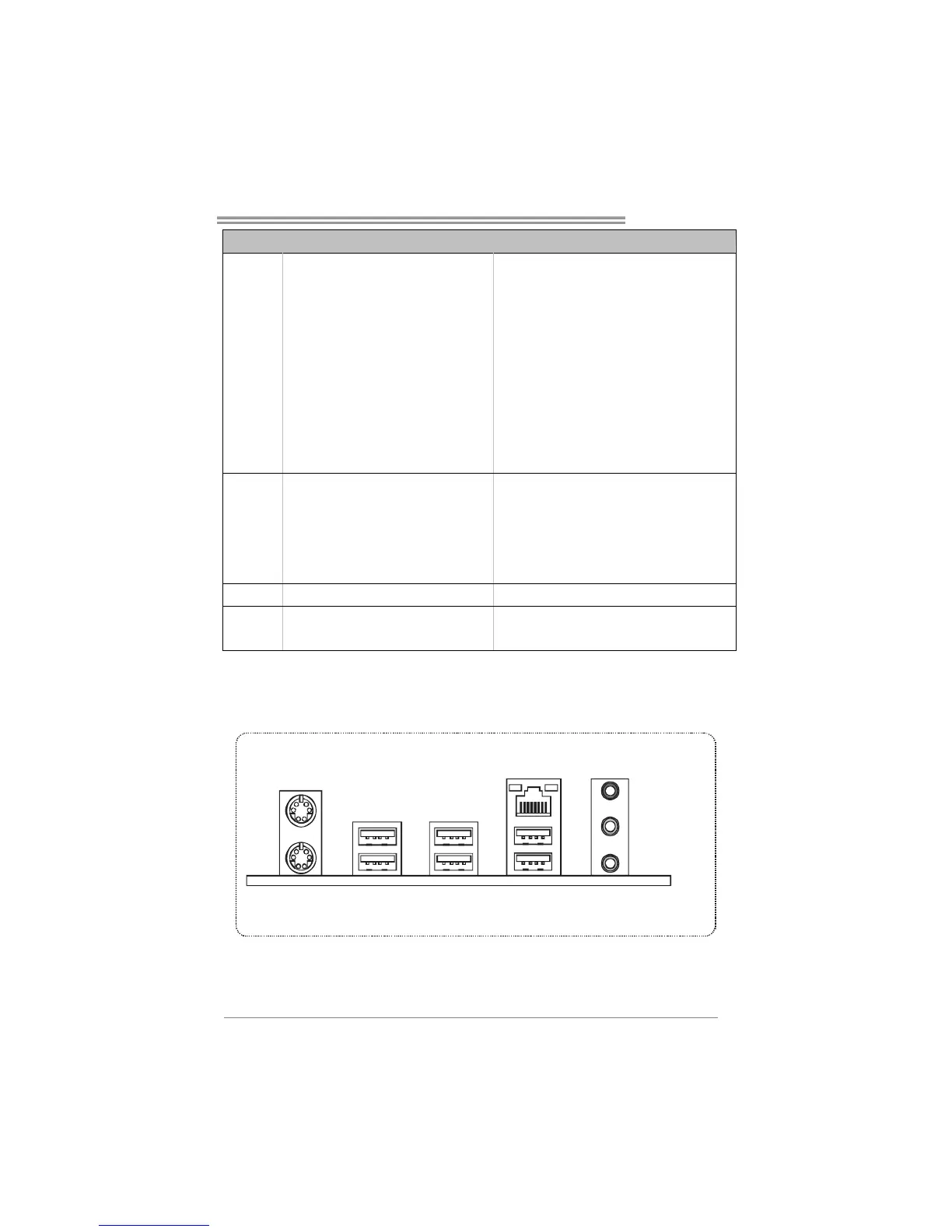

1.4 REAR PANEL CONNECTORS

PS/2

Mouse

PS/2

Keyboard

USBX2

LAN

Line In/

Surround

Line Out

Mic I n 1/

Bass/ Center
