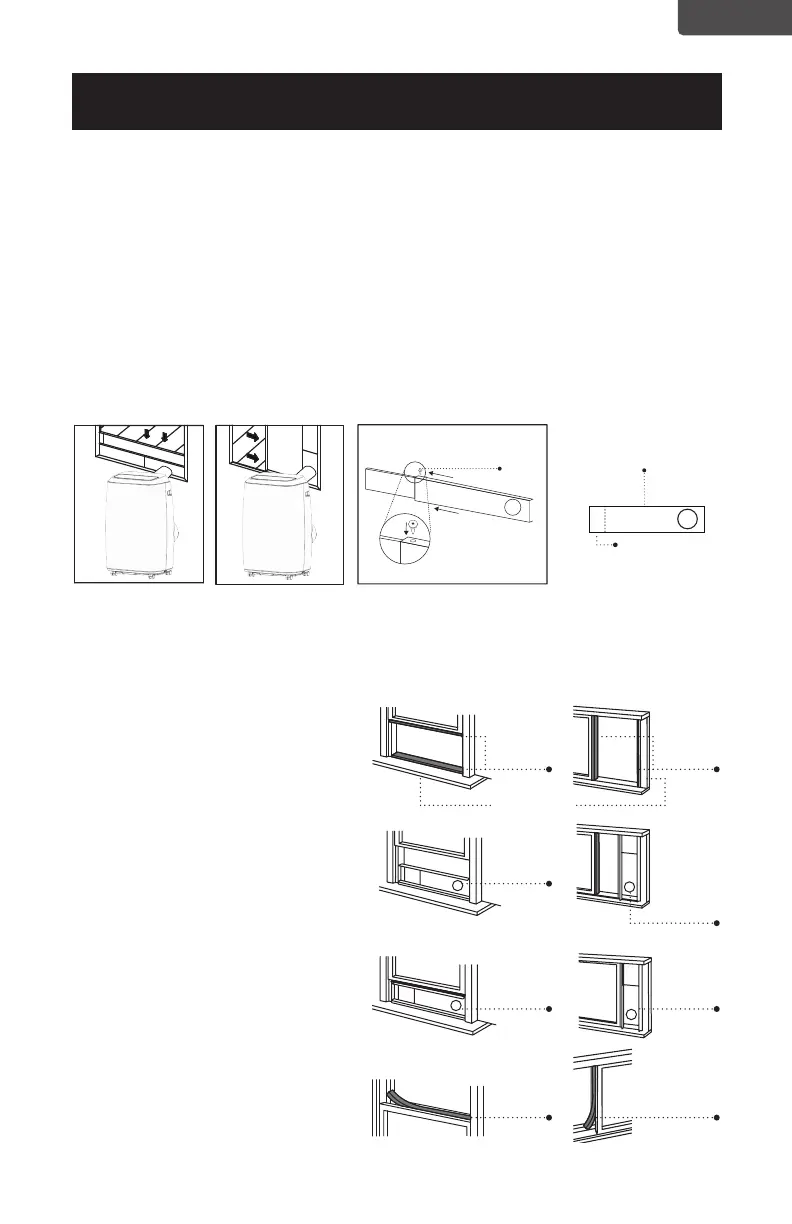

WINDOW SLIDER KIT INSTALLATION
Your window slider kit has been designed to t most standard “Vertical” and
“Horizontal” window applications; however, it may be necessary for you to
improvise/modify some aspect of the installation procedures for certain types of
window. Minimum and maximum window openings:
MAXIMUM : 47.2” (120 cm) MINIMUM : 27.5” (70 cm)
NOTE: · Adjust the length of the window slider kit according to the window width or height,
and secure it with the provided locking screws.
NOTE: · If the window opening is less than 27.5” the minimum length of the window slider kit,
cut the one with a hole in it short to t for the window opening. Never cut out the
hole in window slider kit.
DOUBLE-HUNG SASH/SLIDING CASEMENT
WINDOW INSTALLATION
1. Cut the foam seal (adhesive type) to the proper length and attach it to the
window sash.
2. Attach the window slider kit to the
window sash. Adjust the length of
the window slider kit according to
the width of window. Shorten the
adjustable window kit if the width
of window is less than 27.5”.
3. Cut the foam seal (adhesive type)
to the proper length and attach it
on the top of the window.
4. Close the window securely
against the window slider kit.
5. Secure the window slider kit
to the window sash.
6. Cut the foam seal to an
appropriate length and seal the
open gap between the top window
frame and outer window frame.
Horizontal Window
Vertical Window
Window Slider Kit
SET UP & USE
Foam
Seal
Foam
Seal
Foam
Seal
Window
Slider Kit
Window
Slider Kit
27.5”– 47.2”
Foam
Seal
Window
Slider Kit
Window
Slider Kit
27.5”– 47.2”
Window Sash
Locking
screw
Cut on opposite
side of hole.
Window slider kit can be secured
by inserting the locking screw
