BLUM 563H5330B User Manual

TANDEM plus BLUMOTION
Subject to technical modifications without notice. © 2015 Blum Inc.
Dimensions in millimeters (inch equivalents as noted)
3

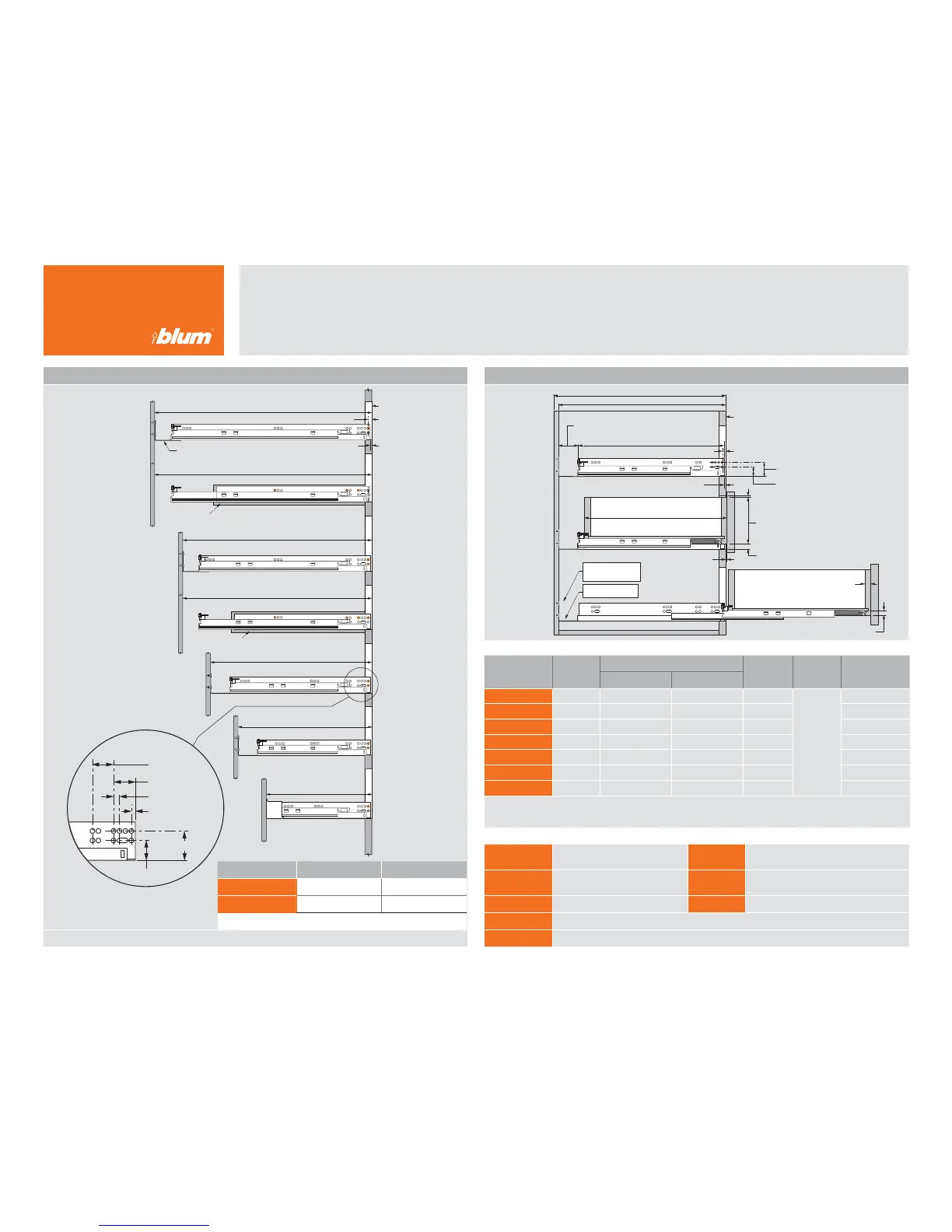

Runner mounting specifications
Side view
NOTE:
Orange dots indicate screw locations required to meet specified load capacities
Cabinet and drawer specifications
Side view
563H3050B
563.4570B
563H3810B
563H5330B
533 (21") drawer
mounting position 10 (13/32")
setback 3
(1/8")
rear bracket
blocking for frame applications
cabinet face
inside cabinet depth range
557 to 599 (21-15/16" to 23-19/32")
328 to 370
(12-29/32" to 14-9/16")
404 to 446
(15-29/32" to 17-9/16")
563H2290B10
*see below
563.5330B
533 (21") drawer
563H4570B
457 (18") drawer
480 to 522 (18-29/32" to 20-9/16")
blocking for frame applications
Detail of front holes
7 (9/32")
32 (1-1/4")
9 (11/32") typical
37 (1-15/32")
25 (31/32")
34 (1-11/32")
557 (21-15/16") minimum
305 (12")
cabinet
381 (15")
cabinet
457 (18")
cabinet
533 (21")
cabinet
533 (21")
cabinet
610 (24")
cabinet
610 (24")
cabinet
480 (18-29/32") minimum
457 (18") drawer
381 (15") drawer
305 (12") drawer
229 (9") drawer
TANDEM plus
BLUMOTION
Cabinet
depth
Inside cabinet depth
Drawer
length
Maximum
drawer
thickness
Runner
length
Maximum Minimum
563H5330B
610 (24") 599 (23-19/32") 557 (21-15/16") 533 (21")
16 (5/8")
548 (21-9/16")
563.5330B
610 (24") — 557 (21-15/16") 533 (21") 548 (21-9/16")
563H4570B
533 (21") 522 (20-9/16") 480 (18-29/32") 457 (18") 471 (18-17/32")
563.4570B
533 (21") — 480 (18-29/32") 457 (18") 471 (18-17/32")
563H3810B
457 (18") 446 (17-9/16") 404 (15-29/32") 381 (15") 395 (15-9/16")
563H3050B
381 (15") 370 (14-9/16") 328 (12-29/32") 305 (12") 319 (12-9/16")
563H2290B10
305 (12") 299 (11-25/32") 266 (10-15/32") 229 (9") 259 (10-3/16")
NOTE: For 563. series runners rear brackets and sockets cannot be used. Cabinet sides must
be blocked-out flush with the inside of the frame.
bottom clearance 14 (9/16")
minimum top clearance 6 (1/4")
setback 3 (1/8")
bracket range
6 to 48
(1/4" to 1-7/8")
front gap 1.5 (1/16")
25 (31/32")
37 (1-15/32")
Target Drawer
Length
drawer thickness
bottom recess 13 (1/2")
maximum drawer height =
opening minus
20 (25/32")
rear mount bracket
295.3750.01
mounting screws
606N or 606P
(#6 x 5/8" wood screw)
mounting position 10 (13/32")
cabinet depth
cabinet face
inside cabinet depth
runner length
drawer length
Face frame application
*Bracket Maximum depth Minimum depth
295.3700.21
282 (11-3/32") 266 (10-15/32")
295.3700.22
299 (11-25/32") 283 (11-5/32")
NOTE: *These brackets are for 563H2290B10 only
T51.1901R
Locking device with side-to-side
adjustment (right)
295.3750.01
Rear mounting bracket, non-handed
T51.1901L
Locking device with side-to-side
adjustment (left)
295.3700.21
563H2290B10 rear bracket, non-handed
T51.1801R
Locking device (right)
295.3700.22
563H2290B10 rear bracket, non-handed
T51.1801L
Locking device (left)
606N or 606P
#6 Wood screw (for mounting runner to cabinet side, rear brackets and locking devices)
