Opening and closing
24

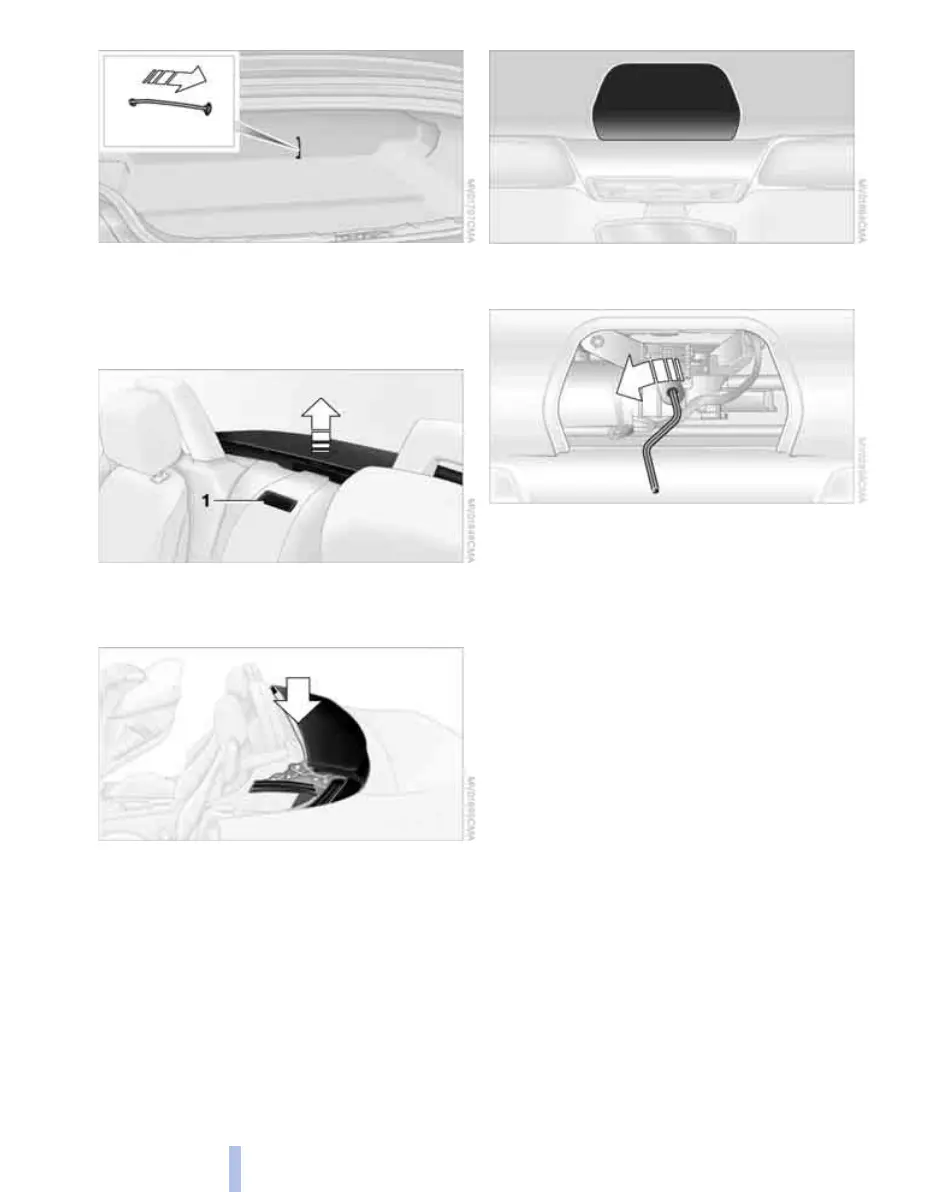

3. Pull on the cord in the luggage com-
partment panel
The storage compartment between the
backrests unlocks, refer also to
page 64
4. Press button 1
The convertible top is released and
moves up slightly
5. Grab the convertible top at its frame
and pull it up to the windshield frame
6. Pull out the cover panel that is in the
center of the front convertible top frame
7. Insert the Allen wrench into the hex slot.
The Allen wrench is located in the vehi-
cle tool pouch, refer to page 88
8. Pull the convertible top frame down as
far as possible
9. Continue turning the Allen wrench to
the left until the convertible top frame
has locked onto the windshield frame.
Wind deflector*
With the convertible top open, the wind
deflector keeps air movement in the pas-
senger compartment to a minimum, thus
providing you with a pleasant drive, even at
higher speeds.
