Replacement procedures
90

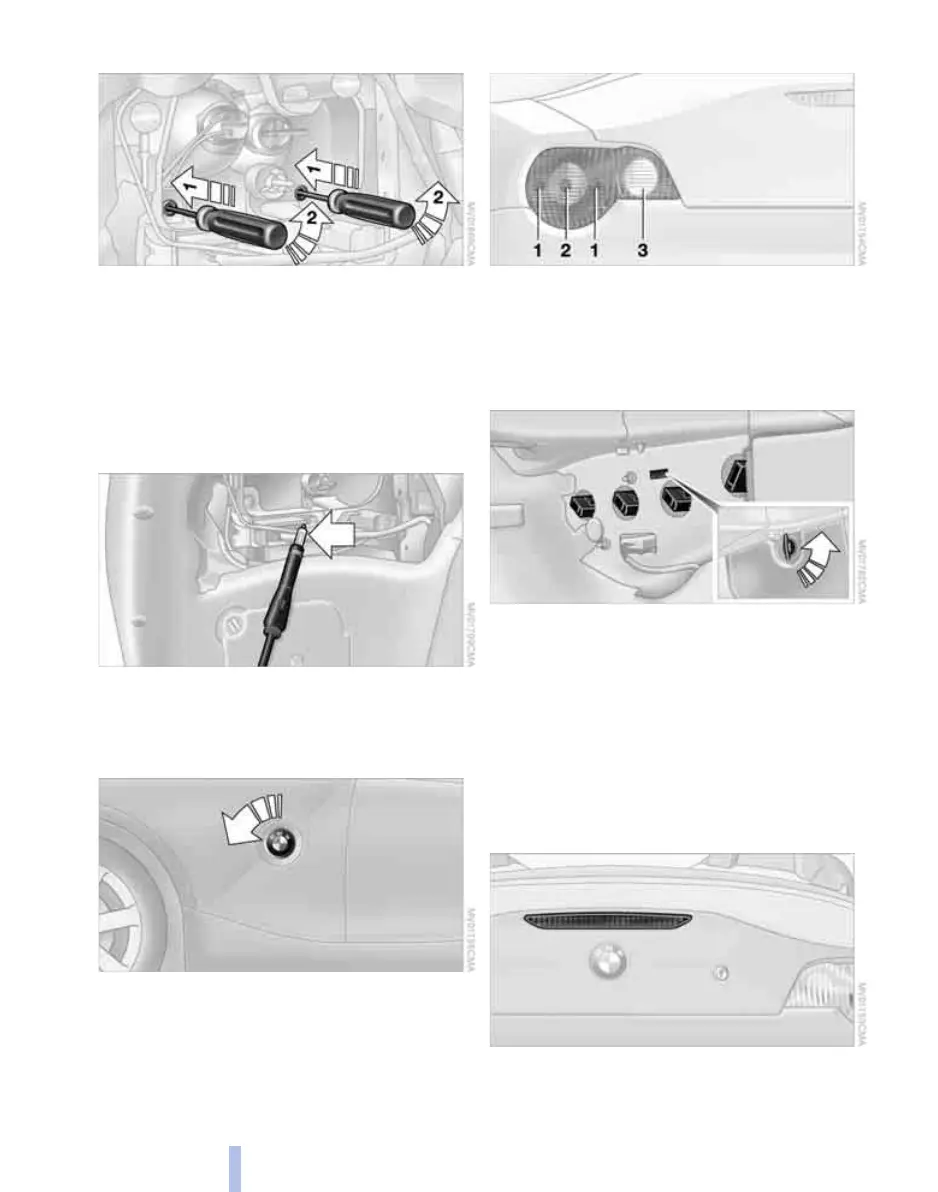

Front turn signal indicators
21 watt bulb
1. Insert a Phillips-head screwdriver from
the onboard toolkit into the appropriate
opening, arrows 1
2. Turn the screwdriver to the left,
arrows 2
3. Use the Phillips-head screwdriver to
pull out the entire bulb holder
4. Replace the bulb
5. Install in the reverse order.
Side turn signal indicators
5 watt bulb
1. Turn the lamp to the left and remove
2. Apply gentle pressure to the bulb while
turning it to the left to remove
3. Install in the reverse order.
Tail lamps
Tail lamps 1: 21/4 watt bulbs
Remaining bulbs: 21 watt
1 Tail lamp/brake lamp, red
2 Turn signal indicator, yellow
3 Backup lamp, white
On the right-hand side of the luggage com-
partment:
1. Remove the cover by turning the lock to
the right; refer to the detail in the illus-
tration
2. Applying light pressure, turn the bulb to
the left. Remove and exchange the bulb
3. Reinstall the cover.
Center high-mount brake lamp
The LED strip is in the luggage compart-
ment lid.
Online Version for Part No. 01 41 0 157 498 - © 10/03 BMW AG
