Electronic displays

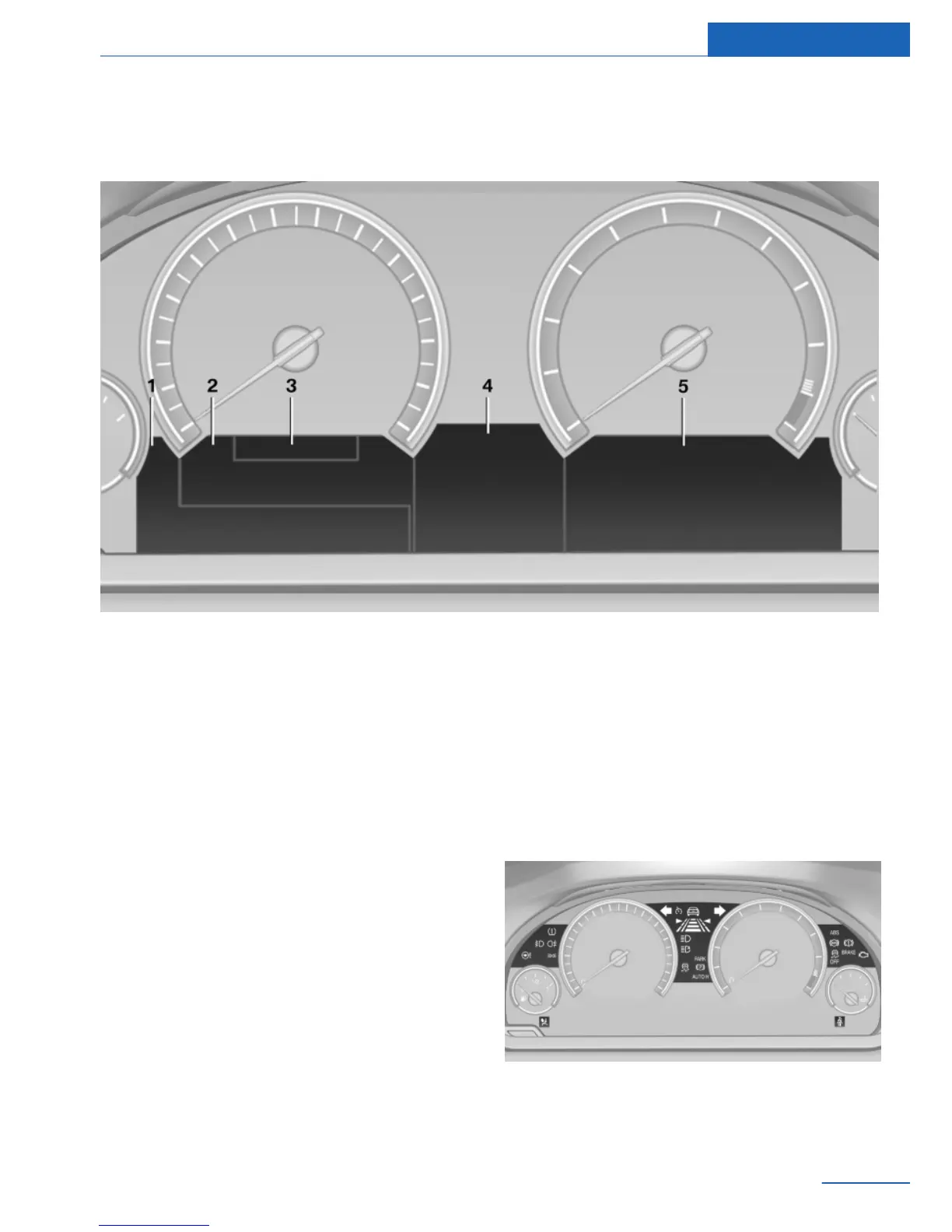

Overview, instrument cluster with enhanced features
1 Messages, e.g. Check Control 77
Time 80
Date 80
2 Range 80
3 Computer 84
4 Navigation display 166
Service requirements 82
Miles/trip miles 80
5 Selection list, such as for the radio 83
External temperature 80
Hybrid displays 81
Transmission display 75
Check Control
The concept
The Check Control system monitors functions
in the vehicle and notifies you of malfunctions in
the monitored systems.
A Check Control message is displayed as a
combination of indicator or warning lamps and
text messages in the instrument cluster and in
the Head-up Display.
In addition, an acoustic signal may be output and
a text message may appear on the Control Dis‐
play.
Indicator/warning lamps
The indicator and warning lamps can light up in
a variety of combinations and colors.
