Antennas for
Digital
R
eceivers
Note:
The terr
estrial In Band On Channel (IBOC) uses
the FM antennas for
digital r
eception.
Inde
x
Explanation
1
SD

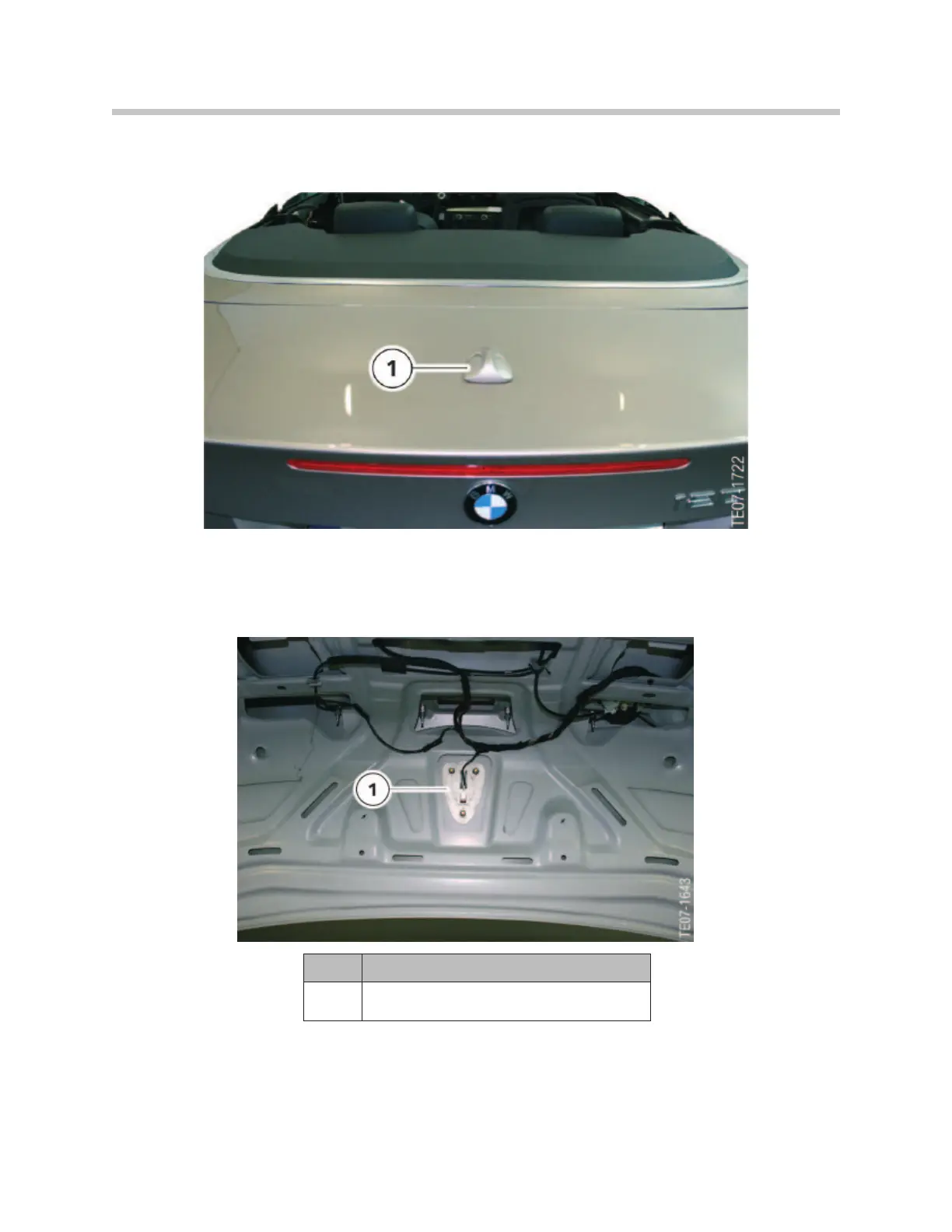

ARS antenna
Satellite Digital Audio R
adio Services (SDARS) ant
enna on trunk lid
(View from the rear
of
the vehicle)
View from under
trunk lid.
73
E88 Complete V
ehicle
100
102
Table of Contents
E82 Complete Vehicle
2
Table of Contents
2
Introduction
4
Exterior Dimensions
5
Interior Dimensions
6
Body
7
Aerodynamics
7
Passive Safety
8
Bodyshell Construction
10
Undercar View of Strut/Sill Concept
13
Layout of Components in Luggage Compartment
13
Seats
14
Bumpers
14
Door and Side Panels
14
Slide/Tilt Moonroof
14
Chassis Dynamics
15
Chassis Dynamic Driving Systems
15
Double Pivot Spring Strut Front Axle
15
Rear Axle "HA 5
17
Dynamic Driving Systems
20
New DSC Function
21
Bus System Overview
23
Interface Box (High)
24
Electrical System
24
Usb/Audio Interface
26
Special Features
28
Special Features of the 135I
28
E88 Complete Vehicle
29
Subject Page
30
Introduction
33
Body
35
Body Dimensions
35
Dimensional Variations between the E88 and E46/C
36
Dimensional Variations between the E88 and E93
36
Bodyshell
37
Exterior Sill/Rocker Structure
41
Partition Wall Module
42
Strut Brace Concept
43
Front Section Body Work
44
Doors and Side Panels
45
Interior Features
45
Shared Door Design for the E88/E82
45
Dashboard Module
46
Luggage Compartment
47
Volume/Loading
47
Convertible Top
48
Top Opening and Closing Procedure
50
Layout of the Hydraulic Control Unit
51
Top Storage Compartment Cover
52
Convertible Top
53
Position Sensors and Microswitches
53
System Components
53
Convertible Top Module (CVM)
60
Controls for Operation
61
Convertible Top Hydraulic Circuit Components
62
Electrical Hydraulic Control Unit
63
Windshield Cowl Locking System
65
Prerequisites for Opening and Closing the Top
69
System Functions
69
Comfort Operation
70
Top Opening Sequence
70
Check Control Messages
71
Diagnostic Notes
73
Service Information
73
Service Notes
73
Encoding/Programming Notes
74
Positions for the Convertible Top Diagnosis
74
Window Adjustments
74
Emergency Operation
81
Rollover Protection System
89
Bus System Overview
91
Vehicle Systems Network
91
Anti-Theft Alarm System
95
Central Locking System
95
General Vehicle Electrical System
95
Antenna Systems
99
Audio and Communication Systems
99
Usb/Audio Interface
99
AM/FM Antennas
100
Antennas for Digital Receivers
101
Antennas for Telephone and Telematics
102
Telematics Antenna
102
Bluetooth Antenna
103
GPS Antenna
103
SOS Antenna
103
E88 Antenna Circuit Diagram
104
Advanced Crash and Safety Management
107
Passive Safety Systems
107
E88 Passive Safety System Circuit Diagram
108
Front Seats Air Bags
110
Seat Position Sensors
110
Retraction Tensioner and Adaptive Belt-Load Limiter
112
Component Location
115
5
