Displays
Vehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.

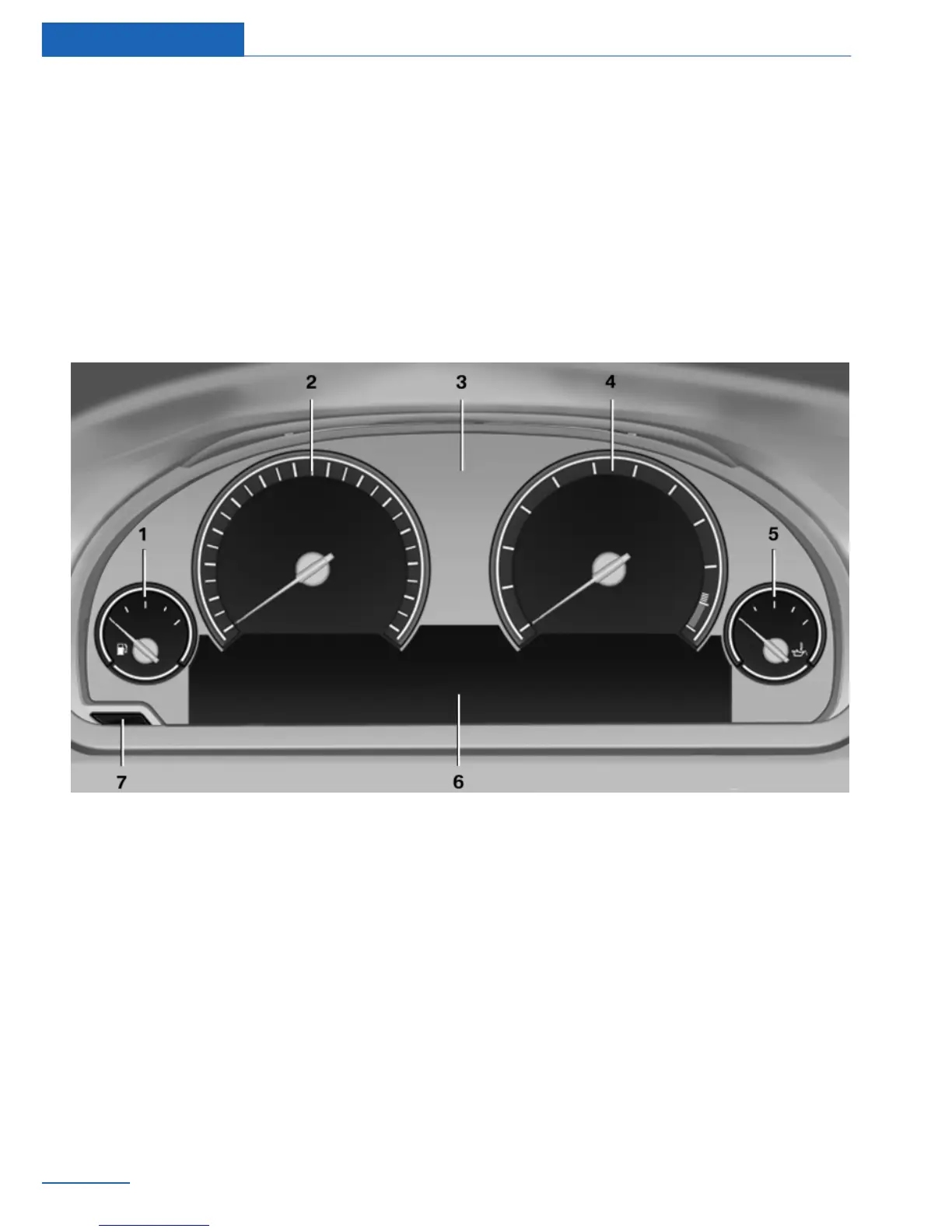

Instrument cluster
1 Fuel gauge 77
2 Speedometer
3 Indicator/warning lamps 74
4 Tachometer 77
5 Oil temperature 77
6 Electronic displays 71
7 Reset miles 77
Seite 70
Controls Displays
70
Online Edition for Part no. 01 40 2 902 827 - 07 12 490
