New Generation N62 Engine Chapter 3 P.44
Course Contents/Background Material
© BMW AG, Service Training
- Bi-VANOS (variable camshaft adjustment)
The N62 inlet and outlet camshafts are fitted with the new,
adjustable VANOS vane cells.
The camshaft adjustment rate is 60º crankshaft/300 ms.
The VANOS units are labelled In/Out.
The VANOS function is the same as that of the N42 engine.
VANOS units

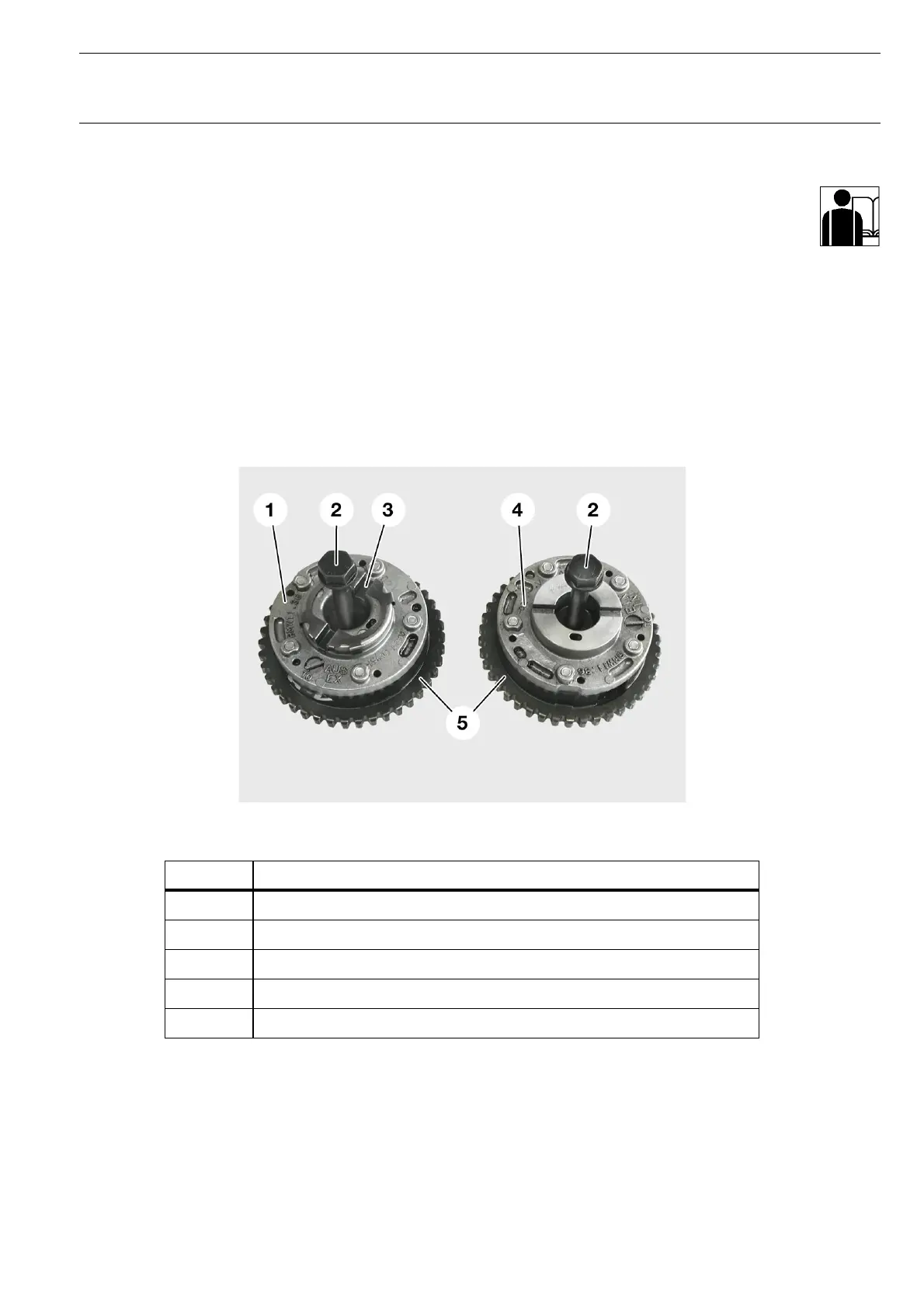

Fig. 33: VANOS units
Index Description
1 VANOS unit outlet side
2 VANOS threaded connection
3 Spring plate
4 VANOS unit inlet side
5 Toothed chain gear teeth
KT-7692
