N73B60 Engine - Diagnosis
Cylinder Heads
The two N73 cylinder heads are a new development from BMW and have been adapted to
the new direct injection system. The cylinder heads are equipped with Valvetronic valve
gear and Bi-VANOS. The inlet camshaft and the Valvetronic eccentric shaft are jointly guid-
ed by a bridge support.
The ports for the high pressure fuel injectors are located on the intake side. The engine is
equipped with a high pressure fuel pump for each cylinder head. Each cylinder head has
a bucket-tappet drive on the exhaust camshaft for the high pressure fuel pump.
The secondary air ducts for subsequent exhaust gas treatment are integrated in the cylin-
der heads. The cylinder heads are cooled by the “cross-flow” principle. The cylinder heads
are made from aluminum and are manufactured using gravity die-casting.
Cylinder Head Gaskets
The cylinder head gasket is a triple layer steel gasket with rubber coating. This gasket ver-
sion is already established in previous engines (N62).
The cylinder head bolts for the N73 engine are M10x160 necked-down “stretch” bolts.
NNoottee:: TThheessee bboollttss sshhoouulldd aallwwaayyss bbee rreeppllaacceedd wwhheenn rreeppaaiirrss aarree ppeerrffoorrmmeedd..

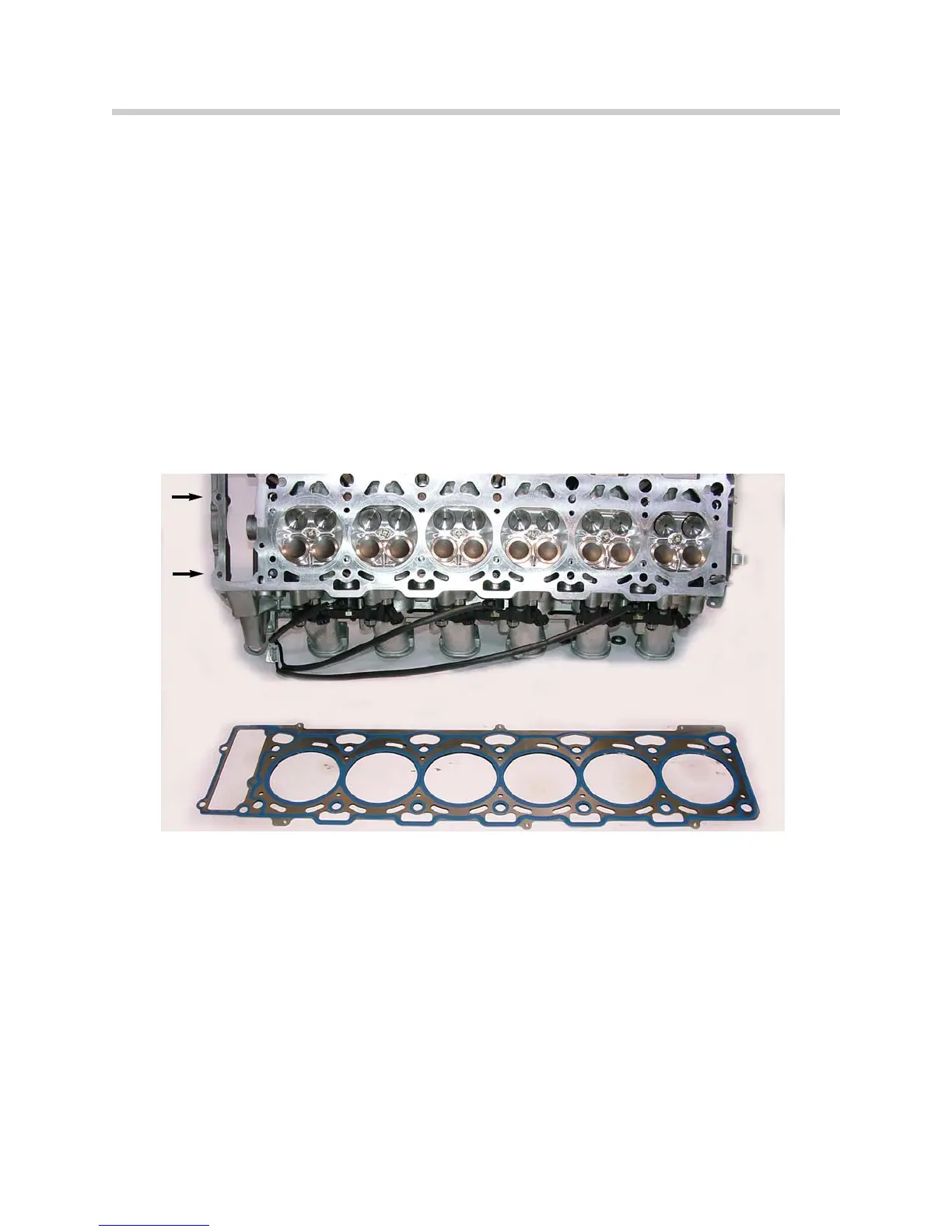

The lower part of the timing chain housing is bolted to the cylinder head using two M8x45
bolts (arrows above).
DCS00654
