Cargo loading
Stowing cargo
If you are transporting a load in your
BMW:
> Load heavy cargo as far forward as
possible – directly behind the back-
rests or the luggage compartment
partition – and as low as possible.
> Cover sharp edges and corners.
> Do not pile objects higher than the
top edge of the backrest.
460de160

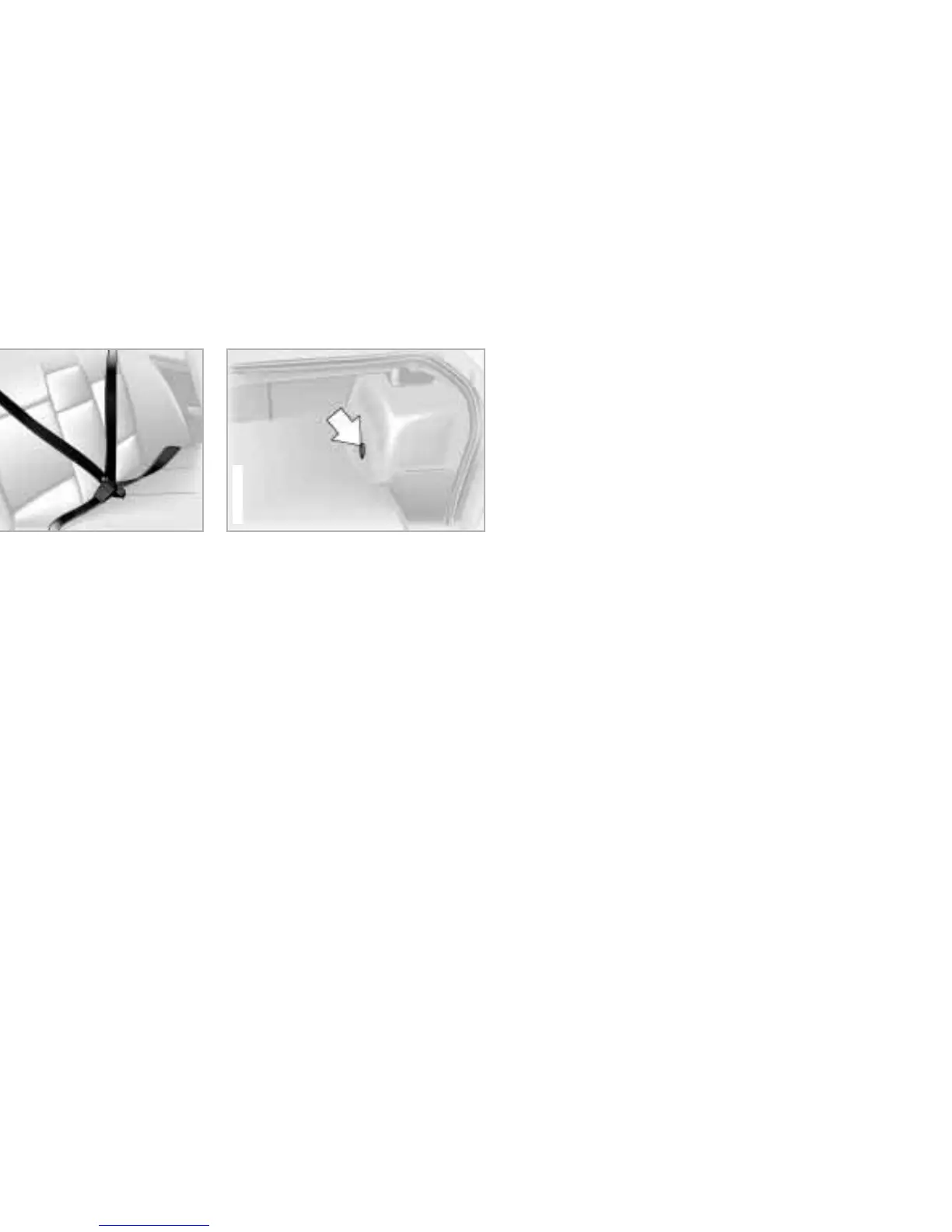

> If you are transporting very heavy
loads when the rear seat is not occu-
pied, secure the outer safety belts in
the opposite buckles (refer to the
illustration).
460de185
Securing the load
> For small, light items, use the rubber-
lined non-skid side of the floor mat or
secure with a luggage compartment
net
* or elastic straps (refer to
page 41).
> For large, heavy pieces, see your
BMW center for load-securing
devices
*. Lashing eyes (arrow) are
provided at the inner corners of the
luggage compartment for attaching
these load-securing devices.
> Comply with the information
enclosed with the load-securing
devices.
