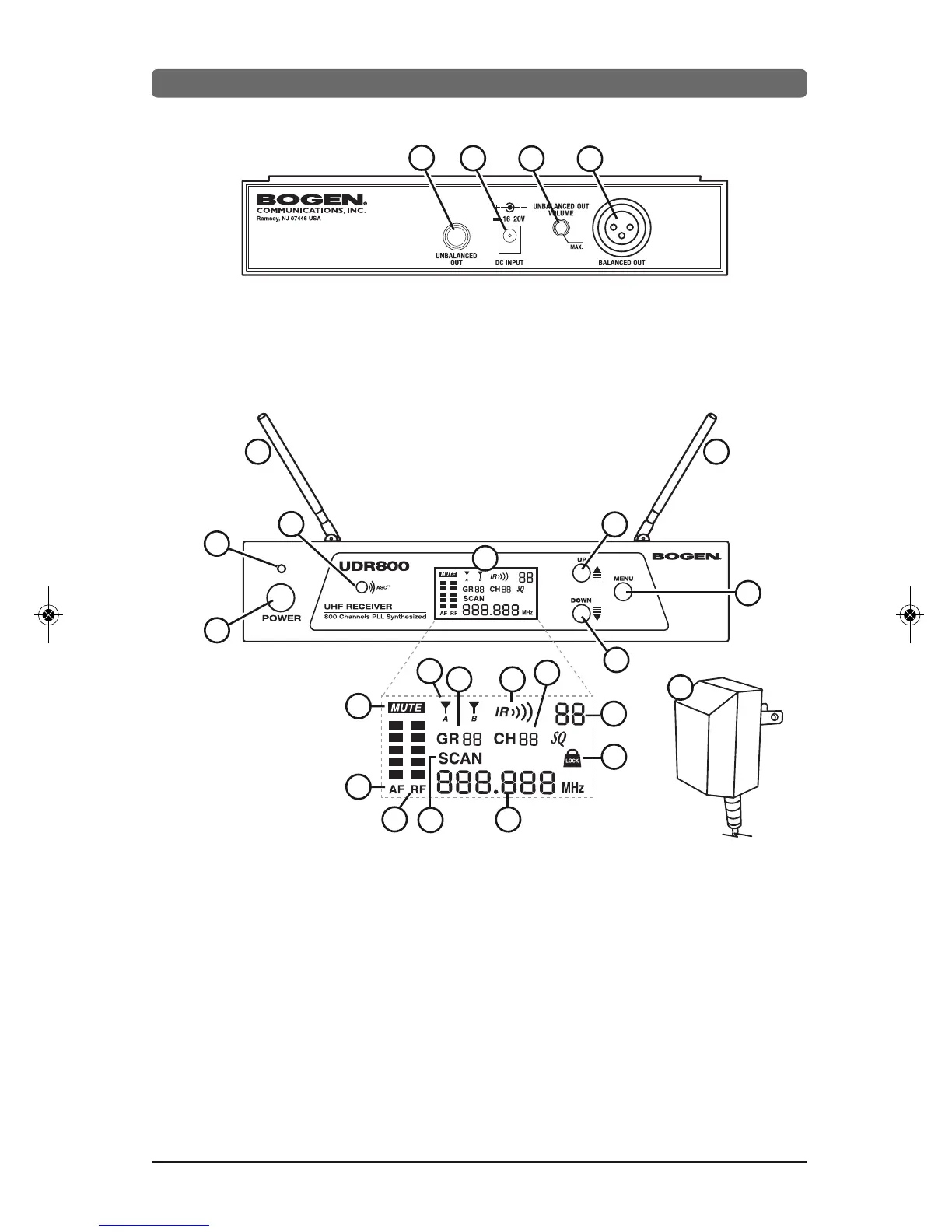

17. MUTE ICON
18. AF
INDICA
TOR
19. RF INDICA
TOR
20.
A
& B INDICA
TORS
21. GROUP NUMBER
22. IR INDICA
TOR
23. CHANNEL NUMBER
24. MUTE LEVEL
25. SCAN ICON
26. FREQUENCY
27. LOCK OUT ICON
28. DC POWER SUPPL
Y
ADAPTER
5. UNBALANCED LINE OUT
1/4” JACK
6. DC INPUT JACK
7. UNBALANCED OUT
VOLUME CONTROL
8. BALANCED MIC OUT
XLR JACK
9. POWER BUTTON
10. POWER LED INDICA
TOR
1
1. FOLDING ANTENNAS
12.
ASC/IR LED INDICA
TOR
13. UP BUTT
ON
14. MENU BUTTON
15. DOWN BUTTON
16. LCD DISPLA
Y
UDR800 RECEIVER
17
18
19
20
21
22
24
27
26
FRONT
VIEW
9
10
11
11
12
13
14
15
S
Q
REAR
VIEW
5
6
7
8
28
5
16
23
25
WirelessManualNEW11.10_Layout 1 11/18/11 2:01 PM Page 7
6
8
Table of Contents
Table of Contents
3
Introduction
3
Using this Manual
3
System Features
4
Udr800 Receiver
5
Audio Level and Peak Led Indicator
6
Connecting the Audio Output
6
Uht800 Handheld Microphone Transmitter
8
Microphone Use
10
Ubp800 Body-Pack Microphone Transmitter
10
Selecting Group/Channel, Ir Programming, Multichannel
12
Front Panel Lock-Out
14
Rf Interference & Finding Open Channels
14
Frequency Plan
15
Frequency Listings
15
Specifications
16
Limited Warranty
17
4
