Wide Selection of Advanced Plug-In Modules
Bogen's new advanced input modules provide a wide range of input types allowing for custom configuration of
inputs - in both type and number - for a particular application. Modules are fully-featured for their application, many
with Bass/Treble, Gain, Music Ducking, Mute Send and Mute Receive. Mix and match a variety of modules to meet
your specific installation needs. Each of Bogen's modules support different signal-source/processing requirements.
Included interface features are: balanced and unbalanced inputs; stereo or mono; telephone systems/PBXs; trans-
former-isolated; microphones; tone generator; and bridging.

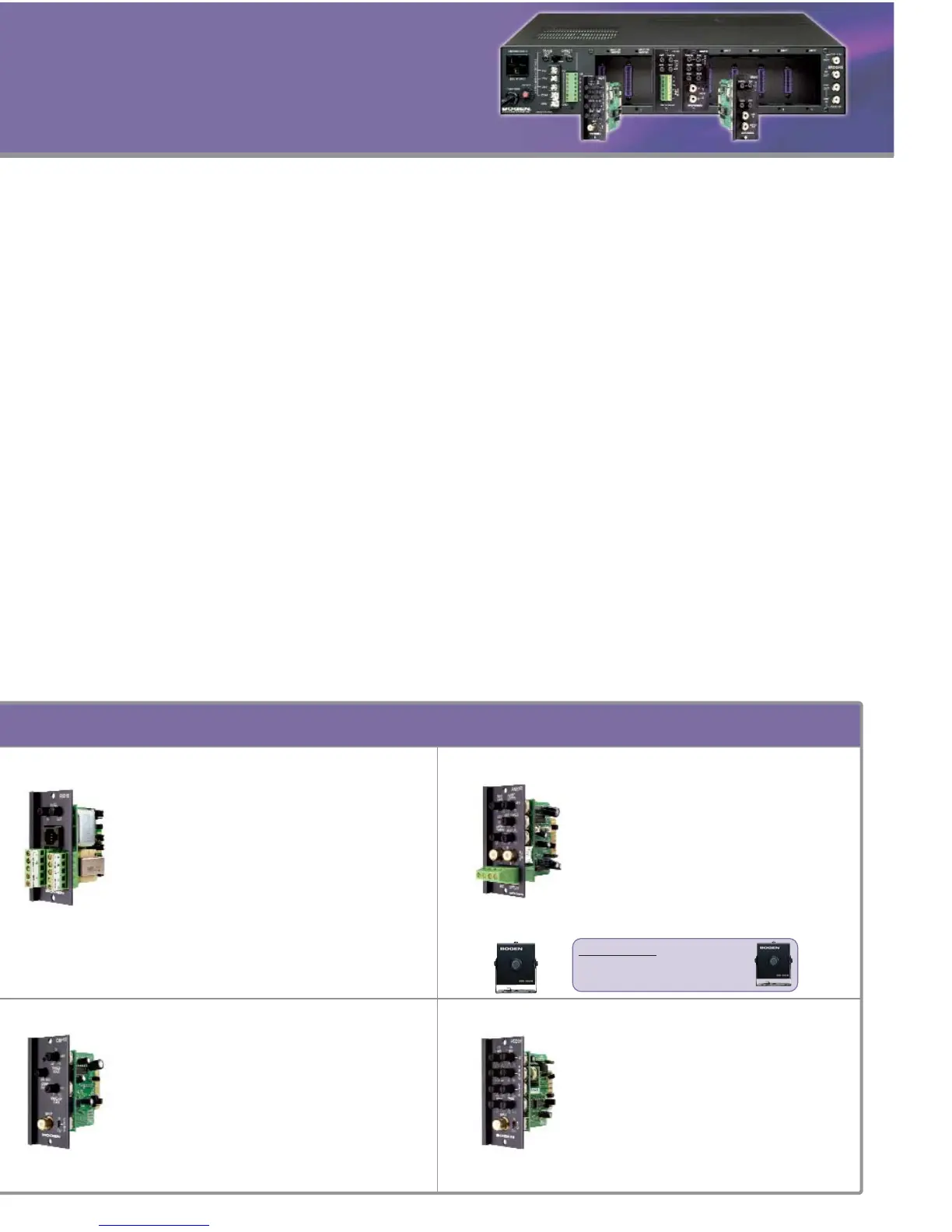

Signal-Processing Output Modules
Bogen's new output modules offer a cost effective and convenient way to add specific signal processing capability
into a system. These modules automatically insert themselves into the audio signal path and eliminate the need for
external wiring as well as accessory outboard equipment. The selection includes an ambient noise sensor, compres-
sor/limiter, and parametric equalizer.
Each Power Vector amplifier accepts up to two signal-processing output modules.
The amplifier automatically detects the presence of an installed signal-processing output module, and automatically
inserts it into the audio signal path of the amplifier. All connections are done internally, so there is no need for patch cords
to connect to the inserts. When two output modules are installed, the signal processing effects are cascaded. In addition,
each output module includes an unbalanced input that is controlled by the amplifier's input control so an input is not forfeit-
ed when an output module is used.
Output modules afford two other benefits:
(1) the effects insert jacks are still available for use by external processing equipment.
(2) the signal processing output modules act on the signal on the raw mix bus signal before any other user controls
(such as volume, bass, and treble) can affect it. This then ensures that signal level dependent processors, such as
the Compressor/Limiter and the Ambient Noise Sensor modules, perform as intended regardless of front panel
control changes (excluding input volume controls).
Modular
Flexibility
Signal-Processing Output Modules
Automatically insert themselves into the mix bus signal
path leading to the power amp stage when installed.
Accessories
ANS500M Sensor Microphone
(One included; additional available)
PARAMETRIC EQUALIZER - PEQ1R
• 2 full parametric bands
• Frequency control
• ‘Q’ bandwidth control
• Gain control
• Bass and Treble control
• Unbalanced input
• Bypass switch
• Mutable input (lowest priority only)
• Gradual fade back from mute
• RCA connector
COMPRESSOR LIMITER - CMP1R
• Compressor Ratio control
• Threshold control
• Make-up Gain control
• Bypass switch
• Unbalanced input
• Gradual fade back from mute
• Mutable input (lowest priority only)
• RCA connector
RELAY INPUT/OUTPUT - RIO1S
• Transformer-isolated, balanced line-level input
• 600-ohm or 10k jumper selectable input impedance
• 8-ohm, 750mW output
• Input and output level controls
• Relay responds to selectable priority level
• External control of priority muting
• N.O. or N.C. relay contacts
• Input can be muted from higher priority modules,
with signal fade back
• Output can gate with relay priority level
• Screw terminal strips
• RJ11 connection with line output and dedicated
N.O. relay contact
AMBIENT NOISE SENSOR - ANS1R
• Maximum Gain control
• Ramp Speed control
• Activity Threshold control
• Ambient MIC input threshold control
• Stereo AUX input (summed mono)
• AUX level input control
• Gradual fade back from mute
• Connect up to 4 sensor mics (1 included)
• Mutable input (lowest priority only)
• RCA connectors
ANS1R
with Sensor
Microphone
All Modules Sold Separately
Other Available Power Vector Products...
Wall-Mount Power Vector Amplifier
The Wall-Mount Power Vector Series combines up to 8 modular inputs and 2 signal-processing outputs
to meet various application requirements. The amplifier’s convenient and efficient wall-mount design
provides a protected and accessible audio system in a permanent and inconspicuous mounting.
Power Vector Modular Mixer
This 8-channel Power Vector mixer/pre-amplifier offers a wide variety of operational features
and functions for superior audio performance. Eight module bays accept plug-in modules,
allowing up to four levels of priority between modules. Security covers for both the front
and rear of the unit prevent tampering with settings. For large applications, several
Power Vector Mixers can be bridged together.
• Wide selection of plug-in modules
(see pages 3 & 4)
• 8 module bays
•
2 module bays capable of handling signal-
processing plug-in output modules
• 4 levels of priority between modules
(see pages 3 & 4)
• 8 inputs, with independent volume
controls for each
• LED signal/clip indicator for each channel
• Bass and treble controls
• 11-segment LED output level meter monitors
the output level of the mixer with Peak Hold
switch
• Balanced output signal level switch
(-50, -10, and +4 dBµ)
• Balanced transformer-isolated output
• Join multiple Power Vector mixers together
using bridging jack and mute terminals
• Motorized master volume control that can
be remotely operated (with RVCP Remote
Volume Control Panel, sold separately)
• Unbalanced signal output jack
• 125 Hz Low Cut feature switch
• Tone control bypass switch
• Module security cover prevents tampering
with module controls (8 included)
• Resettable circuit breaker
• Rack mountable (rack mounting kit RPK87,
sold separately)
• Security cover (PVSC) to protect front
controls with break-away access to installer
selected controls (sold separately)
• 100-, 150-, and 250-watt models; each with large
power reserve
• 8 module bays, accepts up to 2 signal-processing
output modules and up to a total of 8 input modules
• Wide selection of advanced input and signal-pro-
cessing output modules (see pages 3 & 4)
• Four priority levels between modules
• 4-ohm, 8-ohm, 25V, and 70V outputs
• Secure, permanent wall mounting (in-wall with
BBF or surface-mount with BBS)
• 11-segment LED output level meter registers Peak
or Average output
• Adjustable output level limiter with active indicator
• Front-mounted Tape Output provides unbalanced
line level output signal
• Independent volume controls for each input
• Motorized master volume control, w/optional
accessory RVCP for remote operation
• External mute control
• Bass and treble controls with center detent
and bypass switch
• 125 Hz Low Cut switch
• Thermal, short-circuit, and overload protection
• Thermally controlled 3-speed fan
• UL and CSA listed
• Components required for installation:
Door (WMAD) and Back Box (BBF or BBS),
both sold separately
• Modules required, but sold separately
Accessories
RVCP
Remote Volume
Control Panel
Accessories for Power Vector Mixer (VMIX)
RVCP
Remote Volume
Control Panel
Components
BBF
Flush-Mount
Back Box
BBS
Surface-Mount
Back Box
WMAD
Front Cover/
Door
NOTE:
These items are
required for installation:
BBF or BBS, and one
WMAD.
PVSC
Power Vector Security Cover
RPK87
Rack
Mounting Kit
PVMC
Module
Security Cover
WV100,
WV150,
WV250
VMIX
3
