-6-
NOTE: For tool specifications refer to the nameplate on your tool.
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING

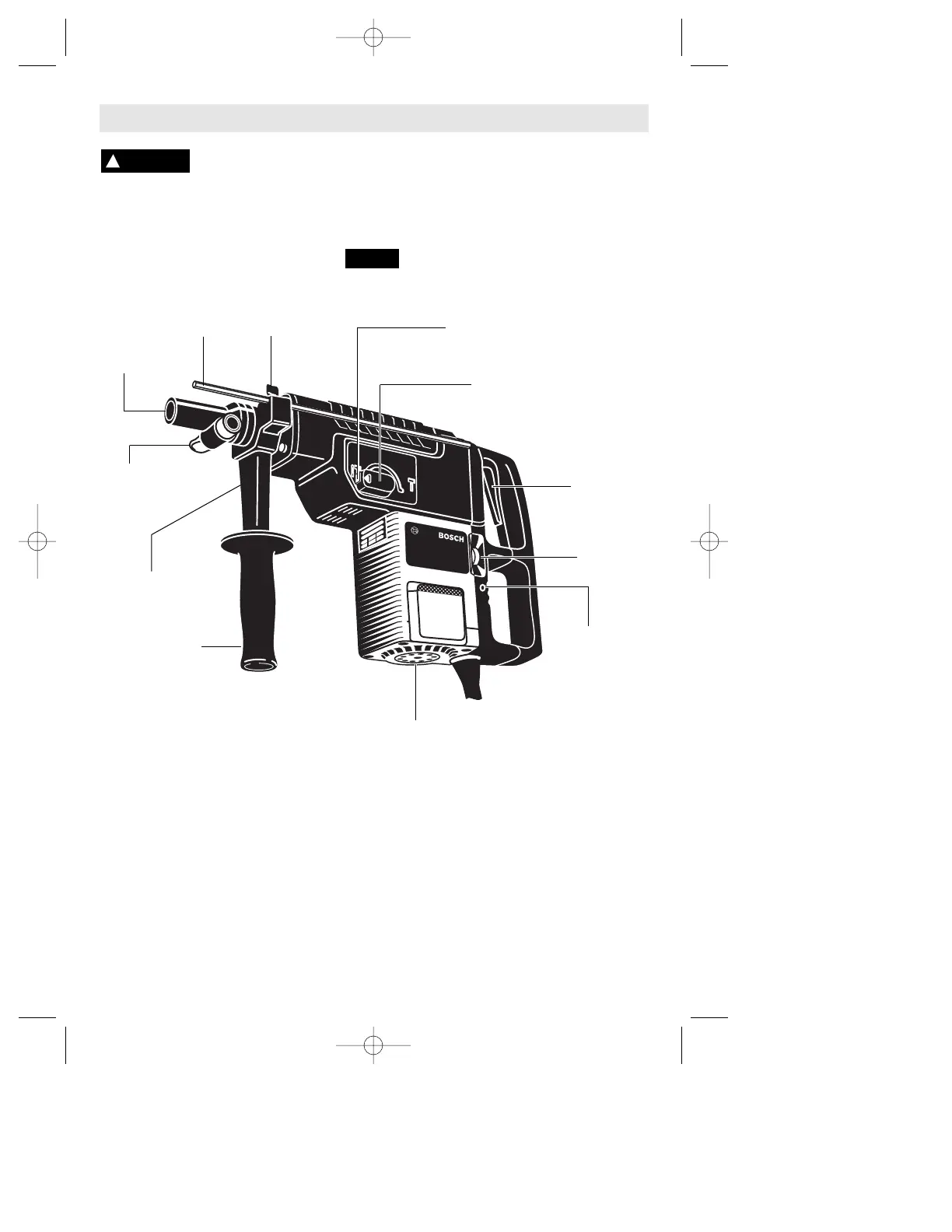

Rotary Hammer
FIG. 1
VARIABLE
SPEED DIAL
VENTILATION
OPENINGS
SERVICE
REMINDER
LIGHT
TRIGGER
SWITCH
DEPTH
GAUGE
HAND GRIP
AUXILIARY
HANDLE
WING
KNOB
RELEASE BUTTON
(Models 11219EVS & 11233EVS only)
TOOL
HOLDER
LOCK
BOLT
SELECTOR LEVER
(Models 11219EVS & 11233EVS only)
Model number 11219EVS 11233EVS 11220EVS 11232EVS
Max. Capacities:
Carbide tipped bits 1-1/2" (40mm) 1-1/2" (40mm) 1-1/2" (40mm) 1-1/2" (40mm)
Thru hole bits 2-1/2" (64mm) 2-1/2" (64mm) 2-1/2" (64mm) 2-1/2" (64mm)
Thick wall core bits 4" (100mm) 4" (100mm) 4" (100mm) 4" (100mm)
