-6-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories.
Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
Model number 11224VSR 11226VS 11228VSR
Shank style SDS SDS SDS
Maximum Capacities:
Carbide tipped bits 7/8" 7/8" 7/8"
Thin wall core bits 2-1/2" 2-1/2" 2-1/2"
Rotary Hammers

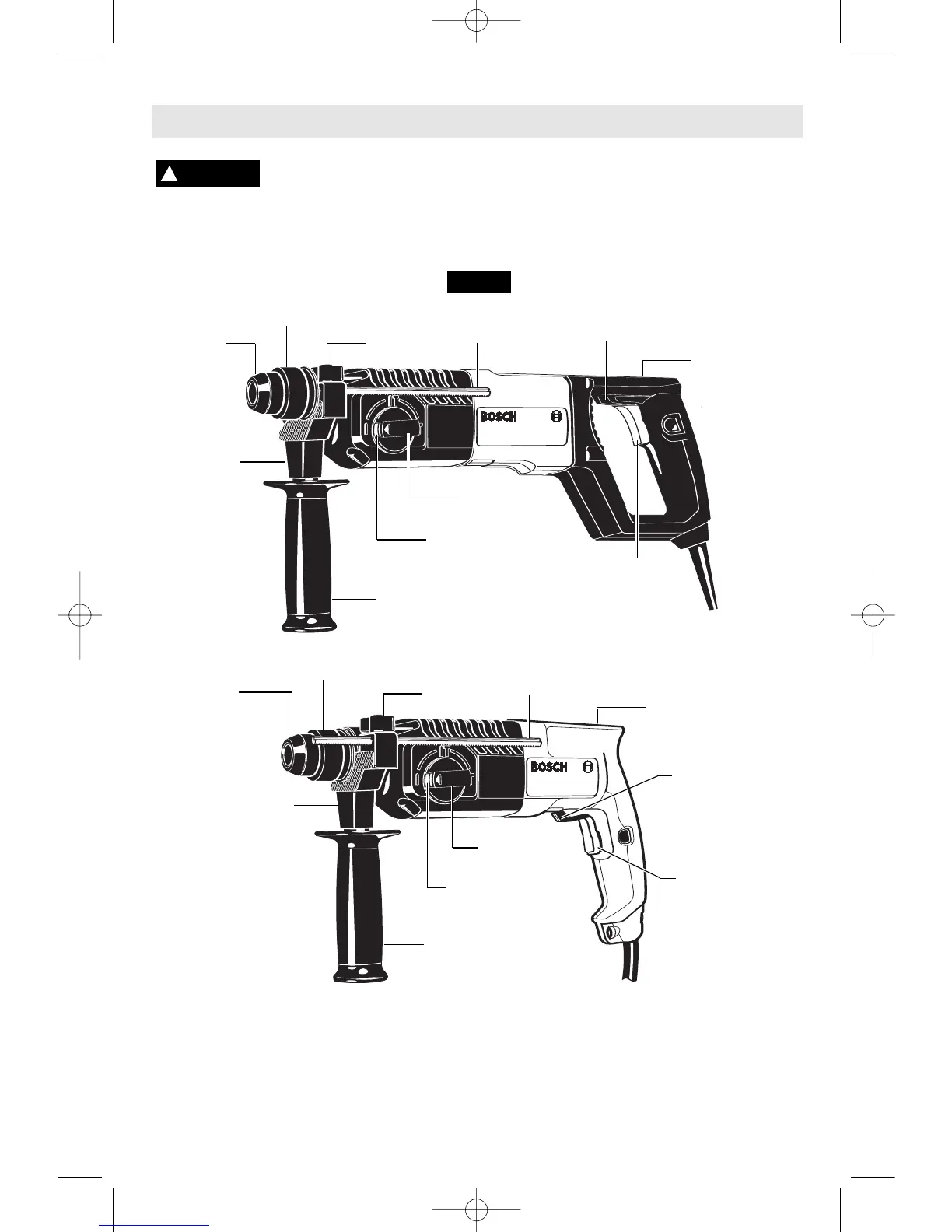

FIG. 1
TRIGGER
SWITCH
VENTILATION
OPENINGS
DUST
SHIELD
LOCKING SLEEVE
AUXILIARY
HANDLE
HAND GRIP
REVERSING SWITCH
LEVER
(Models 11224 &
11228 only)
DEPTH
GAUGE
RELEASE BUTTON
SELECTOR DIAL
SELECTOR
DIAL
WING
KNOB
DUST
SHIELD
AUXILIARY
HANDLE
HAND GRIP
VARIABLE
SPEED
SWITCH
SELECTOR
DIAL
RELEASE BUTTON
SELECTOR DIAL
LOCKING SLEEVE
WING
KNOB
DEPTH
GAUGE
REVERSING
SWITCH LEVER
(Models 11224 &
11228 only)
VENTILATION
OPENINGS
BM 2610993468 6-04 6/15/04 3:34 PM Page 6
