-18-
RA1171 DUST EXTRACTION HOOD FOR
OTHER BASES
Do not reach in area of the
bit while the router is ON
or plugged in. To avoid entangling hoses,
do not use this dust extraction hood at
the same time as any other dust
extraction hood.
The RA1171 dust extraction hood is
designed for use with Bosch routers bases
“S” (RA1160) and “D” (RA1162), when the
routing is done in the middle of the
workpiece, such as when creating slots or
routing out patterns for inlays.
To attach the hood to the router base, slide
the hood into the backside of the router
base with the hood’s rounded corners facing
up (Fig. 22 & 23). Securely tighten the two
knurled thumbscrews.
For maximum dust collection effectiveness,
make sure the router’s chip shield is in
place.
!
WARNING
DUST
EXTRACTION
HOOD
(Optional Accessory)
M5
SCREW
ROUTER
BASE

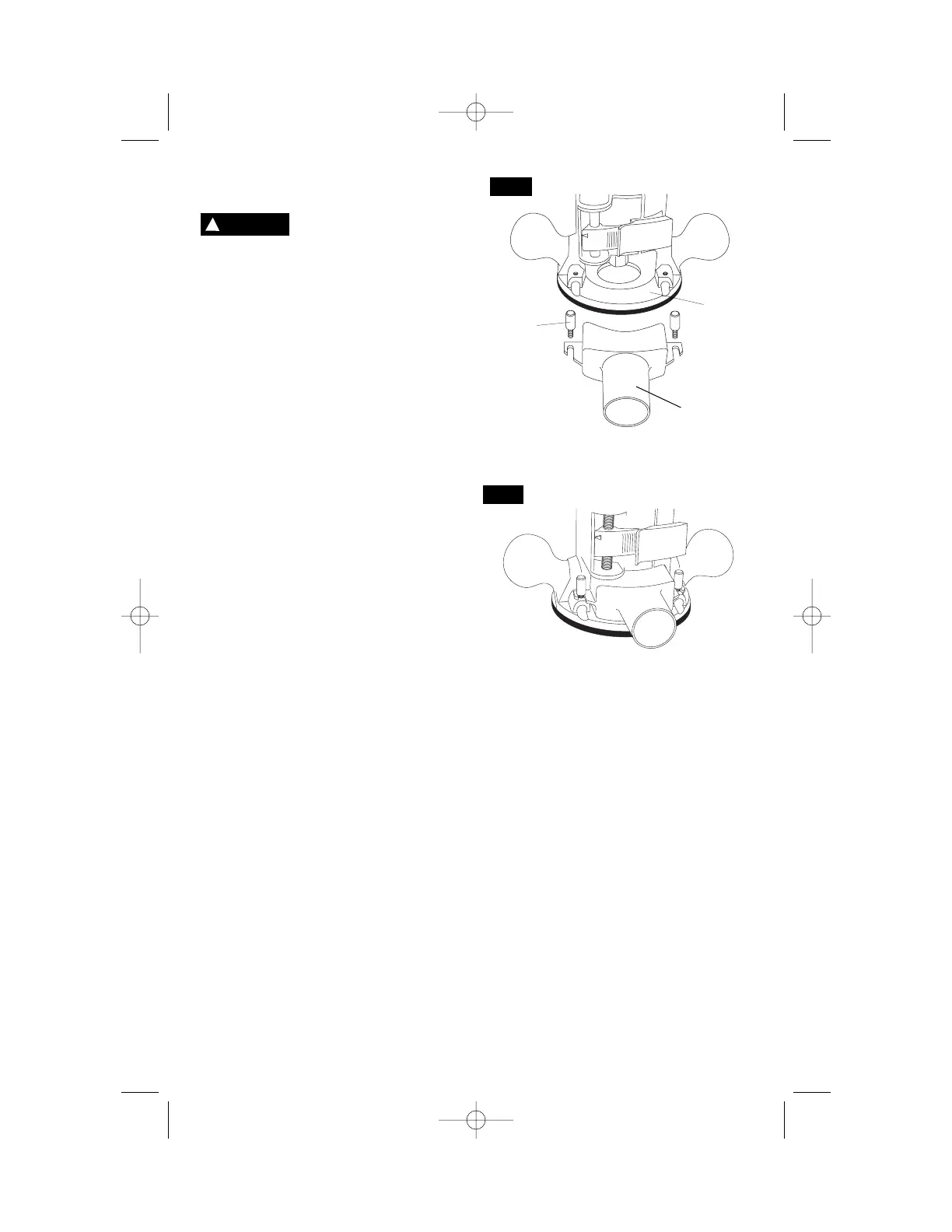

FIG. 22
FIG. 23
To Next Page
