Divar | Operation Manual | Viewing pictures EN | 9
Bosch Security Systems
English
Viewing pictures
The unit has two monitor outputs, A and B. The way in which these monitors
display pictures depends on how the system has been set up.
Monitor A
Monitor A is the main monitor. It shows full-screen, quad or multiscreen live or
playback camera pictures. Status messages, alarms, motion, and video loss
warnings are also displayed on this monitor. When the menu system is activated
it is displayed on this monitor.
Monitor B
Monitor B displays a single full-screen picture of a selected camera or a
sequence of full-screen pictures. When an alarm or motion input is detected, the
camera picture with the flashing Alarm/Motion indicator can be displayed on
monitor B. When multiple alarms or motion occur, camera pictures are
sequenced on monitor B.
Selecting a monitor to control
To control the display on monitor A:
1. Check that the light on the front panel is lit.
2. If is not lit, press the ALT key and then press the monitor A key .
To control the display on monitor B:
1. Check that the light on the front panel is lit.
2. If is not lit, press the ALT key and then press the monitor B key .
Viewing

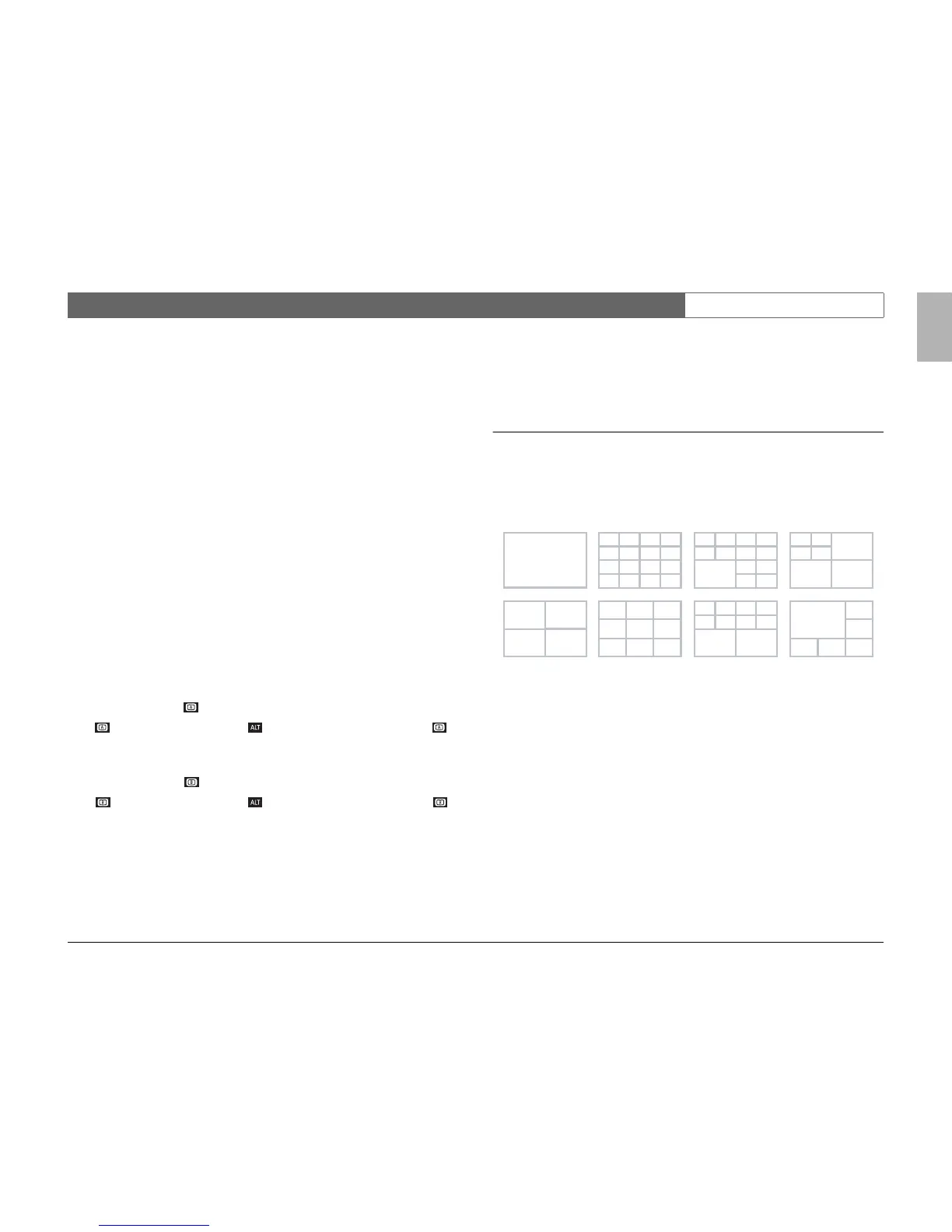

The drawing shows all possible views for monitor A. Some multiscreen views
may have been disabled during set-up. The number of connected cameras can
also influence the multiscreen views available.
The quad mode can have 4 different quad screens that can be shown in
sequence to display 16 camera pictures.
1 2 3 4
8765
9
13 14
10 11 12
1615
1
4
7
2 3
5 6
8 9
1 2 3 4
8765
10 11
1312
9
1 2 3 4
8765
9 10
1 2
54
6 7
3
5
6
4
4x4
3x3 8+2
12+1 4+3
5+1
1
3
1 2
4
1
2
3
Full-screen
Quad
