Functional Description and Specifications
Disconnect battery pack from tool before making any assembly,
adjustments or changing accessories. Such preventive safety measures
reduce the risk of starting the tool accidentally.
Cordless Impact Drivers GDR18V-1800C, GDX18V-1800C

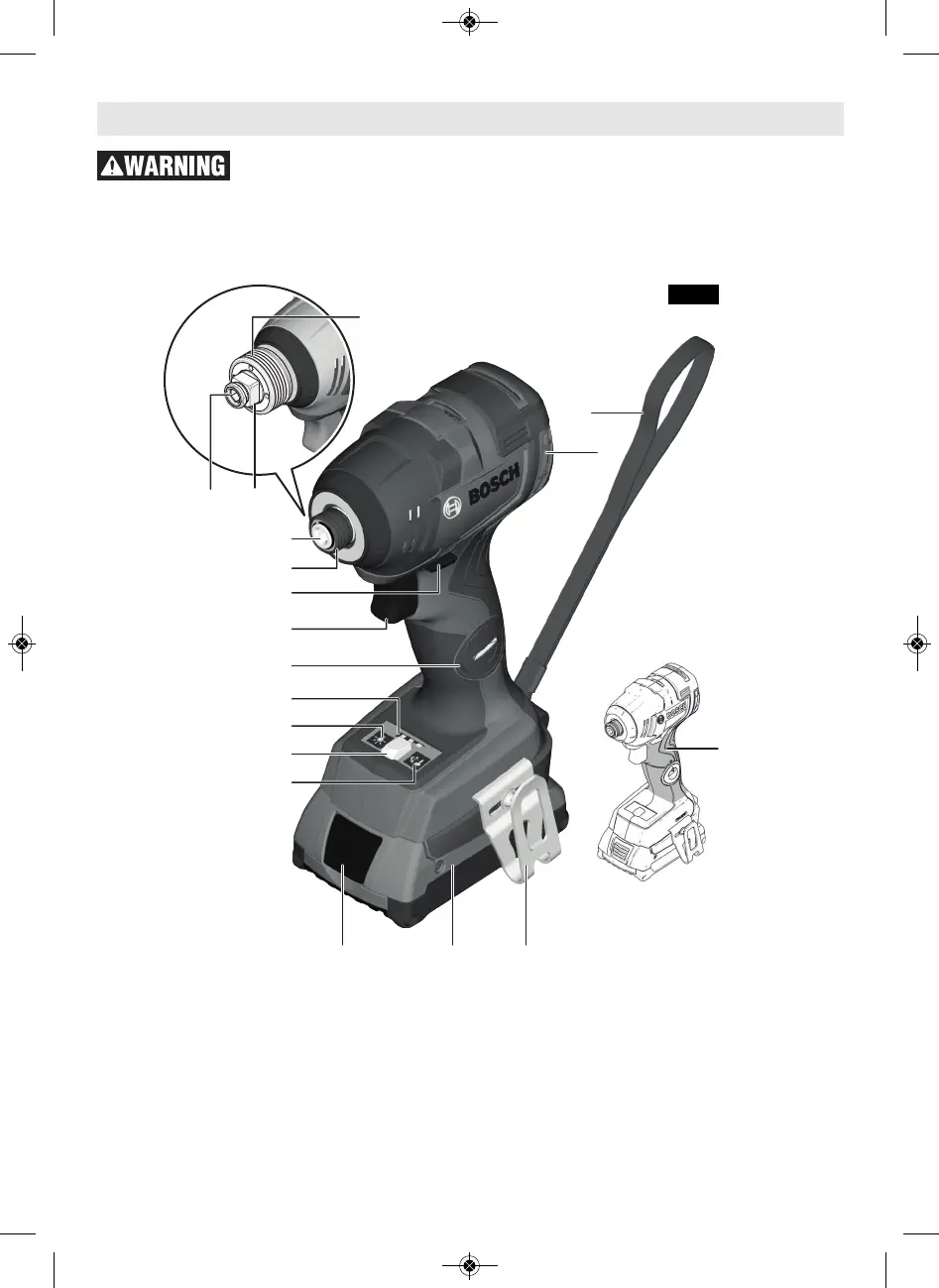

Fig. 1
1
2
3
4
5
6
7
8
9
10 11 12
13
14
15
16
1718
1 1/4” Hex bit holder
2 Locking Sleeve
3 Forward/reversing lever and trigger
lock
4 Variable speed trigger switch
5 Connectivity module compartment
6 Speed range indicator
7 Work light switch
8 LED Work light
9 Electronic speed selector
10 Battery pack release button
11 Battery pack
12 Belt clip (sold separately)
13 Handle (insulated gripping surface)
