-4-

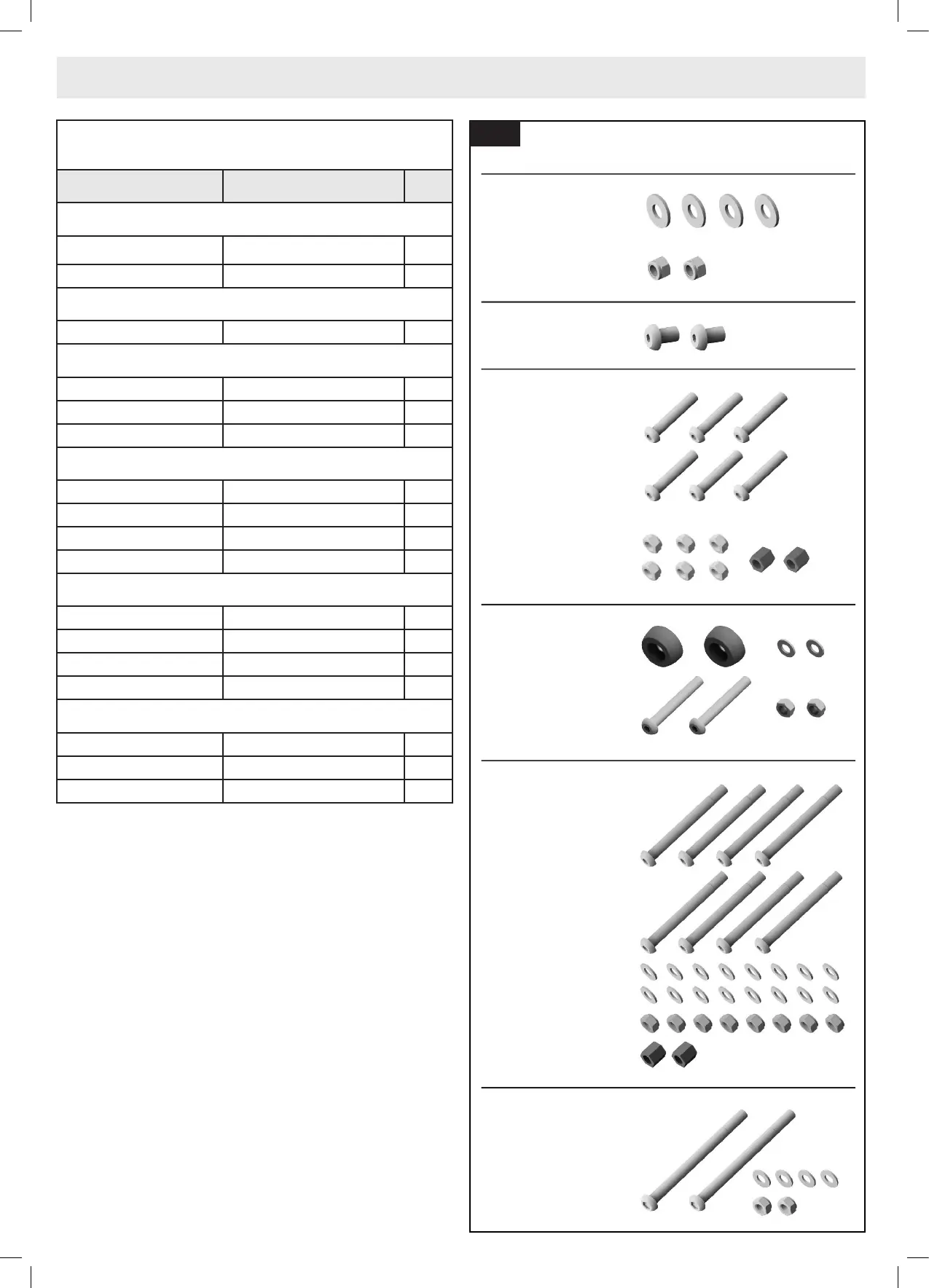

Pre-Assembly

Stand Assembly Hardware

(packaged in six bags connected together)

Part Description Specs. Qty.

Bag A

Flat Washer ⌀30 x ⌀13 x 3 mm 4

Lock Nut M12 2

Bag B

Hex Head Bolt M10 x 15 mm 2

Bag C

Hex Head Bolt M8 x 45 mm 6

Lock Nut M8 6

Rubber Thread Cap n/a 2

Bag D

Foot Pad n/a 2

Hex Head Bolt M8 x 60 mm 2

Flat Washer ⌀16 x ⌀18.2 x 1.5 mm 2

Lock Nut M8 2

Bag E

Hex Head Bolt M8 x 80 mm 8

Flat Washer ⌀16 x ⌀18.2 x 2.5 mm 16

Lock Nut M8 8

Rubber Thread Cap n/a 2

Bag F

Hex Head Bolt M8 x 110 mm 2

Flat Washer ⌀16 x ⌀18.2 x 2.5 mm 4

Lock Nut M8 2

Bag A

Bag B

Bag C

Bag D

Bag E

Bag F

Fig. 2
