Appliance details
5
2.4 Dimensions and installation clearances

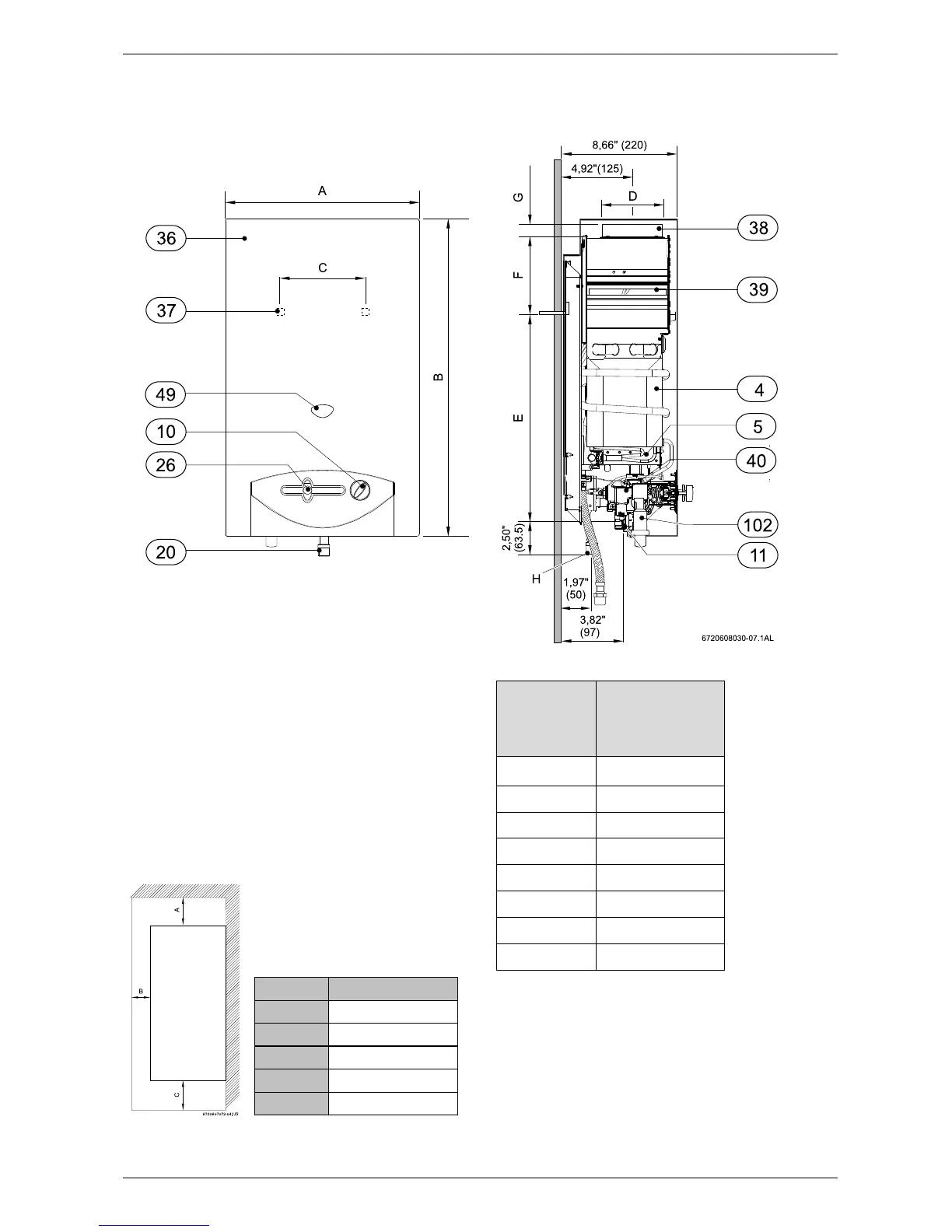

Fig. 3 Dimensions in Inches and (mm)
4 Heat exchanger
5 Burner
10 Temperature control
11 Water valve
20 Gas connection
26 Output control
36 Front cover
37 Hole for fixing to wall
38 Exhaust pipe to connector
39 Draft diverter with flue gas monitor
40 Gas valve
49 Observation window
102 Piezo
Fig. 4 Minimum clearances
Model GWH 1000
TOP (A)
12 inches (306 mm)
FRONT (B)
4 inches (100 mm)
BACK
0 inches
SIDES
4 inches (100 mm)
BOTTOM (C)
12 inches (306 mm)
Dimensions inches
(mm)
GWH 1000 P
A 12.20” (310)
B 22.83” (580)
C 9” (228)
D 4” (100)
E 20.71” (526)
F 2.36” (60)
G 1” (25)
H 1/2”
Table 1 Dimensions in inches (mm)

Bosch GWH 1600 P NG Specifications

General

Brand	Bosch
Model	GWH 1600 P NG
Category	Water Heater
Language	English
