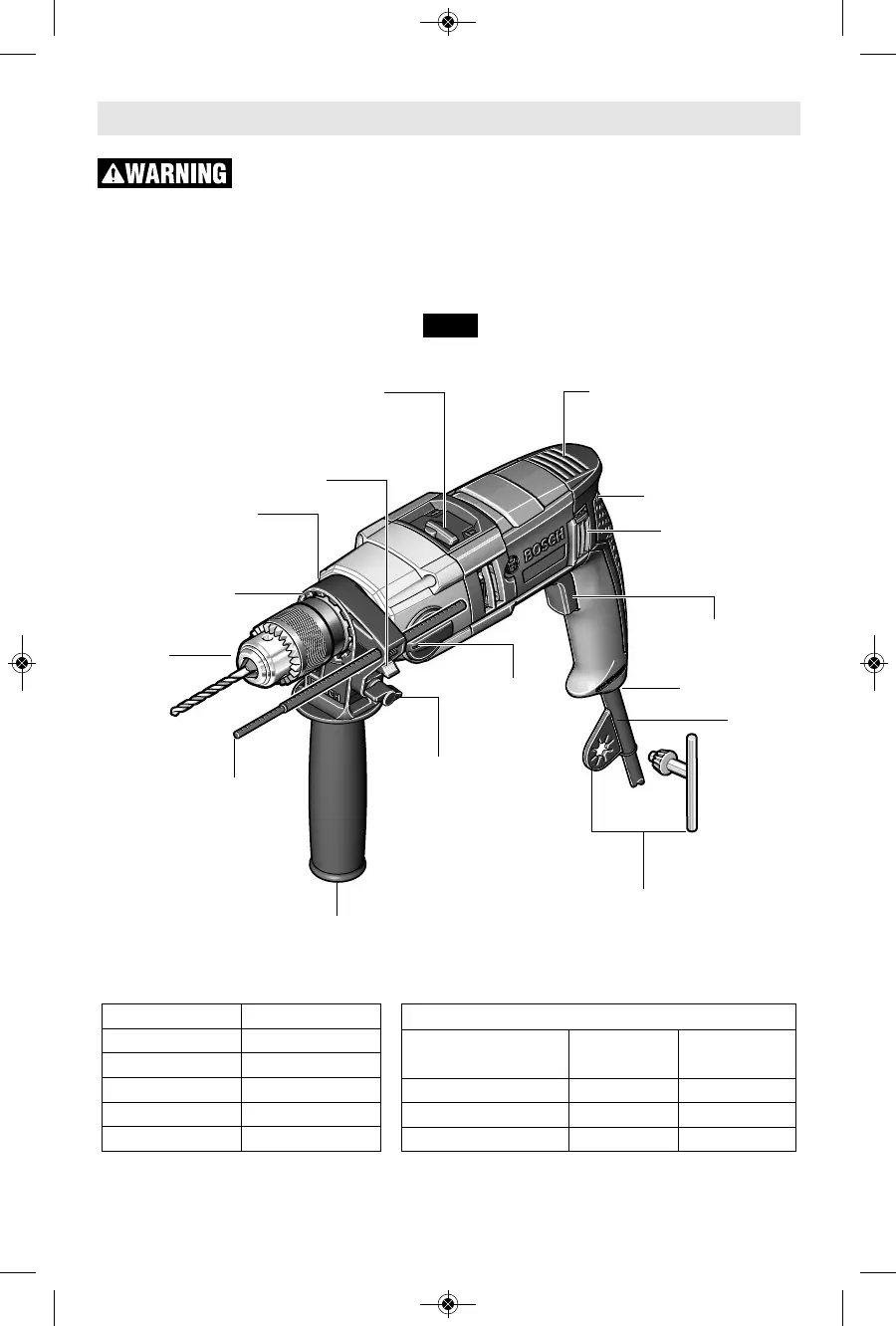

-7-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive
safety measures reduce the risk of starting the tool accidentally.
NOTE: For tool specifications refer to the nameplate on your tool.
REVERSING
SWITCH LEVER
VENTILATION
OPENINGS
GEAR
SELECTION
SWITCH
CHUCK
VARIABLE SPEED
CONTROLLED TRIGGER
SWITCH
AUXILIARY
HANDLE
FIG. 1
CHUCK KEY &
STORAGE AREA
DRILL/HAMMER DRILL
SELECTION SWITCH
Hammer Drill
DEPTH
GAUGE
RUBBERIZED GRIP
CORD
PROTECTOR
COLLAR MOUNT
LOCKING TEETH
SWIVEL CORD
WING KNOB
DEPTH GAUGE
RELEASE LEVER
Drilling capacities
Low Speed
(#1)
High Speed
(#2)
Concrete / Masonry 3/4" 5/8"
Steel 1/2" 1/4"
Wood 1-9/16" 1"
Model number HD18-2
No load speed 1 n
0
0-1,200/min
No load speed 2 n
0
0-3,200/min
Impact rate 1 0-19,200 BPM
Impact rate 2 0-51,200 BPM
Chuck capacity 1/2"
