Functional Description and Specifications
Disconnect battery pack from tool before making any assembly,
adjustments or changing accessories. Such preventive safety measures
reduce the risk of starting the tool accidentally.
Cordless Drill Drivers and
Cordless Hammer Drills
Battery Packs/Chargers
Please refer to the Charger Manual included with your tool.
NOTE: For tool specifications refer to the nameplate on your tool.
Model number DDS183 HDS183
Voltage rating 18 V 18 V
No load speed 1 n
0
0-600/min n
0
0-600/min
No load speed 2 n
0
0-1900/min n
0
0-1900/min
Impact rate NA 0-22000 BPM
Maximum Capacities
Chuck size 1/2" 1/2"
Driving screw sizes #16 x 3" #16 x 3"
Drilling mild metal 1/2" 1/2"
Drilling hard wood 1-1/2" 1-1/2"
Drilling soft wood 2" 2"
Drilling Masonry NA 1/2"

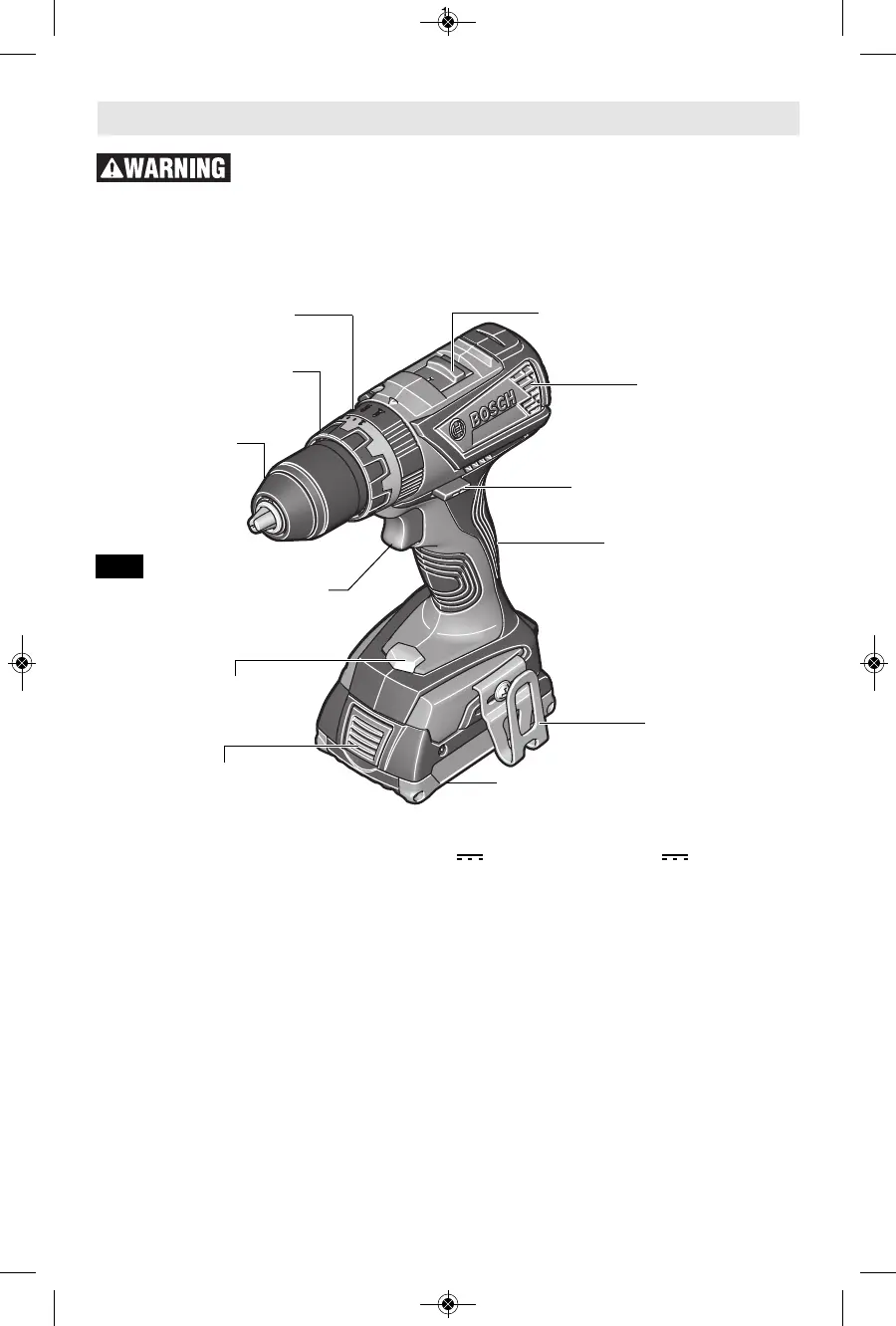

MODE SELECTOR RING
(Model HDS183 only)
ADJUSTABLE
CLUTCH
KEYLESS
CHUCK
VARIABLE SPEED
TRIGGER SWITCH
BUILT IN
WORK LIGHT
BATTERY PACK
RELEASE BUTTON
BATTERY PACK
VENTILATION
OPENINGS
FORWARD/REVERSING
LEVER & TRIGGER LOCK
RUBBERIZED
GRIP
GEAR SHIFTER /
SPEED RANGE SELECTOR
FIG. 1
BELT CLIP
