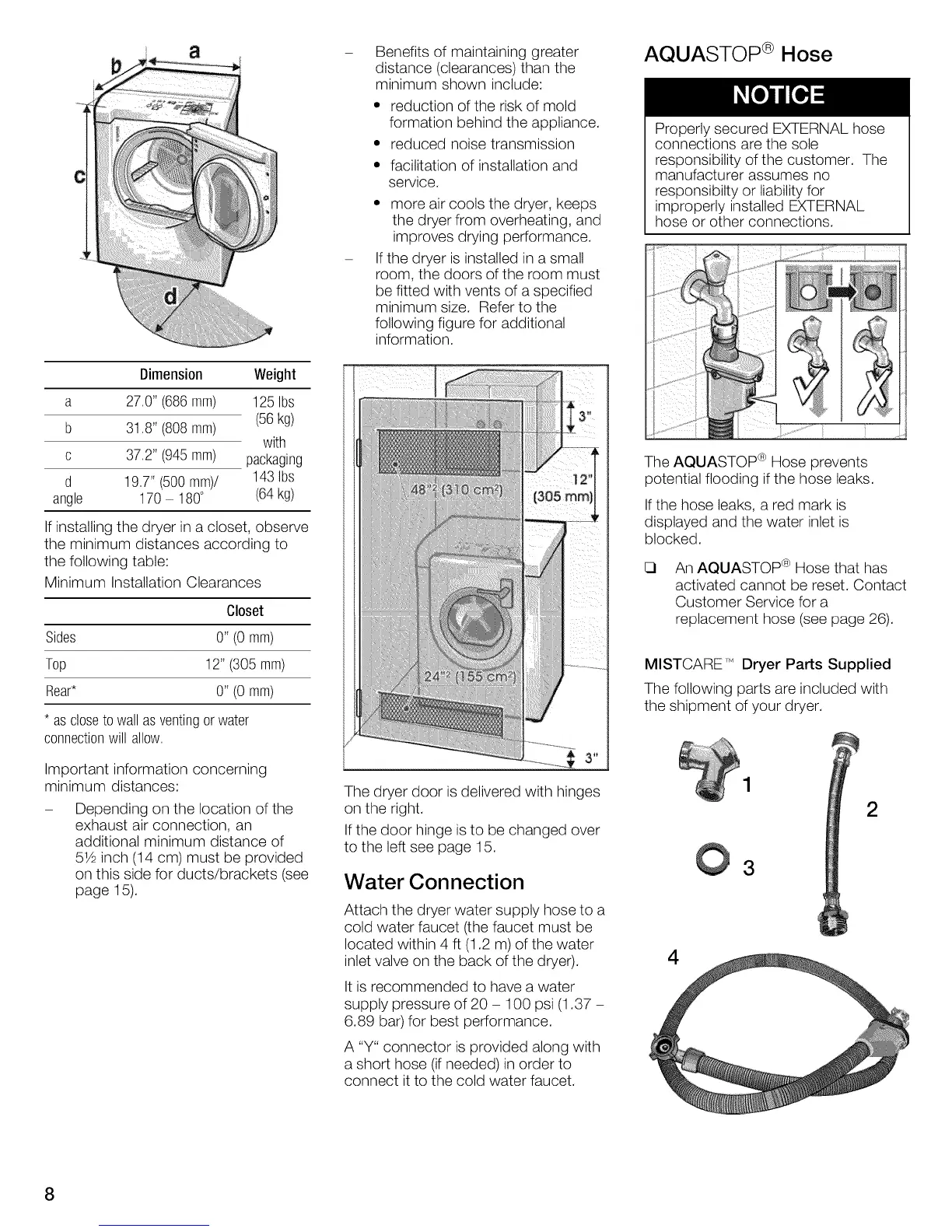

Dimension Weight
a 27.0" (686mm) 125 Ibs
b 31.8" (808mm) (56kg)
with
c 37.2" (945mm) packaging
d 19.7"(500 mm)/ 143 Ibs
angle 170 180° (64kg)
If installing the dryer in a closet, observe
the minimum distances according to
the following table:
Minimum Installation Clearances
Closet
Sides 0" (0 mm)
Top 12" (305 mm)
Rear* 0" (0 mm)
* ascloseto wallasventingor water
connectionwillallow.
Important information concerning
minimum distances:
- Depending on the location of the
exhaust air connection, an
additional minimum distance of
51/2inch (14 cm) must be provided
on this side for ducts/brackets (see
page 15).
Benefits of maintaining greater
distance (clearances) than the
minimum shown include:
• reduction of the risk of mold
formation behind the appliance.
• reduced noise transmission
• facilitation of installation and
service.
• more air cools the dryer, keeps
the dryer from overheating, and
improves drying performance.
If the dryer is installed in a small
room, the doors of the room must
be fitted with vents of a specified
minimum size. Refer to the
following figure for additional
information.
The dryer door is delivered with hinges
on the right.
If the door hinge isto be changed over
to the left see page 15.
Water Connection
Attach the dryer water supply hose to a
cold water faucet (the faucet must be
located within 4 ft (1.2 m) of the water
inlet valve on the back of the dryer).
It is recommended to have a water
supply pressure of 20 - 1O0 psi (1.37 -
6.89 bar) for best performance.
A "Y" connector is provided along with
a short hose (if needed) in order to
connect it to the cold water faucet.
AQUASTOP ® Hose
Properly secured EXTERNAL hose
connections are the sole
responsibility of the customer. The
manufacturer assumes no
responsibilty or liability for
improperly installed EXTERNAL
hose or other connections.
The AQUASTOP ® Hose prevents
potential flooding if the hose leaks.
If the hose leaks, a red mark is
displayed and the water inlet is
blocked.
[3 An AQUASTOP ® Hose that has
activated cannot be reset. Contact
Customer Service for a
replacement hose (see page 26).
MISTCARE TMDryer Parts Supplied
The following parts are included with
the shipment of your dryer.
4
3
2
