PLENA Mixer amplifier, 4-zone, 240W Installation | en 11
Bosch Security Systems B.V. Operation manual 2019-03 | V1.1 |
4 Installation
4.1 Unpack unit
1. Remove the unit from the box, and discard the packaging material according to local
regulations.
2. Use your fingernails to carefully peel off the protective plastic film from the label holders.
Do not use sharp or pointed objects.
4.2 Install unit in 19" rack (optional)
The PLENA Mixer amplifier is intended for tabletop use or installation in a 19"rack (see figure
4.1).
If you install the unit in a 19"rack:
– Ensure that it does not exceed the overheating temperature (+45°C ambient).
– Use the included Bosch 19” mounting brackets.
– Remove the 4 feet from the bottom of the unit.

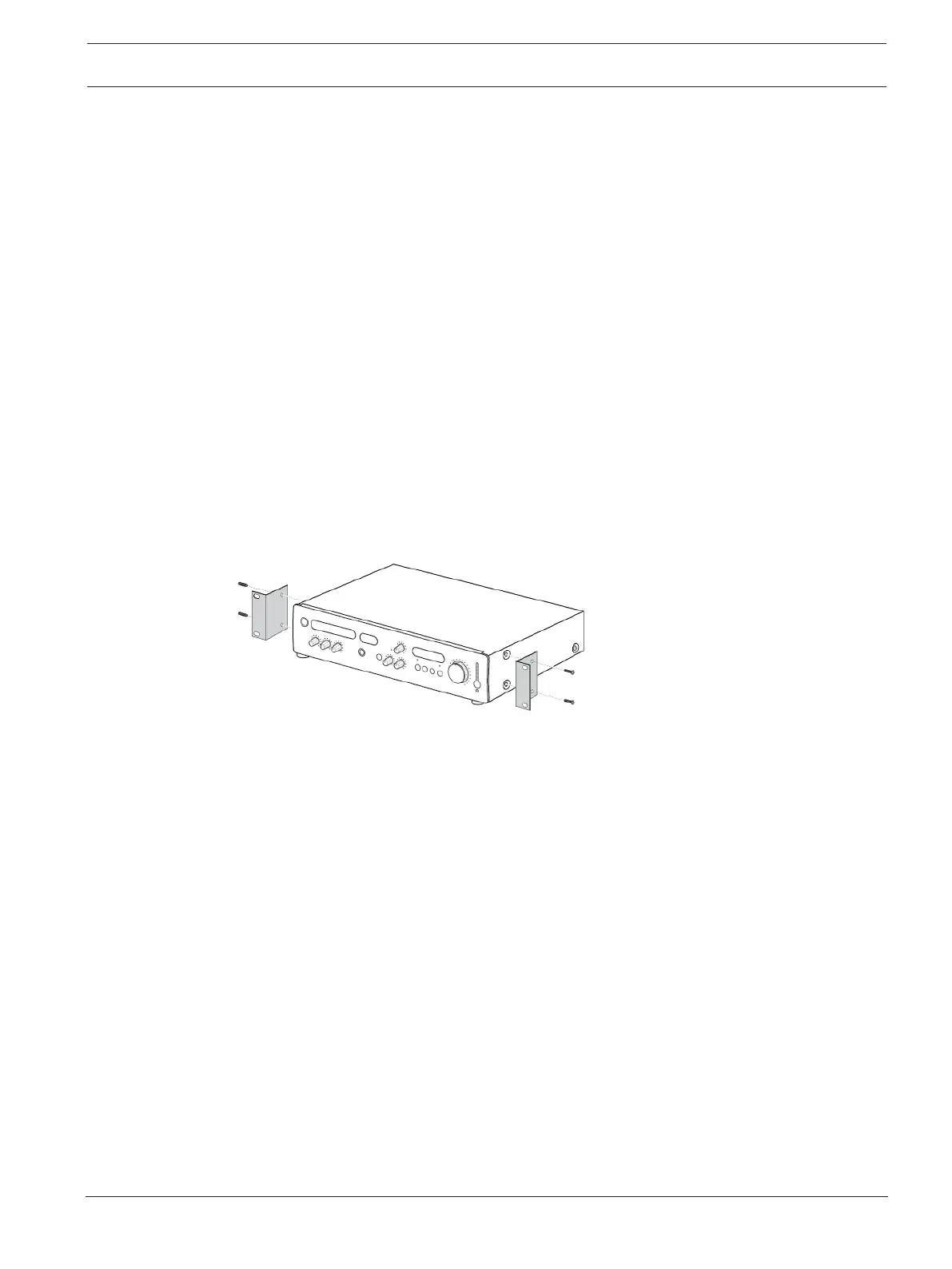

Figure4.1: 19” bracket and rack mounting
4.3 Check settings/configurations
1. Connect any additional equipment (see Connecting inputs, page 12, and Connecting
outputs, page 13).
2. Check the settings (see Configuration, page 14).
4.4 Connect unit to mains
1. Make sure the power switch, on the front of the unit, is set to Off.
2. Connect the power cord to the mains connector and plug it into the mains outlet.
