Bosch RA1171 User Manual

9

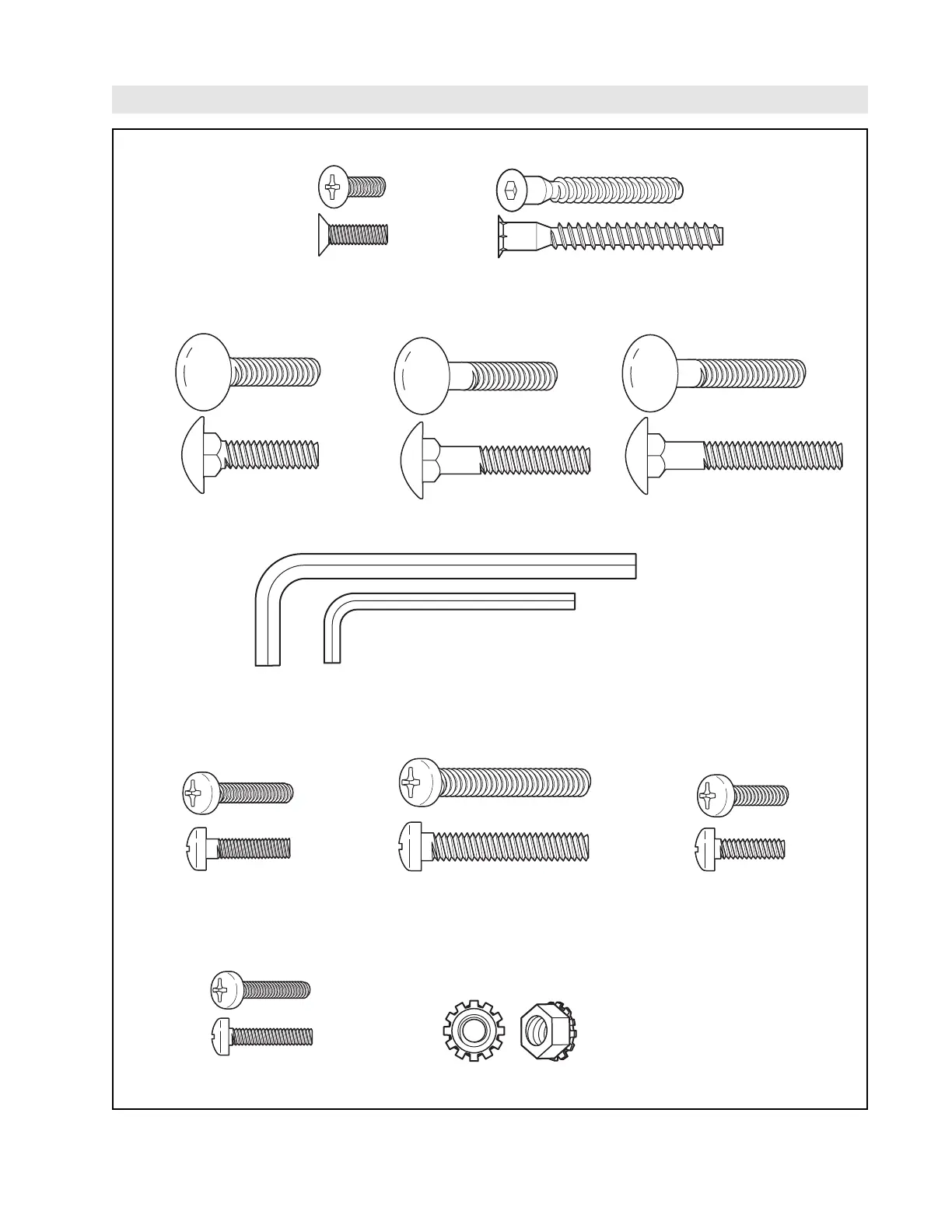

Parts List
(39) 1/4-20 x 1″
Carriage Bolt
(40) 1/4-20 x 1
1
⁄2″ Carriage Bolt
(38) Allen-Head Connector Screw
(42) 6mm Hex Key
(43) 4mm Hex Key
(37) #10-32 x 5/8″
Countersunk Phillips
Machine Screw
(41) 1/4-20 x 1
3
⁄4″ Carriage Bolt
(45) 1/4-20 x 1
1
⁄
2
″ Pan-Head
Phillips Machine Screw
(46) #10-24 x 3/4″ Pan-Head
Phillips Machine Screw
(44) #10-32 x 3/4″ Pan-Head
Phillips Machine Screw
(48) 1/4-20
KEPS Nut
(47) #8-32 x 3/4″ Pan-Head
Phillips Machine Screw

Bosch RA1171 Specifications

General

Type	Router Table
Brand	Bosch
Model	RA1171
Table Top Material	Aluminum
Table Height	14.5 inches
Dust Collection Ports	Yes
Dust Port Diameter	2-1/2 inches
Mounting Hardware Included	Yes
Table Size	25.5 x 14.5 inches
Fence System	Adjustable
Weight	30 pounds
Material	Aluminum
Dust Collection	2.5 In. Dust Port
