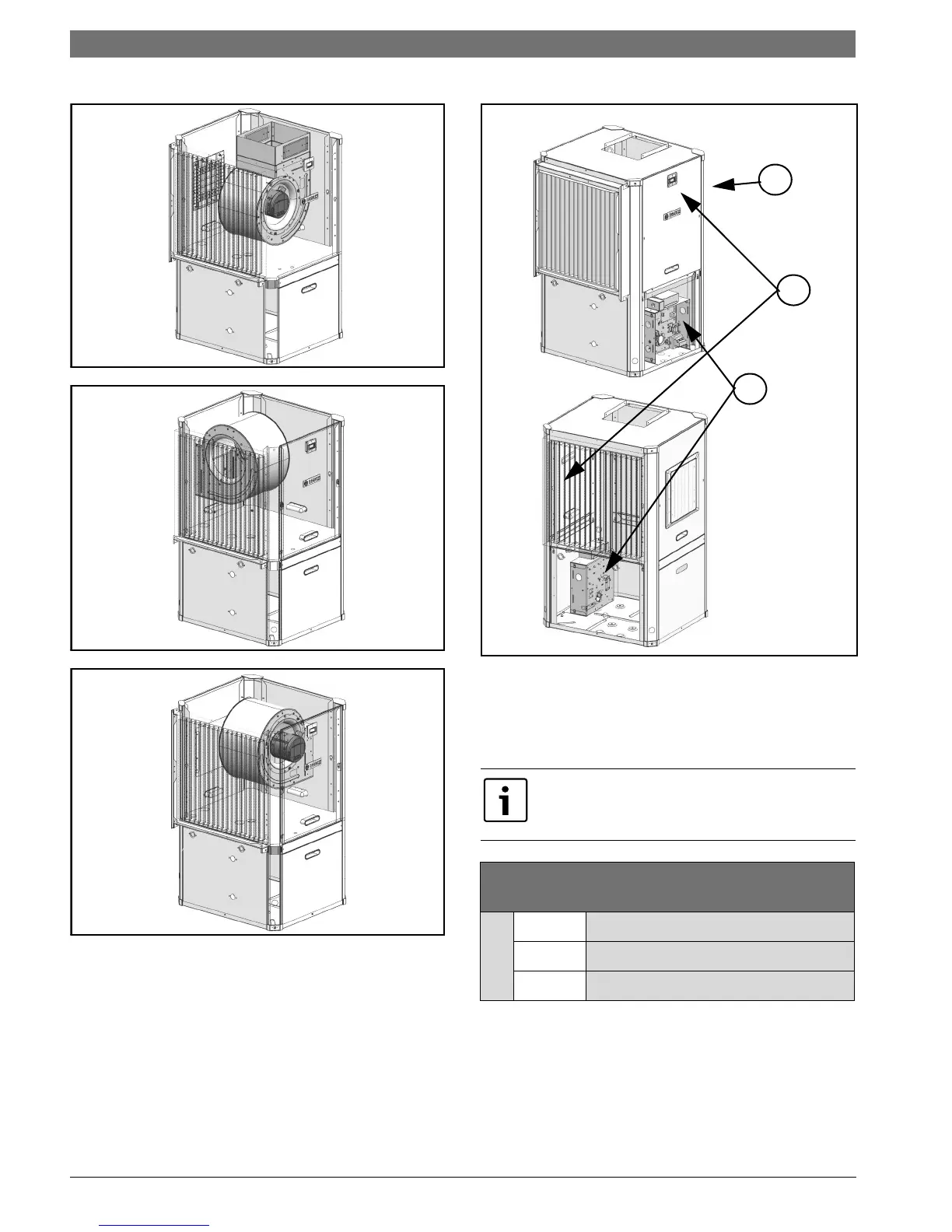

14 | Vertical Configurability
Figure # 38 Top Discharge (Default)
Figure # 39 Back Discharge
Figure # 40 Side Discharge
Figure # 41
[1] Logo/Front Panel
[2] Electrical Box
[3] Default Configuration (can be ordered as either
right or left hand return)
Internally mounted electric heat is only available
in Top Discharge configuration. See table below
for details
Blower Orientation and Electric Heat
Compatibility
Blower
Up Yes Internally or Duct Mounted
Back
Duct Mounted
Side
Duct Mounted
