SM Split CS Series Heat Pump

SM Split CS Series Heat Pump8733825873 (2020/05)

24 | Field-Installed Accessories

Subject to change without prior notice

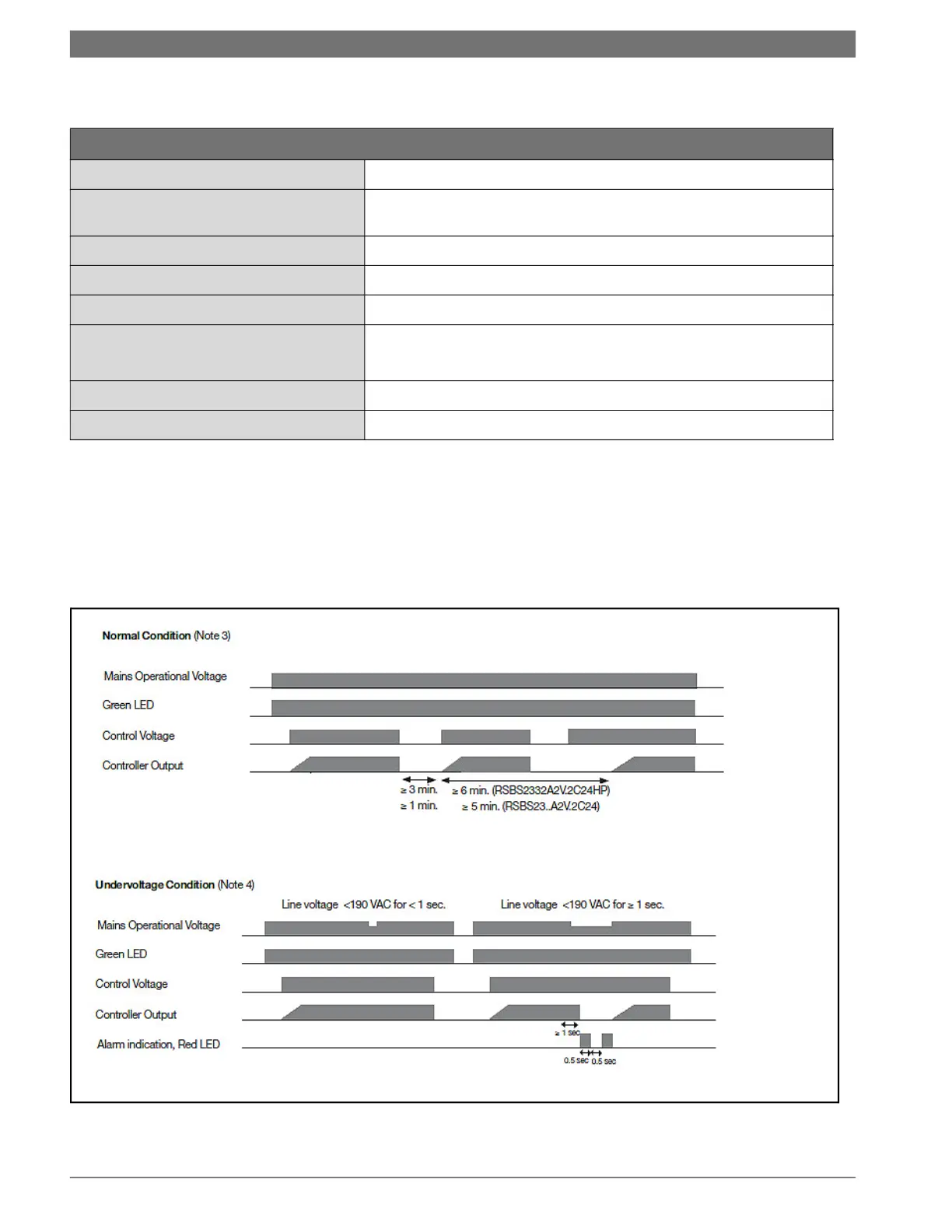

SmartStart Assist Specifications

Table 12 SmartStart Assist Specifications

SmartStart Assist Modes of Operations

Fig. 12 SmartStart Assist Modes of Operations (Normal and Undervoltage Condition)

SmartStart Assist Specifications

Rated Operational Voltage: 208/230VACrms +/- 15% 50-60 Hz

Environmental Operating Range: -4° to 149°F (-20° to 65°C); < 95% @ 40 C relative humidity,

non-condensing

Degree of Protection: IP20

Overvoltage: Category II

Operational Rated Current: 32 Amps

Max Starting Current:

Min Full Load Current:

80A ACrms

80A ACrms

Min time between starts: 6 minutes

Min time between stop to start: 3 minutes
