Bosch ZBR 42-3 A NG User Manual

Product Description
9
Greenstar – 6721822579 (2021/01)
3.6 Product dimensions and minimum clearances

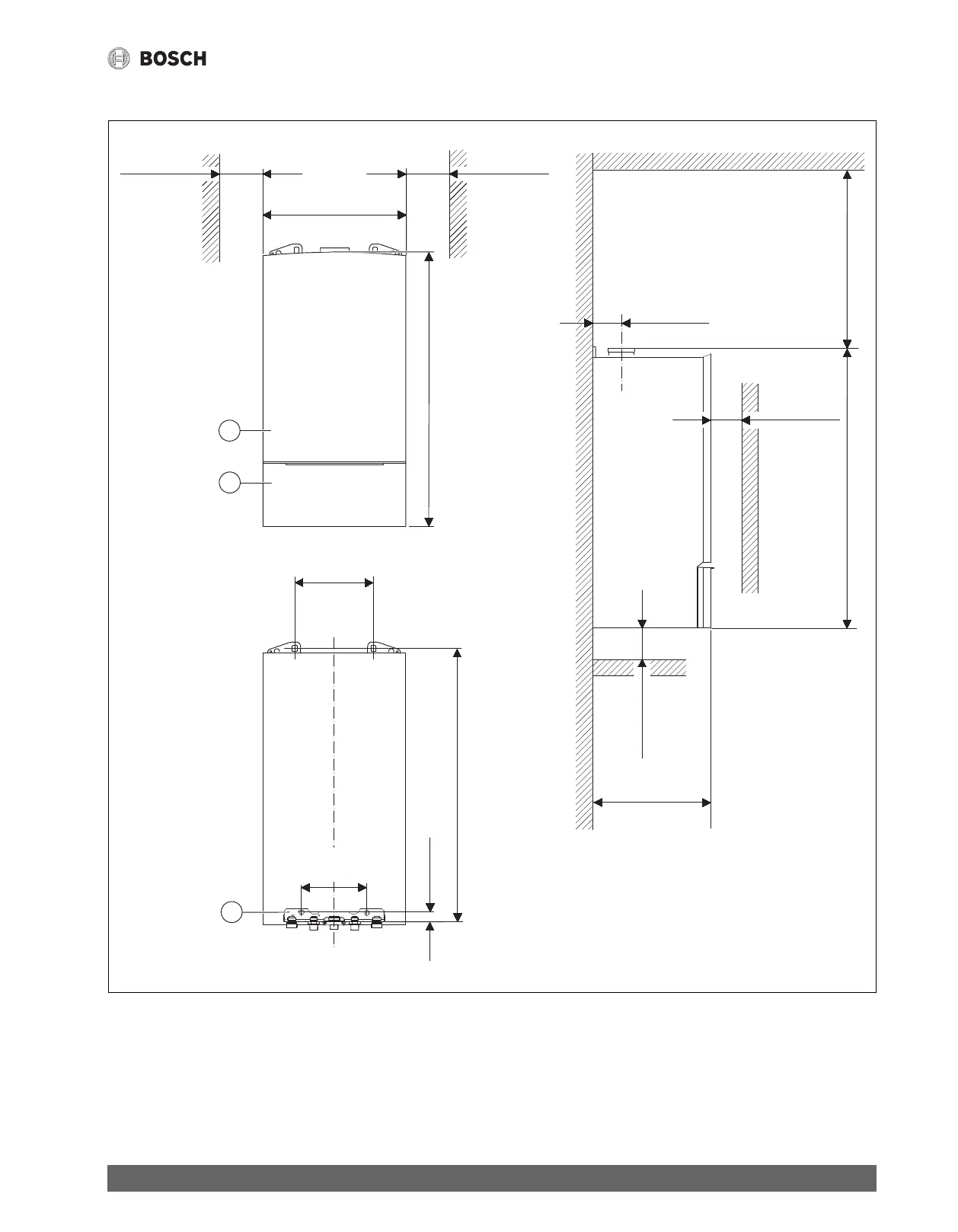

Fig. 4 Dimensions and minimum clearances (front view, rear view, side view)
[1] Outer jacket complete
[2] Front cover
[3] Hydraulics connection plate
(*) Zero clearance from combustibles permitted, but 4" (102 mm)
recommended for serviceability
(**) Distance to door, if mounted inside a closet
17-21/64"
(440 mm)
≥ 4" *
(102 mm) *
≥ 4" *
(102 mm) *
3-11/32"
(85 mm)
33-15/32"
(850 mm)
9-29/64"
(240 mm)
7-7/8 "
(200 mm)
33-27/64"
(849 mm)
1-3/16"
(30 mm)
13-57/64"
(353 mm)
33-15/16"
(862 mm)
≥ 4" *
(102 mm) *
≥ 15"
(381 mm)
3
1
2
0010004928-001
≥ 4" **
(102 mm) **

Bosch ZBR 42-3 A NG Specifications

General

Brand	Bosch
Model	ZBR 42-3 A NG
Category	Boiler
Language	English
