PART LIST

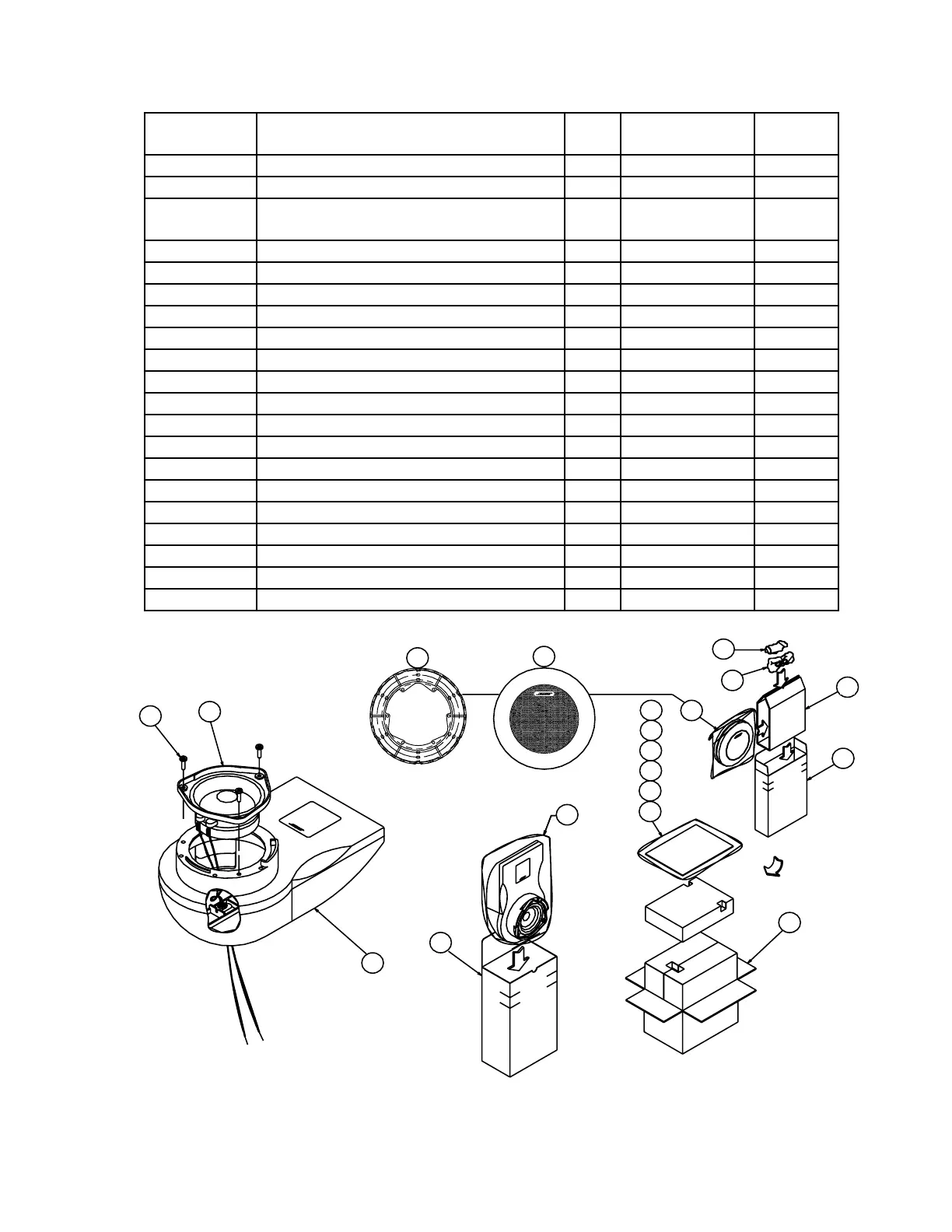

Figure 2. Parts Exploded View
2
3X
8
12
13
14
15
16
3
1
6
7
9
10
11
17
18
4
5
19
Item
Number
Description Qty Part
Number
Note
1 Enclosure, Ldspkr, Model 131™ 2 188195-001 1
2 Driver Assy, 4.5" 2 257948-001 10/2001
2 Driver Gasket, 4.5" 1 128407 not
shown
3 Screw, Tapp, 8-11x.75, pan, xrec 3 296495-012
4 Bag, Poly, 18"x12"x2" 1 175352
5 Carton, inner, Chipboard, 131 2 189730
6 Hardware kit 1 188198
7 Wire, 18/2 Zip Cord, BK, 20FT 2 130915
8 Grill, 8" Diameter 2 188193-001 2
9 Flange, Mounting 2 188192-001 2
10 Packing, Insert, 1 190505-001
11 Carton, Grill, Chipboard 1 189731
12 Manual, Owners 1 188201 3
13 Brochure, All Products 1 188898 3
14 Card, Info, Warranty, U.S. 1 181357 3
15 Card, Info, Warranty, Muti Lang 1 181460 3
16 Sheet, Warranty Service Stations 1 187981 3
17 Bag, Poly, Lit Kit 1 103351 3
18 Carton, Model 131 1 189732-001
19 Grille, Assy (Sold as pairs ) 1 188194 4
