Snap the grille in place on the mounting flange.
No hardware is needed to secure this part. You
are now finished with the assembly. Enjoy your
music system!
Place the template over the area where the speaker
is to be located. The round outer edge shows how
much room to allow for the grille. The long end is
used to judge the room needed behind the bulkhead.
There are two perforated circles in the template.
Snap out the larger one and mark the 7
1
⁄
8
inch (18
cm) hole with a metal scribing tool or pencil.
Installing Your Speakers From The Front Of The Bulkhead
If you cannot reach the mounting area from behind the bulkhead, you will have to
mount the speaker enclosure by inserting it through the front. To do this you will need
a 7
1
⁄
8
inch (18 cm) hole, the larger of the two perforated sections on your template.
CAUTION:
Determine whether any obstacles exist behind the mounting surface. To
be certain, contact your boat manufacturer or dealer. Also, be certain that the
enclosure will fit within the mounting area before drilling any holes.
Remove the speaker cone shield from the
enclosure.

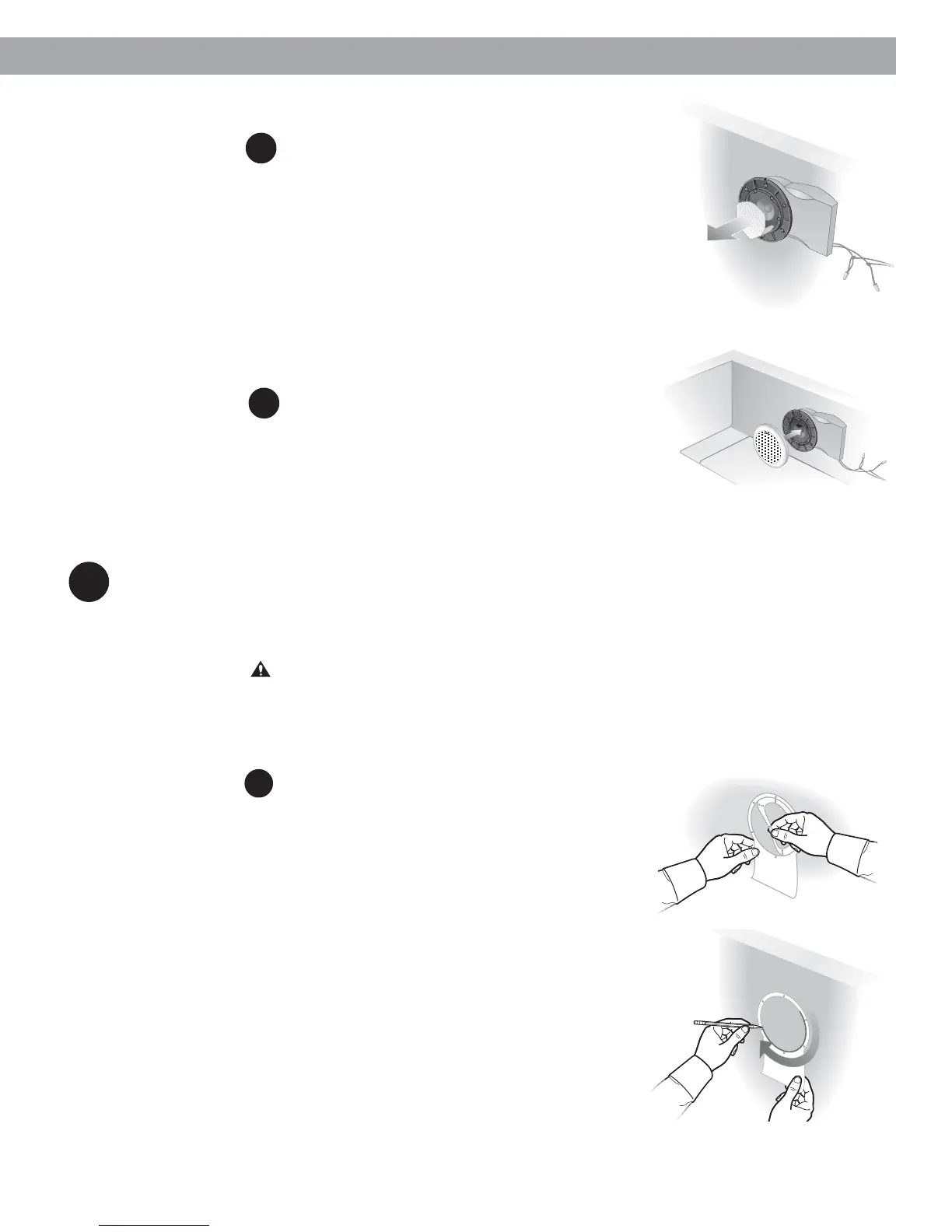

A 17
Installation from the front of the bulkhead
A 18
B 1
B
B
