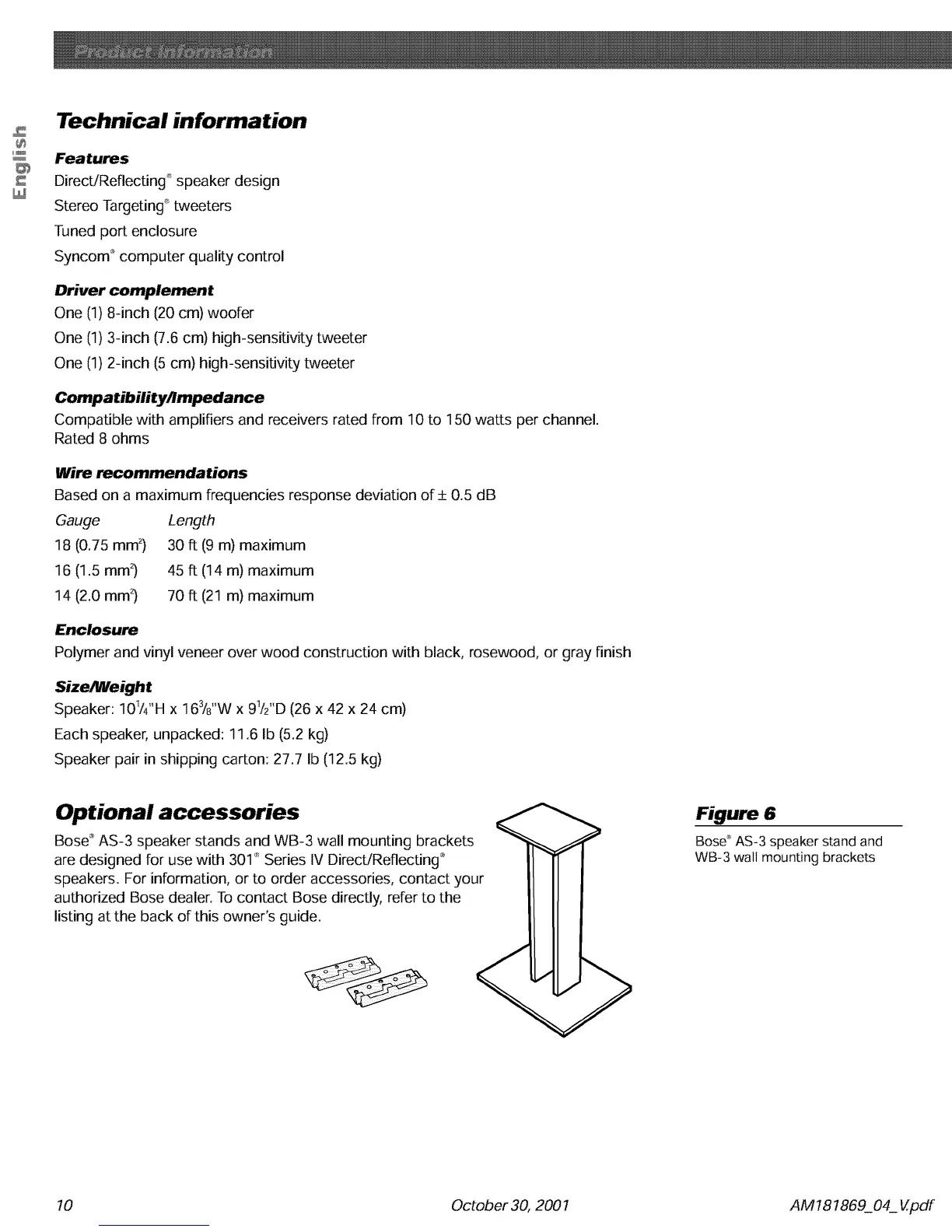

Technical information
Features
DirecdReflecting _speaker design
Stereo Targeting'_'tweeters
Tuned port enclosure
Syncom _computer quality control
Driver complement
One (1) 8-inch (20 cm) woofer
One (1) 3-inch (7.6 cm) high-sensitivity tweeter
One (1) 2-inch (5 cm) high-sensitivity tweeter
Compatibility/Impedance
Compatible with amplifiers and receivers rated from 10 to 150 watts per channel.
Rated 8 ohms
Wire recommendations
Based on a maximum frequencies response deviation of + 0.5 dB
Gauge Length
18 (0.75 mm2) 30 ft (9 m) maximum
16 (1.5 mm2) 45 ft (14 m) maximum
14 (2.0 mm2) 70 ft (21 m) maximum
Enclosure
Polymer and vinyl veneer over wood construction with black, rosewood, or gray finish
Size/Weight
Speaker: 101/4"Hx 163&"Wx 91/z"D(26 x 42 x 24 cm)
Each speaker, unpacked: 11.6 Ib (5.2 kg)
Speaker pair in shipping carton: 27.7 Ib (12.5 kg)
Optional accessories
Bose AS-3 speaker stands and WB-3 wall mounting brackets
are designed for use with 301 Series IV DirectJReflecting II rl I
speakers. For information, or to order accessories, contact your JJ II I
authorized Bose dealer. To contact Bose directly, refer to the JJ II I
listing at the back of this owner's guide. ,,_1 I I
Figure 6
Bose_AS-3 speaker stand and
WB-3 wall mounting brackets
10 October 30, 2001 AM181869_04_ V,pdf
