Bose 302 A Service Manual

7
MAIN PART LIST

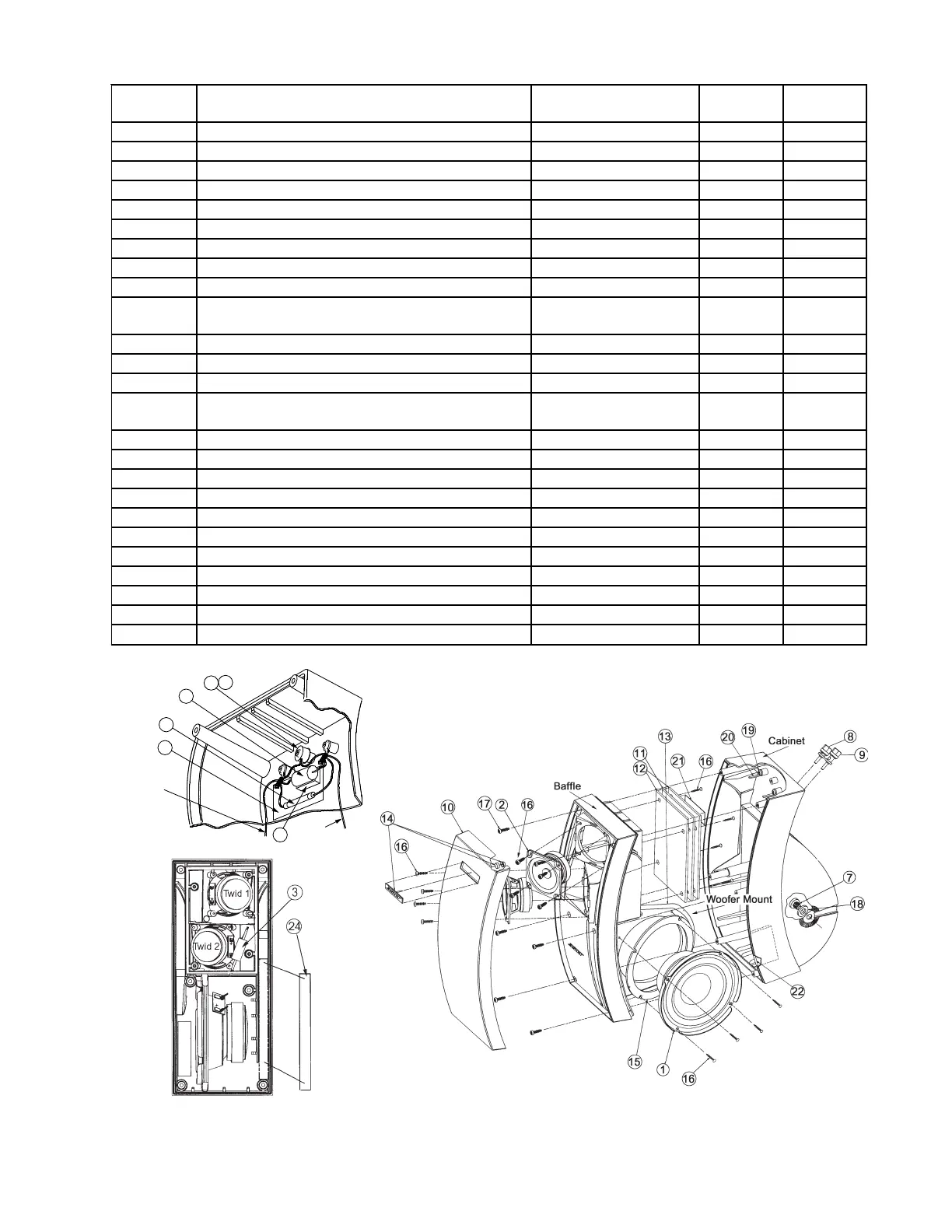

Figure 4. Exploded View
4
25
5
23
6
21
Red wire
(-) Woofer
(-) Terminal
Green wire
(-) Twid 2
Item
Number
Description Part Number Qty Note
1 WOOFER, 5.25", ENVIRONMENTAL 289780-001 1
2 TWIDDLER
TM
DRIVER, ENVIROMENTAL 289783-001 2
3 CROSSOVER ASSY, 22UF 291731-002 1
4 INDUCTOR, 1.5mH, 0.8 OHM, FERRITE 147196 1
5 CAPACITOR, BIPOLAR, 15uF 291087-001 1
6 RESISTOR, WW, 5W, 10%, 11.1 OHM 125605-110 1
7 NUT, INSERT 250818 2
8 CONNECTOR, ENVIRONMENTAL, BLACK 250815-01 1
9 CONNECTOR, ENVIRONMENTAL, RED 250815-02 1
10 GRILLE, ALUMINUM, BLACK
GRILLE, ALUMINUM, WHITE
250804-11
250804-12
1
11 PANEL, SEALING, TWIDDLER DRIVER 250820 1
12 FOAM TAPE GASKET 250807 1
13 FOAM TAPE GASKET, WOOFER MOUNT 250808 1
14 LOGO, BLACK CABINET
LOGO, WHITE CABINET
250806-03
250806-04
1
15 GASKET, 134mm, RD, ADH BACKED 290315-001 1
16 SCREW, TAPP, 8-11X.5, PAN, ASY, SQ 290306-08 17
17 SCREW, TAPP, 8-11X1.0, PAN, ASY, SQ 290306-16 7
18 GASKET .725" ROUND 293356-001 2
19 SCREW, TAPP, 8x3/8, HEX W, SLOT 290304-06 2
20 CONN, TERM, WIRE WRAP, 1 POS, FEM 118008 2
21 TAPE, FOIL 255912 2
22 TAPE, FOAM 255911 1
23 TAPE, FOAM 118223 2
24 TAPE, FILTER FOAM 255910 1
25 SCREW 290305-16 1
