Bose Acoustimass 3 Series User Manual

AM252171_02_V.pdf October 22, 2001 7
4. Connect the free end of the left (L) INPUTS cable to the LEFT speaker terminals of your
amplifier or receiver. Connect the marked wire to the positive (+) terminal and the plain
wire to the negative (–) terminal.
5. Connect the free end of the right (R) INPUTS cable to the RIGHT speaker terminals of your
amplifier or receiver. Connect the marked wire to the positive (+) terminal and the plain
wire to the negative (–) terminal.
CAUTION: Before you plug in your receiver or amplifier, make sure that no strands of wire
from any terminal are brushing against any other terminal. Such “bridged” wires create short
circuits which can damage your receiver or amplifier.

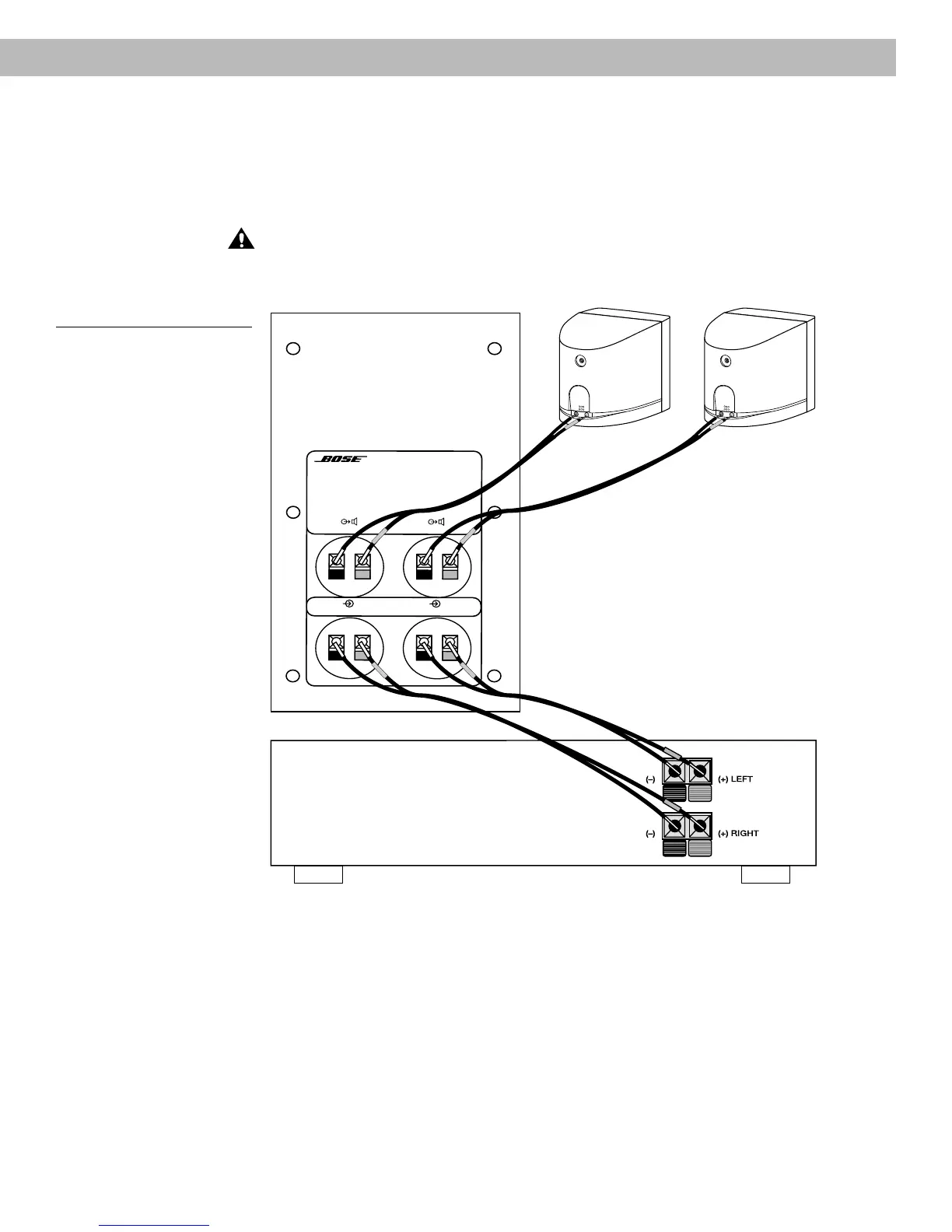

Figure 4
Completed connections
Setting Up Your Acoustimass
®
3 Speaker System
Checking your connections
To avoid damaging your speakers, check all connections and correct any problems before
plugging in and turning on the amplifier or receiver. Make sure the cube speakers are con-
nected to the module and not directly to the amplifier or receiver.
– R+
– L+
O
U
T
P
U
T
S
T
O
C
U
B
E
S
P
E
A
K
E
R
S
– R+
– L+
IN
P
U
T
S
F
R
O
M
A
M
P
O
R
R
E
C
E
IV
E
R

Bose Acoustimass 3 Series Specifications

General

Brand	Bose
Model	Acoustimass 3 Series
Category	Speaker System
Language	English
