Bose Companion 2 Series II User Manual

SETTING UP
8
EnglishFrançais Español

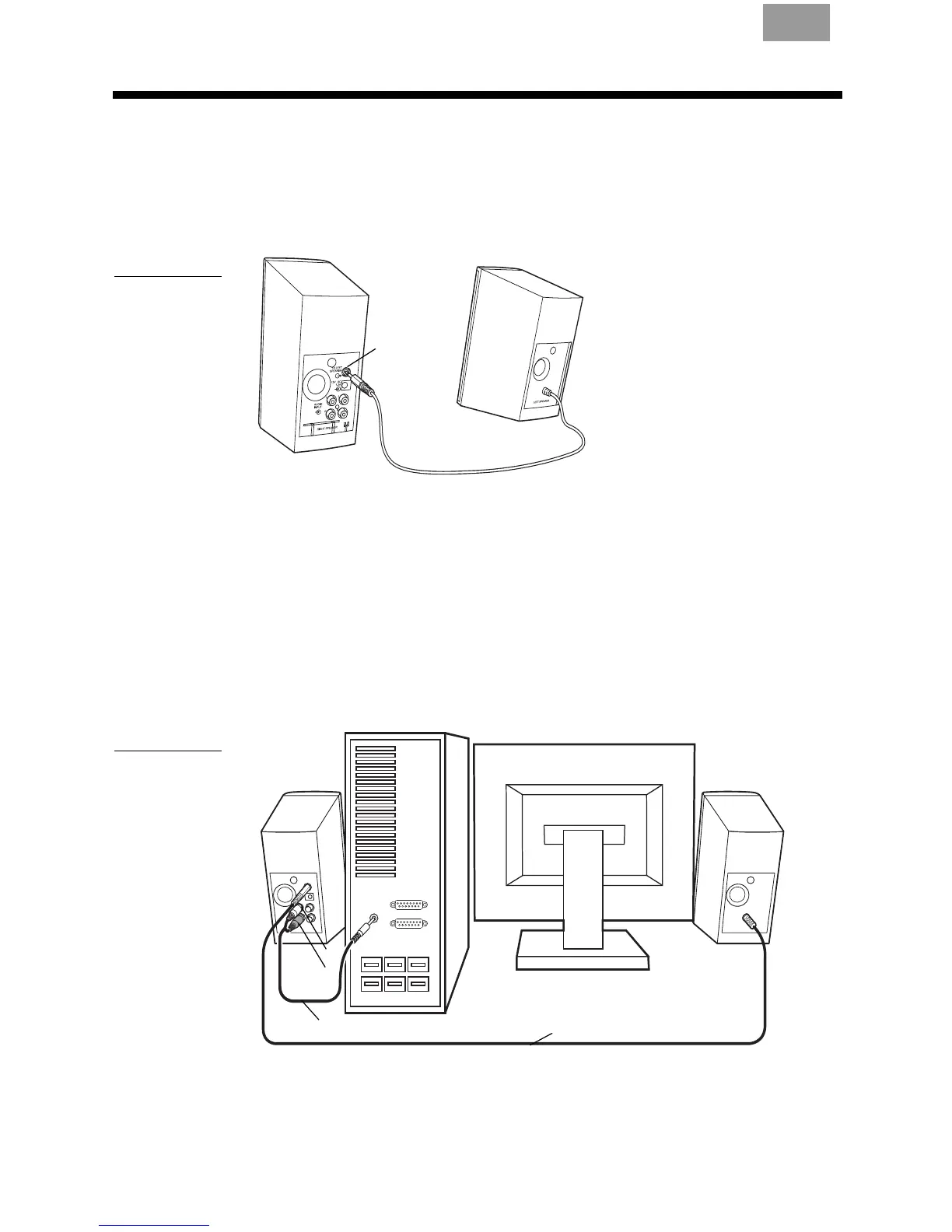

Making connections
A speaker cable is attached to the rear of the LEFT speaker. Insert the
free end of this cable into the jack marked TO LEFT SPEAKER on the
back of the RIGHT speaker (Figure 3).
Figure 3
Speaker cable
connection
Speaker cable
LEFT
speaker
RIGHT
speaker
TO LEFT
SPEAKER
Connecting to your computer
Use the audio cable to make this connection.
• Insert the stereo mini plug at one end of the cable into the mini audio
out jack on your computer.
•
Insert the two plugs at the other end of the cable into one pair of the
AUDIO INPUT jacks on the
ri
ght speaker.
1. Insert the white RCA plug into the white jack labeled L.
2. Insert the red RCA plug into the red jack labeled R.
Figure 4
Connection to
the computer
LEFT
speaker
RIGHT
speaker
Computer
Speaker cable
RCA audio input cable
R
L

Bose Companion 2 Series II Specifications

General

Brand	Bose
Model	Companion 2 Series II
Category	Speakers
Language	English
