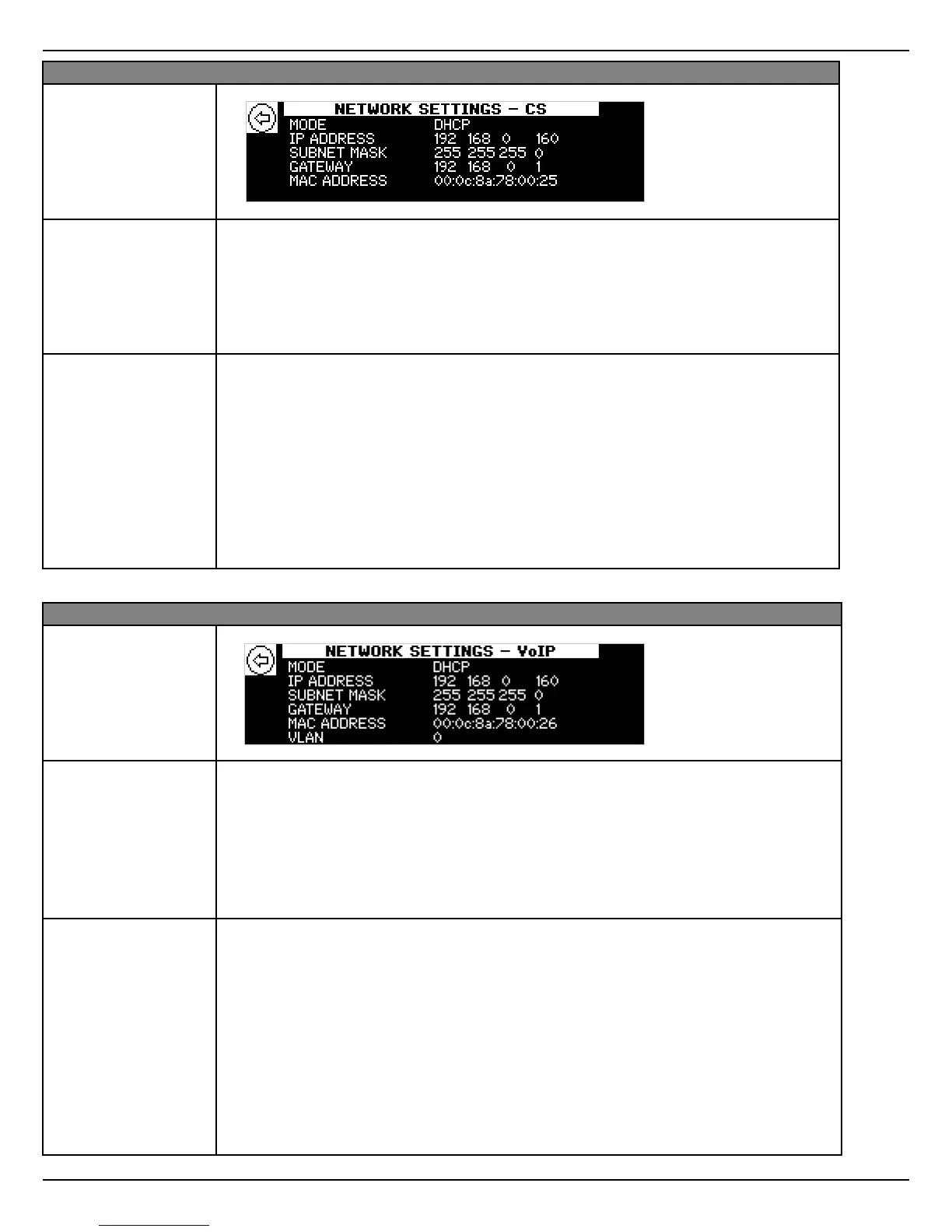

CONFIG > CS NETW SETTINGS
Description CS NETW SETTINGS allows you to display and edit the following ControlSpace network settings:
• MODE: Select DHCP or STATIC
• IP ADDRESS: Display and edit the device’s IP address.
• SUBNET MASK: Display and edit the subnet mask address.
• GATEWAY: Display and edit the gateway address.
• MAC ADDRESS: Display the device’s MAC address.
Available Controls To select the MODE, turn the knob until an arrow appears in the row. Press the knob to activate
editing mode. Turn the knob to select between DHCP and STATIC. Press the knob to set.
To change the IP address, subnet mask, or gateway: Turn the knob until an arrow appears in the
appropriate row. Press the knob to activate editing mode. Turn the knob to change the number in
the first address block. Press the knob to set the address. Then turn the knob to move to the next
address block, and repeat.
The MAC address is for display only, and cannot be edited.
To return to the CONFIG menu, turn the knob to highlight the arrow in the top-left corner of the
screen, and press the knob. You will be prompted to save changes. If you choose No (the default),
the changes you made on this screen will not be saved to the device. If you choose YES, the
changes will be saved, and the device will automatically reboot. To select an option, turn the knob
to highlight your choice, then press the knob to select.
CONFIG > VoIP NETW SETTINGS
Description VoIP NETW SETTINGS allows you to display and edit the following VoIP network settings:
• MODE: Select DHCP or STATIC
• IP ADDRESS: Display and edit the IP address for the VoIP card inside the EX-1280C.
• SUBNET MASK: Display and edit the subnet mask address.
• GATEWAY: Display and edit the gateway address.
• MAC ADDRESS: Display the MAC address for the VoIP card inside the EX-1280C.
• VLAN: Display and edit the optional VLAN number.
Available Controls To select the MODE, turn the knob until an arrow appears in the row. Press the knob to activate
editing mode. Turn the knob to select between DHCP and STATIC. Press the knob to set.
To change the IP address, subnet mask, or gateway: Turn the knob until an arrow appears in the
appropriate row. Press the knob to activate editing mode. Turn the knob to change the number in
the first address block. Press the knob to set the address. Then turn the knob to move to the next
address block, and repeat.
The MAC address is for display only, and cannot be edited.
To return to the CONFIG menu, turn the knob to highlight the arrow in the top-left corner of the
screen, and press the knob.
You will be prompted to save changes. If you choose No (the default), the changes you made on
this screen will not be saved to the device. If you choose YES, the changes will be saved, and the
device will automatically reboot. To select an option, turn the knob to highlight your choice, then
press the knob to select.
