Design Guide - 20
Sample EdgeMax Conference Room Appplications
Sample EdgeMax Conference Room Applications
The unique coverage performance of EdgeMax loudspeakers makes them ideal solution in
conference room applications, for both speech and music reproduction. Mounting an EM180
directly above a video screen provides excellent speech reproduction and localization for
video conferencing applications, while the addition of EM180 loudspeakers along the side
walls of larger rooms enhances both video and audio conferencing.
Small Conference Rooms
For smaller conference rooms with dimensions less than 3 x 4.5 m (10 x 15’), with a ceiling
height of 2.7 – 3.7 m (9 - 12’), a single EM180 is sucient above the main video screen location
for both audio and video conferencing. If stereo playback of program material is desired two
EM90s can be installed in the two corners to the left and right of the video screen location.
Note that stereo playback can also be used in other applications, including background and
foreground music, when room dimensions allow similar overlap.
Medium Conference Rooms
For medium and large-sized conference rooms with dimensions greater than 3 x 4.5 m (10
x 15’), with a ceiling height of 2.7 – 3.7 m (9 - 12’), a single EM180 can be used above the
main video screen location for both audio and video conferencing, and additional EM180s
are placed behind the conferencing table using the recommended loudspeaker spacing
dimensions for a room’s ceiling height.
Small Conference Room
EM180 Mounted Above Screen
3.0 m | 10 ft ceiling
(4.6 m | 15 ft)
Small Conference Room
EM90s Mounted In Corners
3.0 m | 10 ft ceiling
(4.6 m | 15 ft)
(3 m | 10 ft)
EM
9
0
E
M
9
0
EM
1
8
0

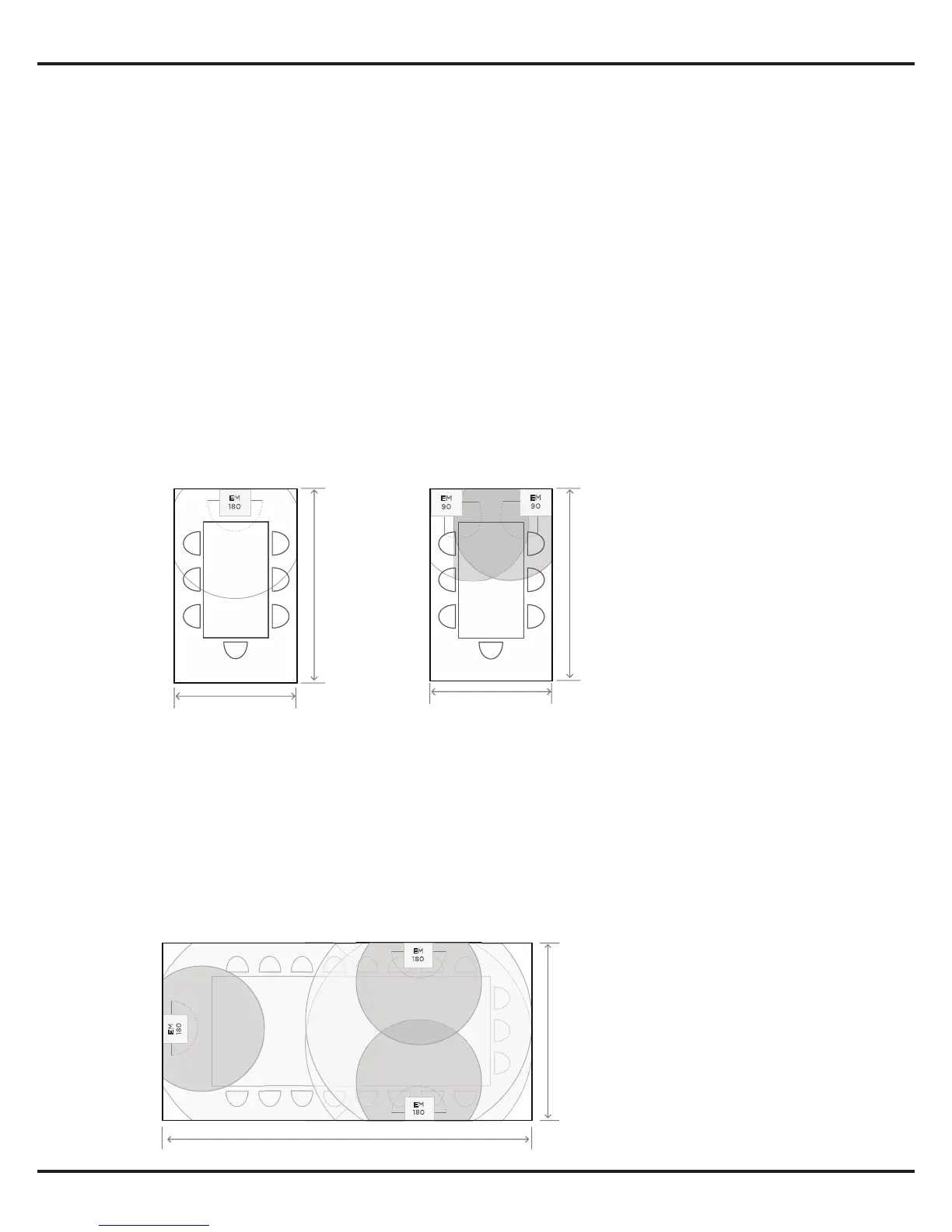

Figure 13. In smaller
conference rooms a single
EM180 can be used above the
screen location, or two EM90s
in the corners can provide both
speech and program material
reinforcement.
Medium Conference Room
EM180 Mounted Along Perimeter
3.0 m | 10 ft ceiling
(7.6 m | 25 ft)
(4.5 m | 15 ft)
EM
180
EM
18
0
EM
18
0
Figure 14. In medium sized
conference rooms a single
EM180 is used above the screen
location, and additional EM180s
along the edges provide
reinforcement for audio and
video conferencing.
