Controls and Indicators
Media center controls and indicators
The media center has a control panel and CD tray located under the front door. The informa-
tion display window fills the right half of the front (Figure 1).

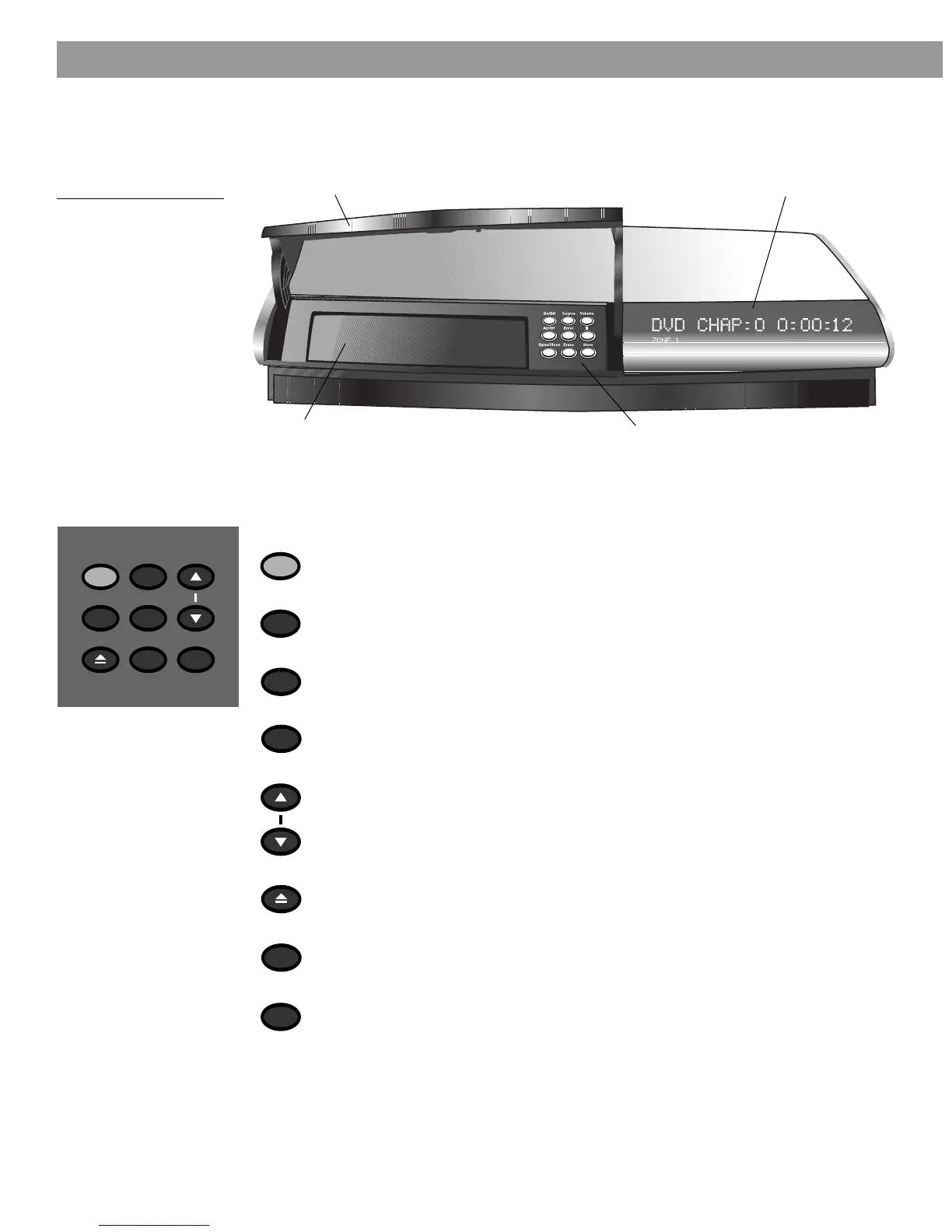

Figure 1
Media center front
Media center control buttons
The Media Center has nine control buttons located under the front cover of the media center.
Front panel door - lift up to open
Control button panel
Display window
DVD/CD tray
On/Off Source Volume
Enter
Erase
Store
All Off
Open/Close
Turns the system on or off in zone 1.
Turns off the system and all connected speakers (all zones and rooms).
Steps through the available source selections.
Enters submenus or submits settings, choices or entries to the system.
Pressing ▲ raises the volume of the system and unmutes the current
source, if muted. Pressing ▼ lowers the volume of the system; if the
current source is muted, it stays muted.
Opens/closes the disc tray.
Removes a radio station preset from the system.
Stores a radio station preset.
On/Off
All Off
Source
Enter
Volume
Open/Close
Erase
Store
