Product Information
Technical information
Speaker system power rating
USA/Canada: 120V~ 50/60 Hz 350W
Europe/Australia: 220-240V~ 50/60 Hz 350W
Dual voltage: 115/230V~ 50/60 Hz 350W
Multi-room interface
power pack power rating
USA/Canada: 120V~ 60 Hz 25VA
Europe: 230V~ 50 Hz 25VA
Australia: 240V~ 50 Hz 25VA
Dual voltage: 120V~ 60 Hz 25VA and
230V~ 50 Hz 25VA
Multi-room interface inputs
TAPE IN: 2Vrms, maximum
AUX, VIDEO 1, VIDEO 2: 2Vrms, maximum
FM antenna: 75Ω
AM antenna: 12µH
Power: 12V~, 1.0A
Multi-room interface outputs
RECORD OUT: fixed audio
ROOM A, B, C, D: auto-adjusting fixed or
variable audio
SERIAL DATA: for future use

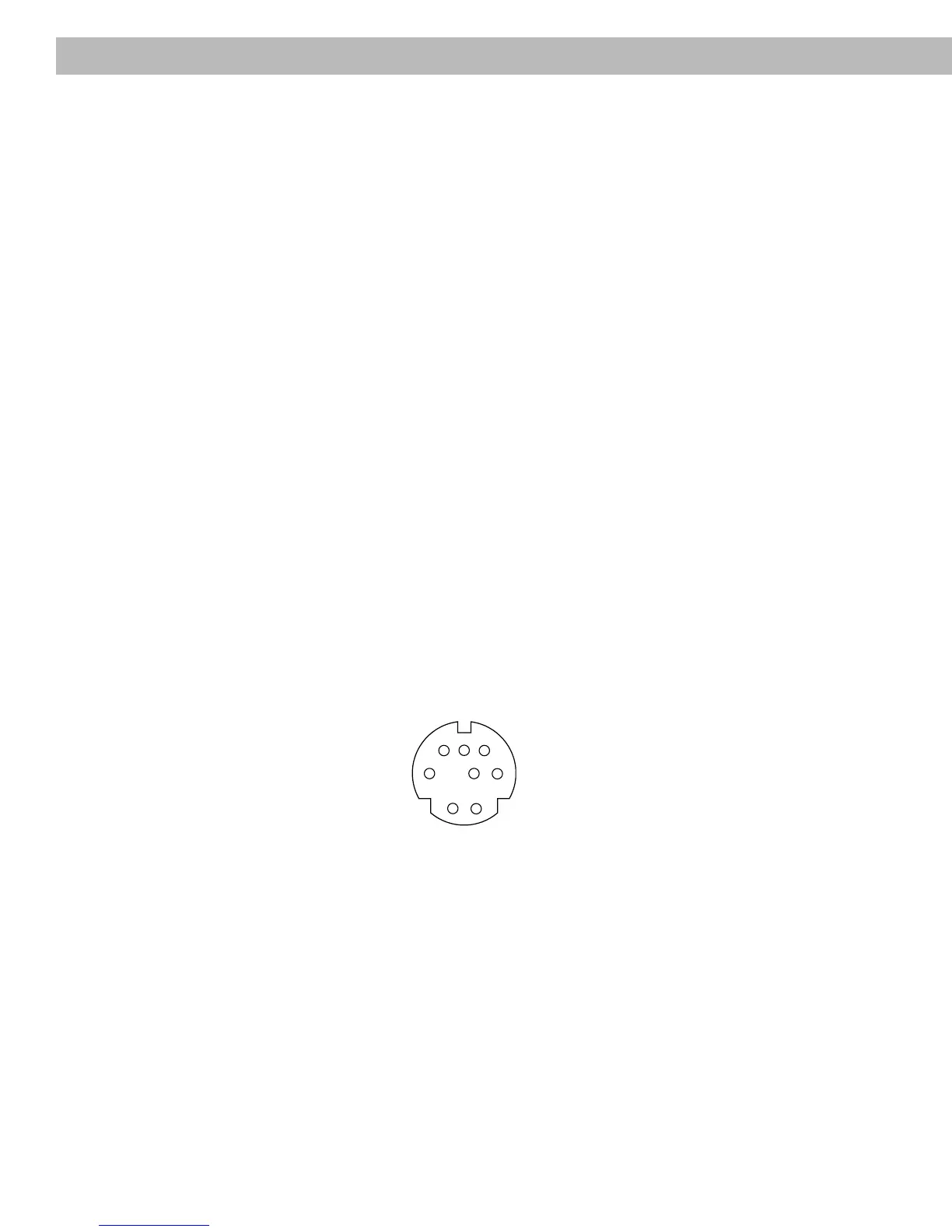

ROOM connector pinouts:
1: left audio
2: right audio
3: left audio
4: right audio
5: audio ground
6: +10V control line
7: SMART SPEAKER data
8: control line ground
Personal™ music center
Power: 6V DC (1.5V x 4 AAA)
Range: 65 feet (20 m)
876
543
21
Dimensions
Personal music center
8.8" W x 4.1" D x 1.4" H
(22.4 cm x 10.5 cm x 3.6 cm)
Multi-room interface
7.4" W x 4.0" D x 2.1" H
(18.8 cm x 10.0 cm x 5.5 cm)
CD changer
15.5" W x 8.0" D x 2.6" H
(39.4 cm x 20.3 cm x 6.6 cm)
Jewel Cube
®
speaker
2.2" W x 3.2" D x 4.4" H
(5.6 cm x 8.1 cm x 11.2 cm)
Acoustimass
®
module
23.3" W x 7.5" D x 14.0" H
(59.0 cm x 19.0 cm x 35.5 cm)
Weights
Personal music center
.8 lb (.4 kg)
Multi-room interface
.8 lb (.4 kg)
CD changer
5.9 lb (2.7 kg)
Jewel Cube speaker
1 lb (0.5 kg)
Acoustimass module
33 lb (15.0 kg)
Total shipping weight
54 lb (24.5 kg)
Finish
Personal music center
Polymer, painted
Multi-room interface
Polymer
CD changer
Aluminum
Jewel Cube speakers
Polymer, painted
Acoustimass module
Vinyl veneer, Polymer
Accessories
To find out about mounting brackets, stands, CD magazines, and connecting additional
Bose
®
powered loudspeakers, contact your Bose dealer. Or call Bose directly (see inside
back cover for phone numbers).
