INSTALLATION
Notes:
y Choose the mounting location where
the unit will not interfere with the
normal driving function of the driver.
y Before finally installing the unit,
connect the wiring temporarily and
make sure it is all connected up
properly and the unit and the system
work properly.
y Use only the parts included with the
unit to ensure proper installation. The
use of unauthorized parts can cause
malfunctions.
y Consult with your nearest dealer if
installation requires the drilling of holes
or other modifications of the vehicle.
y Install the unit where it does not get in
the driver’s way and cannot injure the
passenger.
y If installation angel exceeds 30°from
horizontal, the unit might not give its
optimum performance.
y
Avoid installing the unit where it would
be subject to high temperature, such
as from direct sunlig
ht, or from hot air,
from the heater, or
where it would be
subject to dust, dirt or excessive
vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either
from “Front” (conventional DIN
Front-mount) or “Rear” (DIN Rear-mount
installation, utilizing threaded screw holes
at the sides of the unit chassis). For details,
refer to the following illustrated installation
methods.

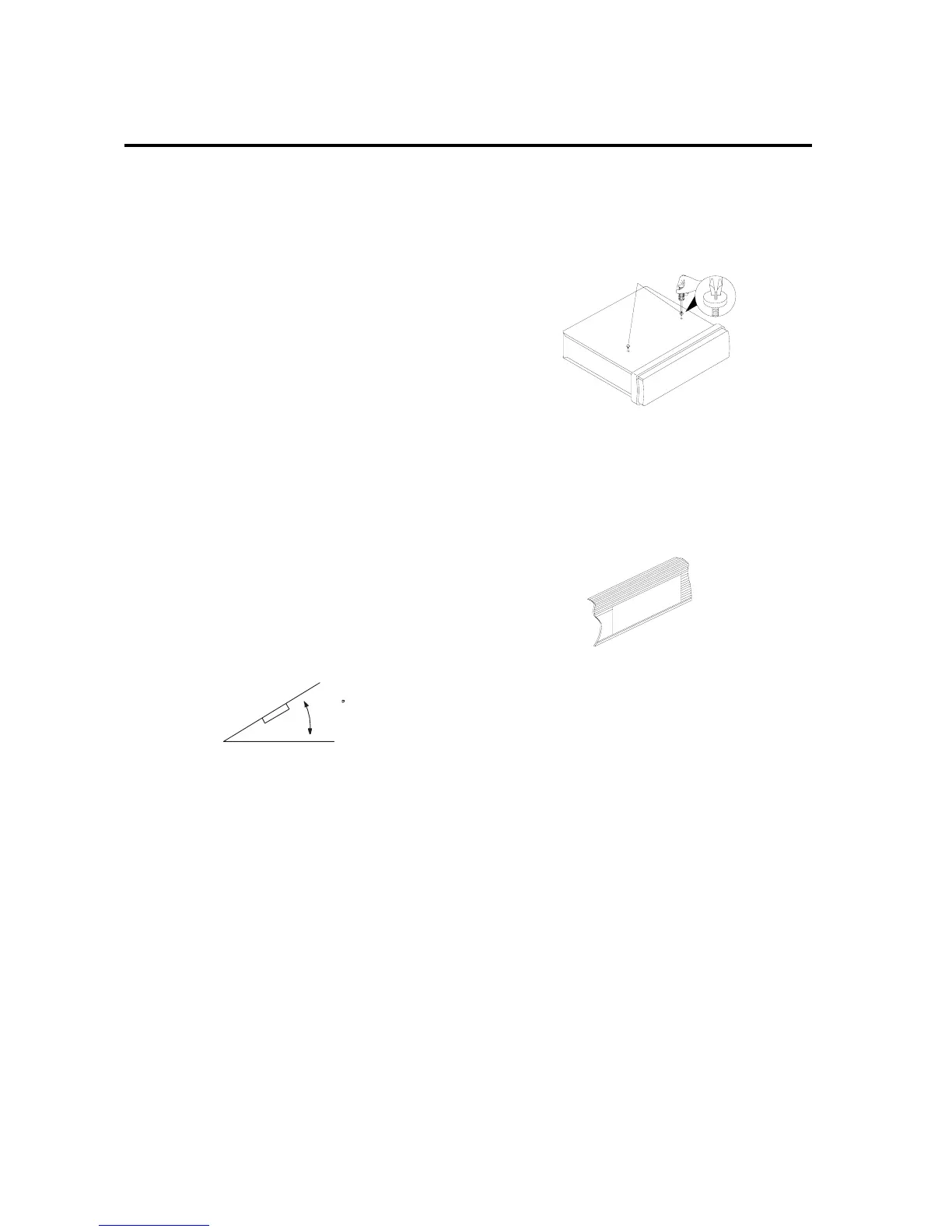

TAKE OUT SCREW BEFORE INSTALLATION
Before Installing the unit, please remove the
two screws.
DIN FRONT-MOUNT (Method A)
Installation Opening
This unit can be installed in any dashboard
having an opening as shown below:
Installing the unit
Be sure you test all connections first, and
then follow these steps to install the unit.
1. Make sure the ignition is turned off, and
then disconnect the cable from the
vehicle battery’s negative (-) terminal.
2. Disconnect the wire harness and the
antenna.
3. Press the release
button on the front
panel and remove the control panel
(see the steps of “r
emoving the front
panel”).
4. Lift the top of the outer trim ring then
pull it out to remove it.
5. The two supplied keys release tabs
inside the unit’s sleeve so you can
remove it. Insert the keys as far as
30
Take out screw
before installation.
To Next Page
